Inkbird IBS-TH3-WIFI Manual

Inkbird IBS-TH3-WIFI Manual

Temperature humidity sensor

Advertisement

Quick Links

TEMPERATURE HUMIDITY SENSOR
>CAPTEUR DE TEMPÉRATURE ET D'HUMIDITÉ
Page1&2

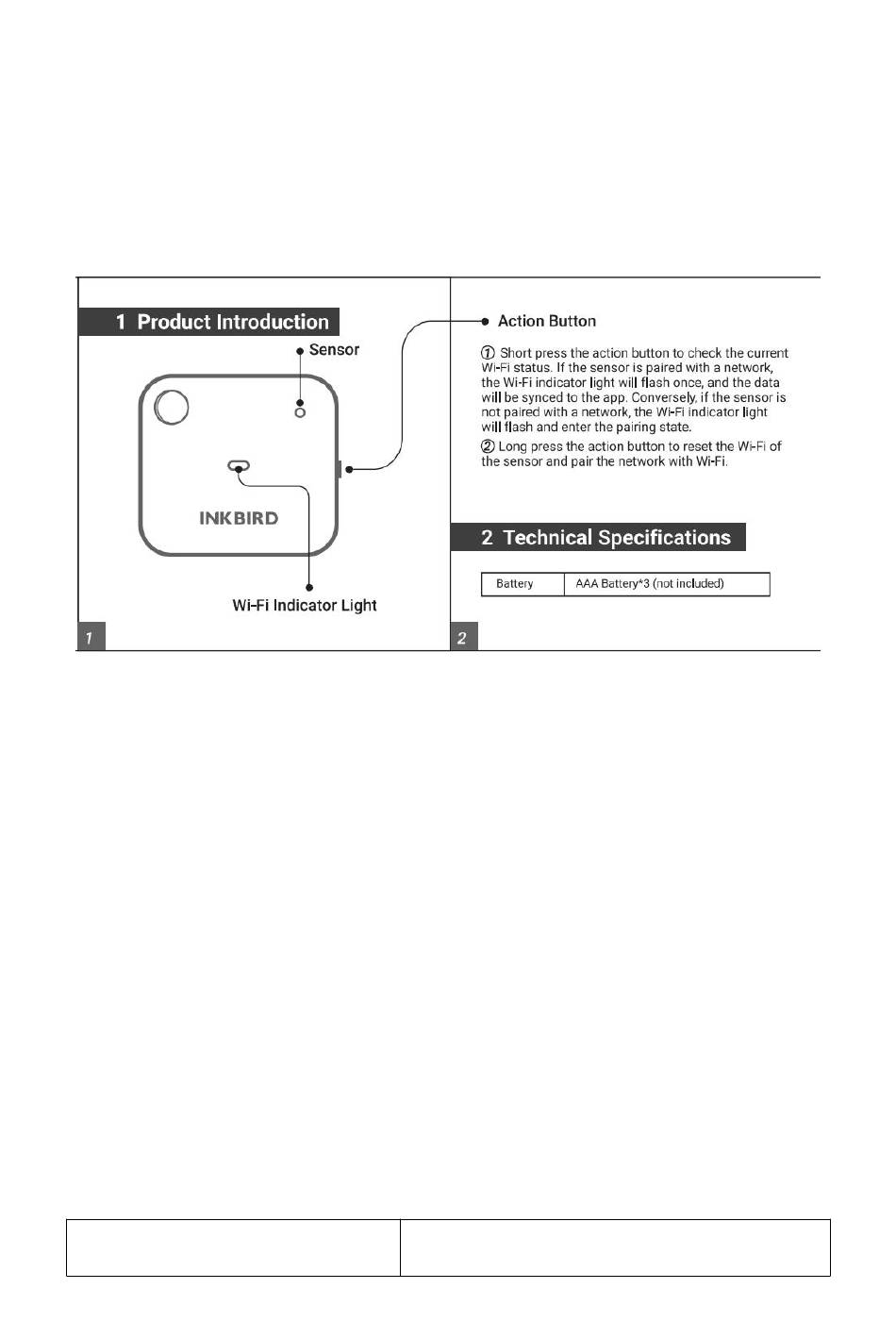

1 Product
Introduction>Introduction du Produit
Sensor>Capteur
● Wi-Fi Indicator
Light>Voyant lumineux Wi-Fi
● Action
Button>Bouton Action
① Short press the action button to check the current Wi-Fi status. If the sensor is
paired with a network, the Wi-Fi indicator light will flash once, and the data will be
synced to the app. Conversely, if the sensor is not paired with a network, the Wi-Fi
indicator light will flash and enter the pairing state.
>Appuyez brièvement sur le bouton action pour vérifier l'état actuel du Wi-Fi. Si le
capteur est apparié avec un réseau, le voyant Wi-Fi clignote une fois et les données
sont synchronisées avec l'application. À l'inverse, si le capteur n'est pas apparié avec
un réseau, le voyant Wi-Fi clignote et passe en état d'appairage.
②Long press the action button to reset the Wi-Fi of the sensor and pair the
network with Wi-Fi.
>Appuyez longuement sur le bouton action pour réinitialiser le Wi-Fi du capteur et
appairer le réseau avec le Wi-Fi.
2 Technical
Specifications>Spécifications Techniques
Battery
>Batterie
IBS-TH3-WIFI
AAA Battery*3(not included)
>Batterie AAA*3 (non incluse)

Advertisement

loading
Need help?

Need help?

Do you have a question about the IBS-TH3-WIFI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Inkbird IBS-TH3-WIFI

  • Page 1 TEMPERATURE HUMIDITY SENSOR >CAPTEUR DE TEMPÉRATURE ET D'HUMIDITÉ IBS-TH3-WIFI Page1&2 1 Product Introduction>Introduction du Produit ● Sensor>Capteur ● Wi-Fi Indicator Light>Voyant lumineux Wi-Fi ● Action Button>Bouton Action ① Short press the action button to check the current Wi-Fi status. If the sensor is paired with a network, the Wi-Fi indicator light will flash once, and the data will be synced to the app.
  • Page 2 Page3 Temperature Measurement Range -20℃~60℃(-4~F~140°F) >Plage de mesure de la >-20℃~60℃(-4~F~140°F) température Temperature Accuracy Typical: ±0.3℃/±0.5°F>Typique:±0.3℃/±0.5°F >Précision de la température Max:±0.5℃/±0.9°F>Max:±0.5℃/±0.9°F Humidity Range 0%RH~99%RH >Plage d'humidité >0%RH~99%RH Humidity Accuracy Typical:±3%RH >Typique:±3%RH (25℃/77°F,20%~80%RH) >Précision de l'humidité Max:±4.5%RH (25℃/77°F,20%~80%RH) >Max:±4.5%RH RH Humidity Accuracy Typical:±4.5%RH (25℃/77°F,0%~100%RH) >Typique:±4.5%RH...
  • Page 3 >Entrez le code de vérification pour confirmer votre identité, et l'enregistrement est terminé. 3.2.3 Registering an account is necessary before using the INKBIRD app for the first time. >L'enregistrement d'un compte est nécessaire avant d'utiliser l'application INKBIRD pour la première fois.
  • Page 4 3.3 Connect to Your Phone>Connectez-vous à Votre Téléphone Page6 3.3.1 Open the app and click "+" in the upper right corner to choose IBS-TH3 to start the connection. Ouvrez l'application et cliquez sur > «+» en haut a droite pour sélectionner IBS-TH3 et lancer la connexion.
  • Page 5 Page8 3.3.3 Please select the Wi-Fi network you want to connect to and enter the password, then click "Next Step" to continue. Veuillez sélectionner le réseau Wi-Fi > auquel vous souhaitez vous connecter et saisir le mot de passe, puis cliquez sur «Étape Suivante» pour continuer.
  • Page 6 Page10 3.3.5 The phone app will automatically scan and find the device. Once the device is found, confirm and click "Next Step" to continue. L'application du téléphone va > automatiquement scanner et trouver l'appareil. Une fois l'appareil trouvé, confirmez et cliquez sur «Étape Suivante»...
  • Page 7 Page12 3.3.7 Connection Succeeded. >La connexion a réussi. Note: If the connection fails, you can reassemble the batteries and repeat steps 3.3.1~3.3.6 to reconnect. >Remarque: Si la connexion échoue, vous pouvez réassembler les piles et répéter les étapes 3.3.1~3.3.6 pour rétablir la connexion.
  • Page 8: Product Warranty

    This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. >Cet article bénéficie d'une garantie de 1 an contre les défauts de composants ou de fabrication.
  • Page 9: Fcc Requirement

    6 FCC Requirement Exigence FCC > Page15 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that...
  • Page 10 utilise et peut émettre de l'énergie de radiofréquence et, s'il n'est pas installé et utilisé conformément aux instructions, peut causer des interférences nuisibles aux communications radio. Cependant, il n'y a aucune garantie que des interférences ne se produiront pas dans une installation particulière. Si cet équipement cause des interférences nuisibles à...
