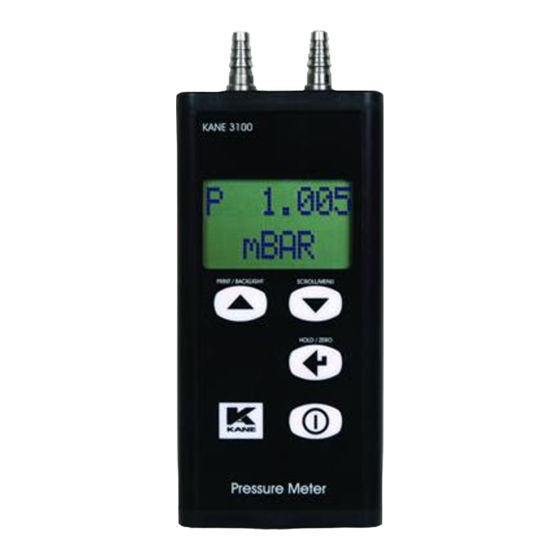

KANE3100
PRESSURE METER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KANE3100 and is the answer not in the manual?

Questions and answers

Related Manuals for Keison KANE3100

Summary of Contents for Keison KANE3100

  • Page 1 KANE3100 PRESSURE METER...

  • Page 2: General Operation

    GENERAL OPERATION When the instrument is first switched on using the ON/OFF key, the top line of the display shows in sequence the date, the time, the model version number, the battery status and the pressure units. The bottom line of the display shows a countdown number that starts at 10 and reduces to zero.
  • Page 3 Two lines of 20 characters can be added to the header of printouts. The meters are controlled using 4 buttons The four buttons are: PRINT/BACKLIGHT A quick press to PRINT Press and hold until there is a beep to toggle the BACKLIGHT SCROLL/MENU Press and hold for MENU.
  • Page 4 HOLD/ZERO A quick press to HOLD the reading and the display flashes. Press and hold until there is a beep to ZERO the reading ON/OFF Press for ON or OFF. The meter counts down from 10 after OFF is pressed Press HOLD/ZERO to cancel OFF .

  • Page 5: Before Using The Meter For The First Time

    BEFORE USING THE METER FOR THE FIRST TIME: Unscrew the bottom two screws, remove the cover and fit a new battery in the battery compartment. Take great care to ensure that the battery is fitted with the correct battery polarity. Then replace the battery cover and screws, taking care not to over tighten them.

  • Page 6: Before Using The Meter Every Time

    BEFORE USING THE METER EVERY TIME: After switch on, check that date and time are correct and battery power is sufficient and the displayed units are the ones required. SAFETY WARNING Never connect to a pressure source where you are not sure what the maximum pressure might be.

  • Page 7: The Menu Functions

    3. THE MENU FUNCTIONS The MENU structure comprises main menu options. STORE, SETUP and PRESSURE have a sub-menu structure. SERVICE is for use by an approved service organisation only. MENU Press MENU and use the UP button to select the following function for change: STORE...
  • Page 8 Press ENTER to select a main menu function When you have selected the function to change, press ENTER to select. Repeat this to scroll through the menu and select (using the ENTER key) and change (using the UP / DOWN keys) the function. The final, logical ENTER returns you to the main menu display.
  • Page 9 PRESSURE SMOOTH OFF = Normal ON = Readings filtered to damp out fluctuations RESOLVE HIGH = maximum number of decimal places LOW = one less decimal place displayed PS UNITS mBAR, inH2O, hPa, mmHg, PSI, kPa, Pa, mmH2O PRESSURE SMOOTH OFF = Normal ON = Readings filtered to damp out fluctuations...
  • Page 10 SETUP Temperature units - F or AUTO-OFF adjusts the auto power off time. A setting of 00 sets the meter for manual switch off only. Time – Uses “Military” time as standard: 7am = 07:00, 7pm = 19:00 Date user defined format Header –...
  • Page 11 STORE VIEW: The test number appears on the top line. Use UP or DOWN to change test number. The bottom line shows the measured value. Use ENTER to exit this mode. LOG : Saves a set of results when ENTER is pressed. Storage capacity is 255 sets of results VIEW:...
  • Page 12 AUTO STO : Automatically stores readings at a preset interval. Press ENTER then select YES or NO. If YES set the desired time interval between 2 and 99 seconds and then press ENTER to activate and exit. DEL ALL: Clears all the memory when YES and ENTER pressed.
  • Page 13 BOTTOM Max Pressure LINE OPTIONS Min Pressure Time Date Pressure units Battery Status Instrument Internal Temp BOTTOM Max Pressure LINE OPTIONS Min Pressure Time Date Pressure units Battery Status Instrument Internal Temp...
  • Page 14 BOTTOM Max Pressure is displayed as : LINE OPTIONS ¯ Min Pressure is displayed as : BOTTOM Max Pressure is displayed as : LINE OPTIONS ¯ Min Pressure is displayed as :...
  • Page 15 MEASURING Make sure you do not exceed the meter’s operating specifications. • Do not exceed the meter’s internal temperature operating range • Do not put the meter on a hot surface When taking critical draft measurements always re-zero the meter in the position you are taking the readings and hold the meter still during the test.
  • Page 16 Port 1 Differential Port IR Printer Output Always use the top left hand port (Port 1) for taking single channel measurements (pressure or vacuum). Only use the right hand port for differential measurements Port 1 Differential Port IR Printer Output Always use the top left hand port (Port 1) for taking single channel measurements (pressure or vacuum).
  • Page 17 If the pressure being measured exceeds the meter’s design range the display will show for “over-range” When taking draft readings at very low pressure or draft levels, for maximum accuracy, re-zero the meter in the orientation that it is being used. This eliminated gravity effects on the very sensitive pressure transducer.
  • Page 18 EXAMPLE PRINTOUTS The standard printout is: The MAX and MIN readings are those observed since last switch on EXAMPLE PRINTOUTS The standard printout is: The MAX and MIN readings are those observed since last switch on...
  • Page 19 NOTE: Printouts of stored readings will also include the TEST NO. below the header. NOTE: Printouts of stored readings will also include the TEST NO. below the header.

  • Page 20: Meter Annual Recalibration And Service

    METER ANNUAL RECALIBRATION AND SERVICE The meter should be re-calibrated and serviced annually. Local regulations may require more frequent re-calibration. METER ANNUAL RECALIBRATION AND SERVICE The meter should be re-calibrated and serviced annually. Local regulations may require more frequent re-calibration.

  • Page 21: Specification

    6. SPECIFICATION Model: KANE3100-1 Nominal Pressure Ranges mBar 80.00 800.0 8000 8.000 mmHg 1.000 60.00 80.00 30.00 6. SPECIFICATION Model: KANE3100-1 Nominal Pressure Ranges mBar 80.00 800.0 8000 8.000 mmHg 1.000 60.00 80.00 30.00...
  • Page 22 SPECIFICATION Model: KANE3100-2 Nominal Pressure Ranges mBar 160.00 1600.0 16000 16.000 mmHg 2.000 120.00 160.00 60.00 SPECIFICATION Model: KANE3100-2 Nominal Pressure Ranges mBar 160.00 1600.0 16000 16.000 mmHg 2.000 120.00 160.00 60.00...
  • Page 23 SPECIFICATION Model: KANE3100-5 Nominal Pressure Ranges mBar 400.0 4000 32000 40.00 mmHg 5.000 300.0 400.0 150.0 SPECIFICATION Model: KANE3100-5 Nominal Pressure Ranges mBar 400.0 4000 32000 40.00 mmHg 5.000 300.0 400.0 150.0...
  • Page 24 SPECIFICATION Model: KANE3100-15 Nominal Pressure Ranges mBar 1040.0 100.00 15.00 mmHg 780.0 1040.0 400.0 SPECIFICATION Model: KANE3100-15 Nominal Pressure Ranges mBar 1040.0 100.00 15.00 mmHg 780.0 1040.0 400.0...
  • Page 25 SPECIFICATION Model: KANE3100-30 Nominal Pressure Ranges mBar 2070.0 207.00 30.00 mmHg 1560.0 2070.0 800.0 SPECIFICATION Model: KANE3100-30 Nominal Pressure Ranges mBar 2070.0 207.00 30.00 mmHg 1560.0 2070.0 800.0...
  • Page 26 Pressure Measurement Model: KANE3100-1 Max. overrange without damage to sensor is 5 times nominal range Range Resolution Accuracy + 20 Pa 0.1 Pa +0.5 Pa + 100 Pa 0.1 Pa + 3 Pa + 2000 Pa 1 Pa + 3% of reading + 80 hPa 0.01 hPa...
  • Page 27 Pressure Measurement Model: KANE3100-2 Max. overrange without damage to sensor is 5 times nominal range Range Resolution Accuracy + 20 Pa 0.3 Pa +2 Pa + 2000 Pa 0.3 Pa + 5 Pa + 160 hPa 0.01 hPa + 3% of reading...
  • Page 28 Pressure Measurement Model: KANE3100-5 Max. overrange without damage to sensor is 5 times nominal range Range Resolution Accuracy + 32000 Pa 1 Pa + 5 Pa + 300 hPa 0.01 hPa + 0.05 hPa + 400 hPa 0.1 hPa + 3% of reading...
  • Page 29 Pressure Measurement Model: KANE3100-15 Max. overrange without damage to sensor is 5 times nominal range Range Resolution Accuracy + 309.99 hPA 0.01 hPa + 10 hPa + 1040.0 hPA 0.1 hPa + 3% of reading Pressure Measurement Model: KANE3100-15 Max. overrange without damage to sensor is...
  • Page 30 Pressure Measurement Model: KANE3100-30 Max. overrange without damage to sensor is 5 times nominal range Range Resolution Accuracy + 1076 hPA 0.1 hPa + 10 hPa + 2070.0 hPA 1 hPa + 3% of reading Pressure Measurement Model: KANE3100-30 Max. overrange without damage to sensor is...
  • Page 31 Dimensions Weight 285 grams with battery Handset 172mm x 72mm x 23mm (172mm incl. spigots) Ambient +0°C to +45°C Operating 10% to 90% RH non- Range condensing Power 9 Volt PP3 alkaline battery Supply Dimensions Weight 285 grams with battery Handset 150mm x 72mm x 23mm (172mm incl.

  • Page 32: Electromagnetic Compatibility

    ELECTROMAGNETIC COMPATIBILITY European Council Directive 89/336/EEC requires electronic equipment not to generate electromagnetic disturbances exceeding defined levels and have adequate immunity levels for normal operation. Specific standards applicable to this meter are stated below. As there are electrical products in use pre- dating this Directive, they may emit excess electromagnetic radiation levels and, occasionally, it may be appropriate to check...
  • Page 33 Use the normal start up sequence in the location where the meter will be used. Switch on all localized electrical equipment capable of causing interference. Check all readings are as expected. A level of disturbance is acceptable. If not acceptable, adjust the meter’s position to minimize interference or switch off, if possible, the offending equipment during your test.
  • Page 34 At the time of writing this manual (Sept 2005) Kane International Ltd are not aware of any field based situation where such interference has occurred and this advice is only given to satisfy the requirements of the Directive. At the time of writing this manual (Sept 2005) Kane International Ltd are not aware of any field based situation where such interference has occurred and this advice is...
  • Page 35 EN 61000-6-3 EN 61000-6-1 and is certified to be compliant Specification EC/EMC/KI/KANE3100 details the specific test configuration, performance and conditions of use. ELECTROMAGNETIC COMPATIBILITY This product has been tested for compliance with the...
  • Page 36 Please Note: Batteries used in this instrument should be disposed of in accordance with current legislation and local guidelines. At the end of its life the meter should be sent to the appropriate recycling centre in accordance with current legislation and local guidelines Please Note: Batteries used in this instrument should be...

  • Page 37: Appendix 1 - Main Parameters

    APPENDIX 1 – Main Parameters : UNITS : User selectable from : inH2O mBar mmH2O NOTE! Not all units available on all models. DATE : Date shown as day, month and year. The order can be changed using the menu function.
  • Page 38 TIME : The time is shown in hours and minutes, expressed in « Military » time or the 24 hr clock. Time is recorded when each test is stored/printed. NOTE ! When changing the batteries on the instrument the memory will store the date and time for up to one minute, if outside this time it may be...
  • Page 39 SYMBOLS used on the display. The internal temperature of the meter The pressure reading in the user’s selected units Displays the Battery power available in % When the LO BAT symbol appears this indicates the batteries are less than 10% of charge and should be replaced, readings may be affected if used with low...
  • Page 40 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
