Amber Touch Thermostat Manual

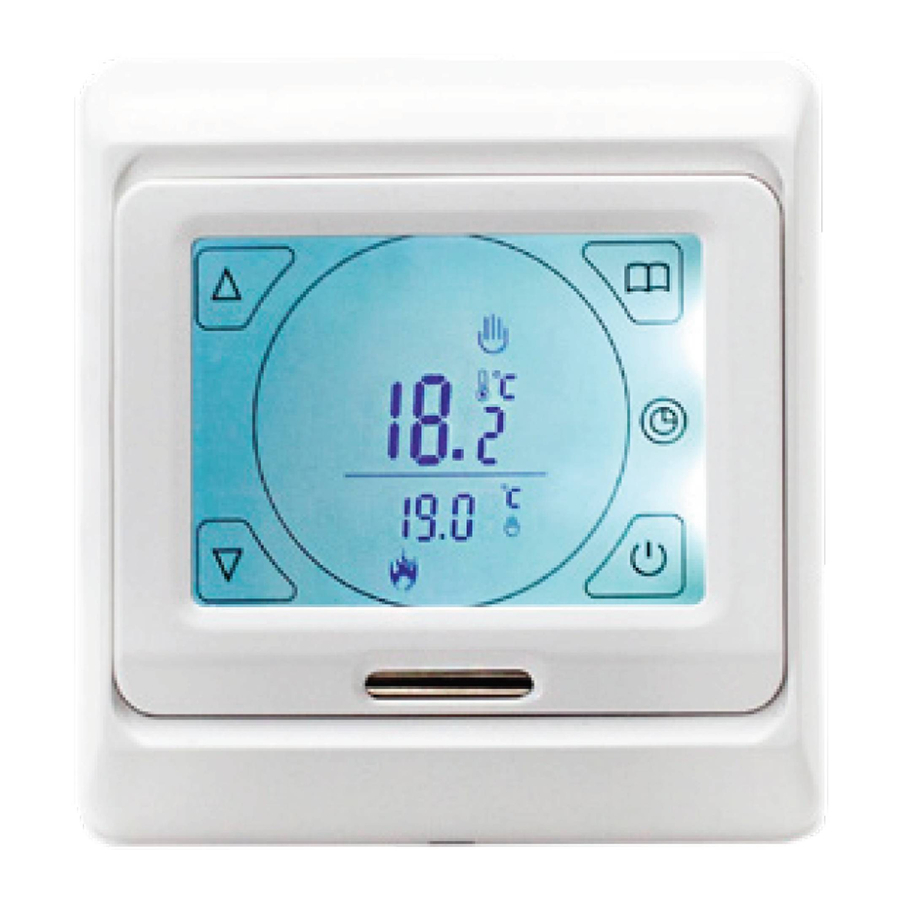

Overview

Before programming your Amber-Touch please ensure you read through all these settings carefully.

	Up		Clock
	Down		Period 1
	Power		Period 2
	Manual Control Mode		Period 3
			Period 4
	Programme Mode Indicator		Period 5
	Menu		Period 6
	Heating On		Screen Lock

Time & Date Setup

• With the unit on, simply hold the button until the minutes begin to fl ash (5 seconds)
• Set the correct time by using the and buttons, using thebutton to switch from minutes to hours and again to edit the day
• Use the and buttons to select the correct day: 1 = Monday, 7 = Sunday
• Tap thebutton to complete the process

Initiate Advanced Settings

Advanced settings must be confi gured before programming, to initiate:

1. Switch off the unit by tapping the button
2. Simultaneously hold the and buttons until 1ADJ shows on the screen

Sensor Mode

Having initiated the advanced settings, tap the button to switch to Sensor Mode (2SEN) and set to OUT by using the and buttons

There are 3 sensor modes available to choose from, Air Sensor Only (IN), Floor Sensor Only (OUT) and Air Sensor with Floor Limit (ALL), you can scroll through these using the and buttons. Use the button to switch off and save your settings.

We would recommend Floor Sensor Only (OUT) for wetrooms where the thermostat is located outside the heated area or where the heating is only required for fl oor warming.

Air Sensor with Floor Limit (ALL) is used where the thermostat is located within the heated room and the underfl oor heating is the primary heat source.

DO NOT use Air Sensor Only (IN) with underfl oor heating.

Set Your Ideal Heating Programme

With 3 diff erent options available, choose the schedule which best suits your lifestyle. Whether that is all 7 days the same (7day), 5 days and the weekend (5/2), or just 6 days and just 1 separate day (6/1).

• Having initiated the advanced settings, tap the button until you reach (6PRG) to set your programme.

• Use the and buttons to set which programme you require.
• The image above indicates a 7 day schedule. A 5/2 schedule would only show digits 1-5 & a 6/1 schedule would only show digits 1-6ю
• Use thebutton to switch off and save your settings.

Alternatively, you can switch off the heating schedule altogether - simply choose the option Programme off when setting.

Create The Perfect Heating Schedule

Please note down the scheduled times prior to beginning programming.
By default, your Amber-Touch will be set to a 5/2 schedule. To personalise this schedule: Enter schedule mode by pressing thebutton.

5 Day Schedule

1. You will see one of the 6 period symbols and thesymbol
2. Hold thebutton until the fi rst period is displayed on the screen
3. You can then set the start time for period 1 using the and buttons
4. Save your start time by pressing thebutton, and now use the and buttons to set the desired temperature and press thebutton
5. Repeat steps for 3 & 4 to set all 6 periods

Weekend Schedule

1. After completing the 5 day schedule, press thebutton for weekend heating
2. The time you select will apply for both Sat and Sun
3. Save your start time by pressing thebutton, and use the and buttons to set the desired temperature
4. Press the button to advance to period 2
5. Set the desired start time and temperature
6. Finally, press thebutton to save your 7 day heating schedule

Frost Protection

An active frost protection feature will ensure your substrate never falls below 10°C. Helping to reduce the heat up times and protecting the fl oor fi nish from potential damage.

• Having initiated the advanced settings, tap thebutton continuously until you see the frost protection mode (5LrP)
• Using the and buttons, simply set this to 'ON' to activate.
• Use the button to switch off and save your settings.

Maximum Floor Temperature

• Having initiated the advanced settings, tap the button continuously until you see the maximum fl oor temperature mode (3Lit).
• Use and buttons to set required temperature
• Press the button to save

Manual Control

If required you may choose to access manual control of your Amber-Touch. You can easily switch between the manual mode and your custom schedule by tapping the button

When in manual mode, you will see the manual control mode icon , and can manually set a desired temperature for your room by using the and buttons.

The symbol will appear when the desired temperature is set above the ambient room temperature.

Error Codes

ER0

This relates to a fault with the internal temperature sensor, either through damage or disconnection. This usually requires a replacement thermostat to correct.

ER1

This relates to a fault with the external floor sensor probe. Contact your electrician, who can isolate the electricity supply and check the sensor is connected and working correctly.

Screen Lock

In some situations where your Amber-Touch is installed into a location where restricted access is necessary, simply:

• Press and hold the and buttons until the appears on the screen.
• To unlock, simply repeat the process until the disappears.

3 Simple Steps to Factory Reset

1. Having initiated the advanced settings, tap the menubutton continuously until you see AFAC
2. Hold the button until "---" is displayed on the screen
3. Press the button and switch off at the mains to complete factory reset

Please note: the time displayed will not reset and will stay the same prior to factory reset.

Advanced Settings Overview

Symbol	Setting	Default	or
1 ADJ	Temperature calibration	N/A	Adjust measured temperature
2 SEN	Sensor mode	IN	IN: built-in sensor OUT: floor sensor ALL: both sensors (floor sensor is the limit sensor)
3 LIT	Max floor temperature	35°C	Adjust limitation value, Limitation range: 5˚C~35˚C
4 DIF	Switching differential	1	Adjust switching differential
5 LTP	Frost protection mode	Off	Turn on/off frost protection function
6 PRG	Heating schedule	5/2	2: 5/2 day mode 1: 6/1 day mode 0: 7 day mode
7 RLE	Output	N/A	Not Used
8 DLY	Output delay	0	Change the delay time
9 HIT	Max temperature setting	50°C	Max. Limitation temperature setpoint (50˚C)
10 AFAC	Reset to factory settings	N/A	Programming parameters will be reset to factory settings when symbol "---" appears

Dimensions

Installation Guide

STEP 1
Release the front cover by inserting screwdriver into the hole on the underside of the front plate

STEP 2
Take the backing plate apart according to diagram

STEP 3
Install the backing plate on to the electrical connection box with screws before any wiring takes place

STEP 4
Ensure all wiring is undertaken by a qualified electrician

STEP 5
Install the housing cover and lock external frame as per diagrams

For technical information contact:
technical@amberufh.co.uk
0800 056 0494
