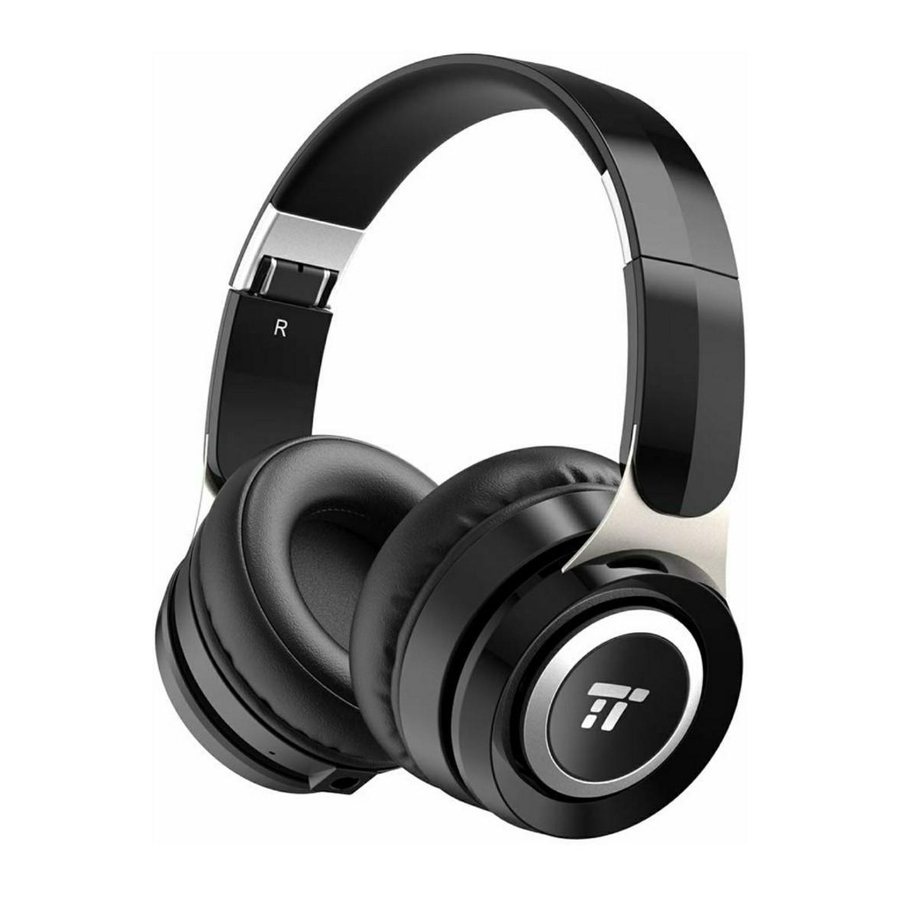

TaoTronics TT-BH048 - Wireless Stereo Headphones User Guide

Product Diagram

1. Volume + / Next Track
2. LED Indicator
3. Multifunction Button
4. Volume - / Previous Track
5. Micro USB Charging Port
6. 3.5mm Audio Port
7. Microphone

Package Contents

• TaoTroincs Bluetooth Headphones (TT-BH048)
• 3.5 mm Audio Cable
• Micro USB Cable

How to Use

Charging

Pairing

1. Make sure the headphones and your Bluetooth device are next to each other (within 3 feet / 1 meter).
2. Press and hold for 5 seconds until the LED indicator flashes red and blue alternatively to enter pairing mode.
3. Activate the Bluetooth on your device and search for nearby Bluetooth connections.
4. Find "TaoTronics TT-BH048" in the search results. Tap on the name to connect.

Note:

• When turned on, the headphones will try to connect previously paired devices first, then enter pairing mode if connection fails.
• Press and hold and at the same time until the LED indicator flashes purple twice and two beep sound is heard, then restart the headphones to pair.

Audio Cable Connection

Insert the 3.5mm audio cable into the audio port of the headphones. Twist 180° counterclockwise to lock the plug, rotate in the reverse direction for 180° to remove.

Button Control

Power On / Off	Press and hold
Play / Pause / Answer / Hang up phones calls	Press once
Reject Phone Calls	Press and hold for 1 second
Volume + / -	Press / Button
Previous / Next Track	Press and hold /
Redial	Press twice
