This instruction manual explains how to use lenses. Precautions common to all lenses such as notes on use are found in the separate "Precautions before using". Be sure to read both documents before using your lens.
This lens is designed for Sony α camera system E-mount cameras. You cannot use it on A-mount cameras.
The FE 12-24mm F4 G is compatible with the range of a 35mm format image sensor.
A camera equipped with a 35mm format image sensor can be set to shoot at APS-C size.
For details on how to set your camera, refer to its instruction manual.
For further information on compatibility, visit the web site of Sony in your area, or consult your dealer of Sony or local authorized service facility of Sony.
*¹ You cannot remove the lens hood.
*² Do not touch the lens contacts.
(See illustration B–1.)
(See illustration B–2.)
While holding down the lens release button on the camera, rotate the lens counterclockwise until it stops, then detach the lens.
Rotate the zooming ring to the desired focal length.
The focus mode can be switched between AF and MF on the lens.
For AF photography, both the camera and lens should be set to AF. For MF photography, either or both the camera or lens should be set to MF.
Slide the focus-mode switch to the appropriate mode, AF or MF (1).

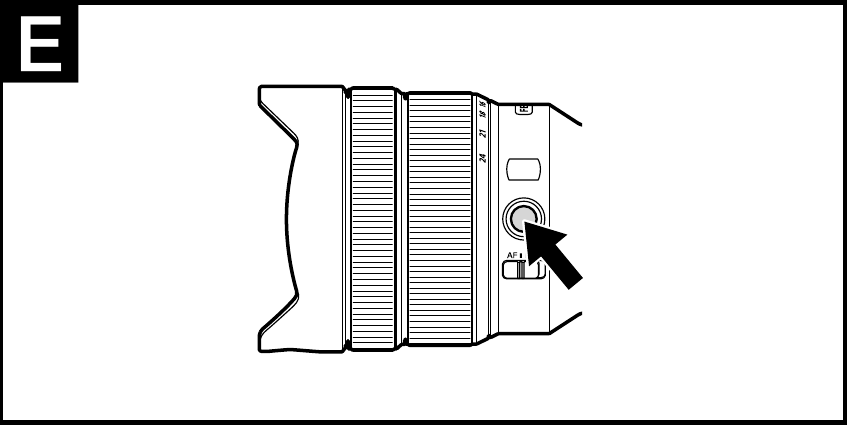

Press the focus-hold button in AF to cancel AF. The focus is fixed and you can release the shutter on the fixed focus. Release the focus-hold button while pressing the shutter button halfway to start AF again.
Product name (Model name) | FE 12-24mm F4 G (SEL1224G) |
Focal length (mm) | 12-24 |
35mm equivalent focal length*¹ (mm) | 18-36 |
Lens groups-elements | 13-17 |
Angle of view 1*² | 122°-84° |
Angle of view 2*² | 99°-61° |
Minimum focus*³ (m (feet)) | 0.28 (0.92) |
Maximum magnification (X) | 0.137 |
Minimum aperture | f/22 |
Filter diameter (mm) | – |
Dimensions (maximum diameter × height) (approx., mm (in.)) | 87 × 117.4 (3 1/2 × 4 5/8) |
Mass (approx., g (oz)) | 565 (20.0) |
Shake compensation function | No |
*¹ This is the equivalent focal length in 35mm format when mounted on an Interchangeable Lens Digital Camera equipped with an APS-C sized image sensor.
*² Angle of view 1 is the value for 35mm cameras, and angle of view 2 is the value for Interchangeable Lens Digital Cameras equipped with an APS-C sized image sensor.
*³ Minimum focus is the distance from the image sensor to the subject.
Included items (The number in parentheses indicates the number of pieces.)
Lens (1), Front lens cap (1), Rear lens cap (1), Lens case (1), Set of printed documentation
Design and specifications are subject to change without notice.
and
are trademarks of Sony Corporation.
