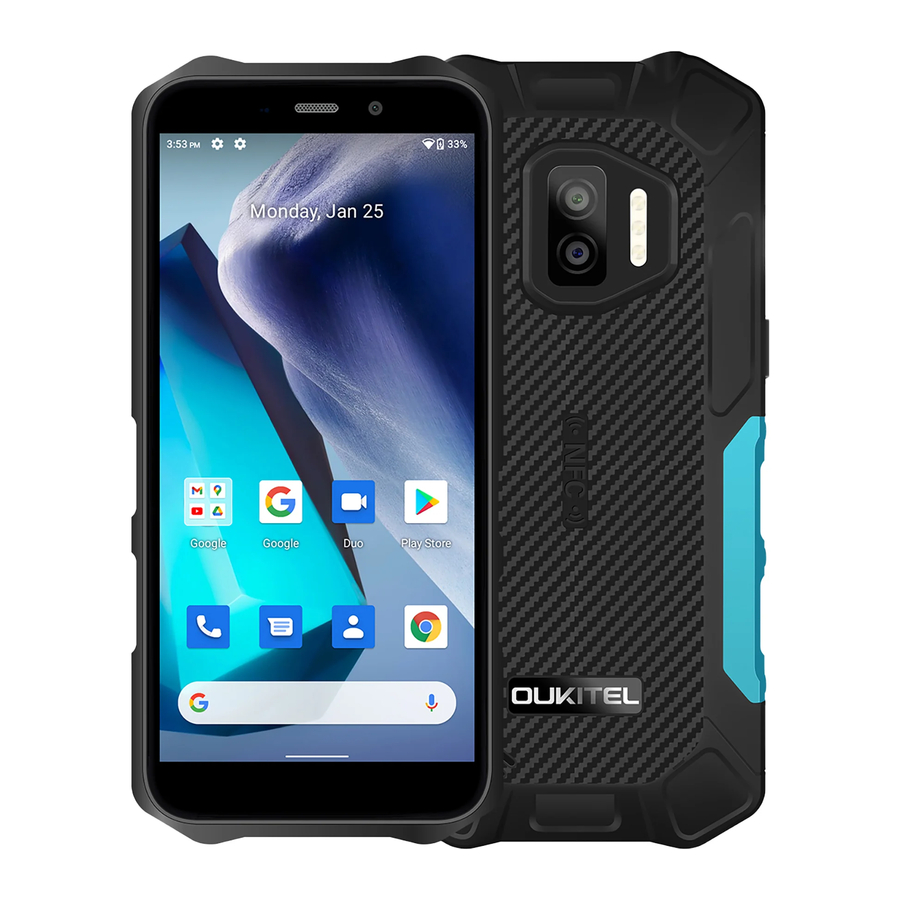

OUKITEL WP12 - Mobile Phone Quick Start Guide

Overview

Thanks for choosing OUKITEL products.

1. Headphone plug
2. Light sensor
3. Front camera
4. Receiver
5. Touch screen
6. Micro 5pin charging port
7. Microphone

1. SIM card
2. Custom key
3. Rear main camera
4. Discouraged
5. Rear camera
6. flash light
7. Speaker
8. Volume +
9. Volume -
10. Power key

Accessories

• Quick Charger
• Micro 5pin charging cable
• SIM card pin

Battery

WP12 is included an internal battery.
You can track your battery status with the icon showed on the top right of the screen. As microwave ovens, stoves, or radiators, batteries may explode when overheated.

• Use only OUKITEL-approved batteries specifically designed for your phone. Incompatible batteries can cause serious injuries or damage to your phone.
• Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Basic parameters

Camera

Rear camera:
13M AF + 2 M FF YUV
LED Flash

Front camera
5.0MP

Connection (I/O)

Europe Band:
GSM: 2/3/5/8
WCDMA: 1/8
FDD: 1/3/7/8/19/20

American Band:
GSM: 2/3/5/8
WCDMA: 1/2/4/5/8
FDD: 2/4/5/7/12/17/28a/28b

FM:87.5 MHz -108 MHz
SIM Card Slot: Dual SIM,Nano+Nano/Nano+TF Card

Note: Based On Local Frequency Band

Other Features

Video: AVI, MP4, WMV, MKV, MOV, ASF, FLV
Audio: FLAC, APE, AAC, MKA, MP3, M4A, AMR, ALAC, WAV
Image: JPEG, BMP, GIF,PNG

Dimensions

• Height: 174mm
• Width: 81mm
• Thickness: 14.3mm
• Weight: 250g

Package contents:

• 1*USB Cable
• 1*Multi-language Manual
• 1*Charger
• 1*Warranty card
• 1*SIM Card pin

Comes with the Google™ app and Google Chrome™.
Android is a trademark of Google LLC
MANUFACTURER NAME: SHENZHEN YUNJI INTELLIGENT TECHNOLOGY CO.,LTD
MANUFACTURERADDRESS: A-SIDE A2 BUILDING 2/F ENET NEW INDUSTRIAL PARK,NO.20
DAFU INDUSTRIAL ZONE, AOBE| COMMUNITY, GUANLAN, LONGHUA NEW
DISTRICT,SHENZHEN CHINA
Manufacturer's Name: SHENZHEN YUNJI INTELLIGENT
TECHNOLOGY CO.,LTD
Smart Phone
Model number: WP12
Operating Temperature: -10°C to 40°C

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 0mm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. This device in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. All essential radio test suites have been carried out.

1. Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss.
2.
   RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
3. The product shall only be connected to a USB interface of version USB 2.0
4. Adapter shall be installed near the equipment and shall be easily accessible.
5. The plug considered as disconnect device of adapter
6. The device complies with RF specifications when the device used at 0mm form your body

This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Specific Absorption Rate (SAR) information:
This Mobile Phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

FCC ID: 2ANMU-WP12

www.oukitel.com
