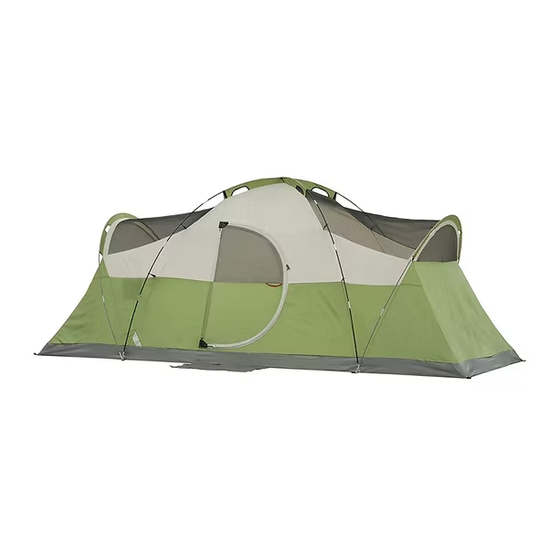

Coleman LEGACY 2000001643 User Manual

Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp
objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning
strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property
damage or personal injury.
• For best results in windy conditions, position narrow end of tent into
the wind.
• Enlist the help of at least one other person to assist you when it is
time to assemble the tent.
Pole Descriptions
Description Qty.
Main Body Pole, black 2
Side Body Pole, grey 2
Rainfly Pole, black 1
Vertical Door Pole, black,
short w/rubber tips 1
Door Pole, black,
long w/rubber tips 1
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with the
door facing the desired direction. (Fig. 1)
2. Assemble all poles by interlocking the shock-corded, sections
together.
3. Insert grey Side Body Poles through the grey trimmed sleeves
on both sides of tent; then insert black Main Body Poles
through black trimmed sleeves, in center of tent, forming a
"X". Make sure black Main Body Poles overlap the grey Side
Body Poles. (Fig. 1)
Sleeves with Black Trim
Sleeve with
Grey Trim
Front of Tent
Black, Shock-corded Main Body Poles
Grey, Shock-corded Side Body Poles
4. Insert end of each black Main Body Poles & grey Side Body
Poles into pins. (Fig. 2 & 2A)
5. Go to opposite end of each pole and gradually apply pressure
to each forming arches. Insert the pin into each pole end at the
sides and corners of tent. (Fig. 2 & 2A)
6. Attach frame clips along edges of tent to the black Main Body
Poles & grey Side Body Poles. (Fig. 2B)
7. Stretch tent until taut, then secure metal loops located on both
sides and web loops located at four corners of tent with
stakes. (Fig. 2C)
LEGACY TENT
TM
Pole Pole Pole
Dia. Repair Kit Replacement Kit
11mm 501000539 501000549
9.5mm 501000540 501000548
11mm 501000539 501000549
6.3mm 501000543 501000545
6.3mm 501000543 501000545
Door
MODEL 2000001643
Hinged, Rigid Door
1. Assemble Vertical Door Pole (shorter black pole with plastic tips);
then insert through zippered vertical pole sleeve on hinged side of
door. (Fig. 3)
2. Insert end of Vertical Door Pole into bottom hinge plate, apply
pressure to form a slight bow, then insert other tip of pole into top
hinge. Zip up vertical pole sleeve. (Fig. 4 & 5)
3. Assemble Door Pole (longer black pole with plastic cap tips); then
insert into zippered pole sleeve at top of door. (Fig. 6)
4. Insert end of Door Pole into top hinge plate, apply pressure to form
a bow, then insert other tip of pole into the bottom hinge. (Fig. 7)
5. Zip up pole sleeve to enclose Door Pole. (Fig. 8)
Vertical Pole
Sleeve
Door Hinge
Fig. 6
Fig. 1
Top
Top
Door
Sleeve with Door
Pole
Pole
Hinge Hinge
Grey Trim
Sleeve Sleeve
To Attach Rainfly
1. Insert black Rainfly Pole with through sleeve in underside of
Rainfly. (Fig. 9)
2. Drape Rainfly over tent with Rainfly Pole centered above front door
& the dark blue vestibule flaps located in the front. (Fig 9)
Door
2B
2C
Fig. 3 Fig. 4
Fig. 7
Rainfly
Door
(continued on other side)
Fig. 2
2A
Fig. 5
Fig. 8
Fig. 9
Rainfly Sleeve
Black Rainfly
Pole
