Coleman STITCHLINE 4-POLE SUN SHADE 2000001652 User Manual

Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects, to install your sun shade.
WARNING: Keep clear of overhead power lines.
• Do not set up your sun shade under trees because of potential lightning strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property damage or personal injury.
• For best results in windy conditions, position narrow end of sun shade into the wind.
• Enlist the help of at least one other person to assist you when it is time to assemble the sun shade .
• Under no circumstance should this product be used to cover automobiles, marine products or similar.

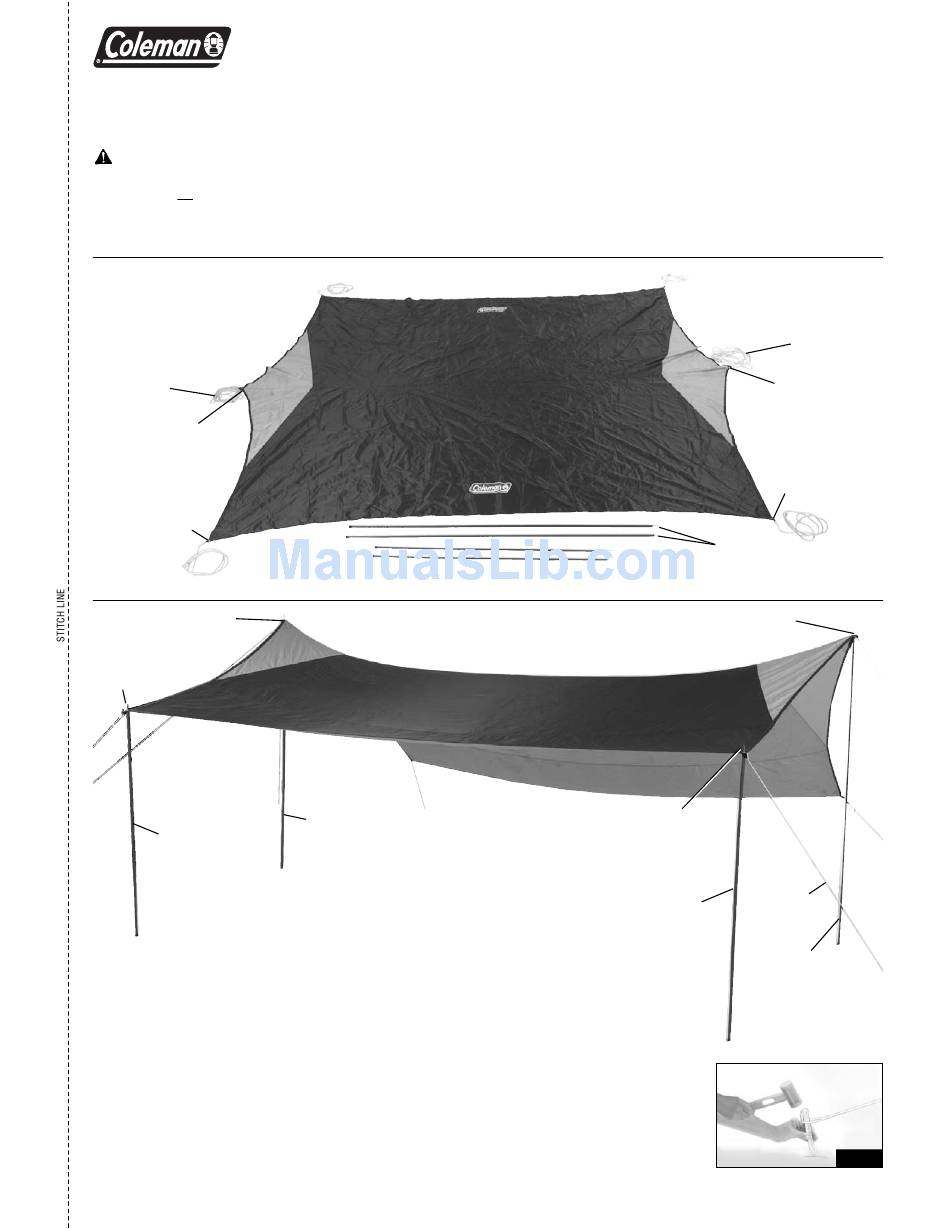

ASSEMBLY PARTS
Guyline
Grommet for long
Metal Pole
Grommet for
short Metal Pole
Metal Pole Tip
in Grommet
Metal Pole Tip
in Grommet
Metal Pole, short
Fig. 2
Sun Shade Assembly
1. Assemble the shock-corded short and long Metal Poles. (Fig. 1)
2. Insert narrow metal tip on long Metal Pole into metal grommet located on the web strap long end
of the sun shade. (Fig. 2)
3. Lift pole to upright position; then extend out the guylines tied onto the web strap. (Fig. 2)
4. Slip loop on each guyline over plastic stake and drive in at a slight angle to secure. (Fig. 3)
5. Repeat steps 3 & 4 above for the remaining long Metal Pole and guylines.
6. Insert narrow metal tip on short Metal Pole into metal grommet located on the web strap at the front
of the sun shade. (Fig. 2)
7. Lift short Metal Pole to upright position; then extend out the guyline tied onto the web strap. (Fig. 2)
8. Slip loop on guyline over plastic stake and drive in at a slight angle to secure. (Fig. 3)
9. Repeat steps 6 & 7 above for the remaining short Metal Pole and guyline.
10. Extent out remaining guylines at back of the sun shade until taut and secure with plastic stakes.
(Fig. 2)
4-POLE SUN SHADE
Sun Shade (1)
Fig. 1
Metal Poles, short (2)
Part No. 5010000657
Front of Sun Shade
Metal Pole,
long
(continued on other side)
MODEL 2000001652
Grommet for long
Metal Poles, long (2)
Part No. 5010000656
Metal Pole Tip
in Grommet
Metal Pole Tip
in Grommet
Guylines
Metal Pole, short
Metal Pole, long
Guyline
Metal Pole
Grommet for
short Metal Pole
Fig. 3
