OBO Bettermann KAL-K11 Series Mounting Instructions

Cable outlet for modul 45

Advertisement

Quick Links

1
Rapid 80
Rapid 45
4
6288 572
7
2
ISS
5
5
1
8
1
3
1
1
2
3
2
4
6
2
1
9
36 mm
2
45 mm
45 mm
KAL-K11..
DE Kabelauslass für Modul 45
Montageanleitung

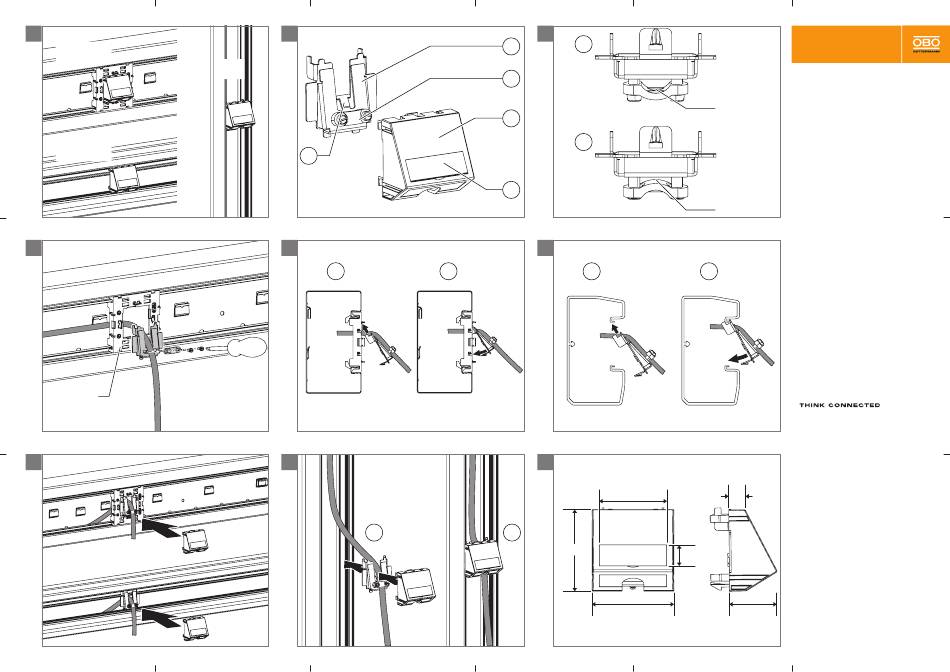

EN Cable outlet for Modul 45
Mounting instructions
Ø 7-11 mm
ES Salida de cable para Modul 45
Instrucciones de montaje
RU Кабельный вывод для модуля 45
Монтажная инструкция
Ø 3-7 mm
2
OBO BETTERMANN GmbH & Co. KG
Postfach 1120
58694 Menden
Germany
www.obo-bettermann.com
9 mm
12 mm
26 mm
OPTO 130496 HAFA 49800371 Stand 08/2013
