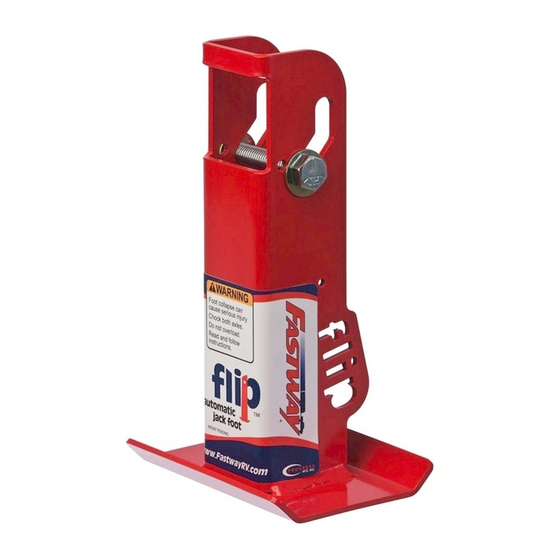

automatic
jack foot
Tools Needed for Installation:
• 3/16" Metal Drill Bit
• 1/2" Metal Drill Bit
• Drill
• Wood Block
• (2) 3/4" wrenches
• Measuring tape
• Pencil or scratch awl
• Center punch

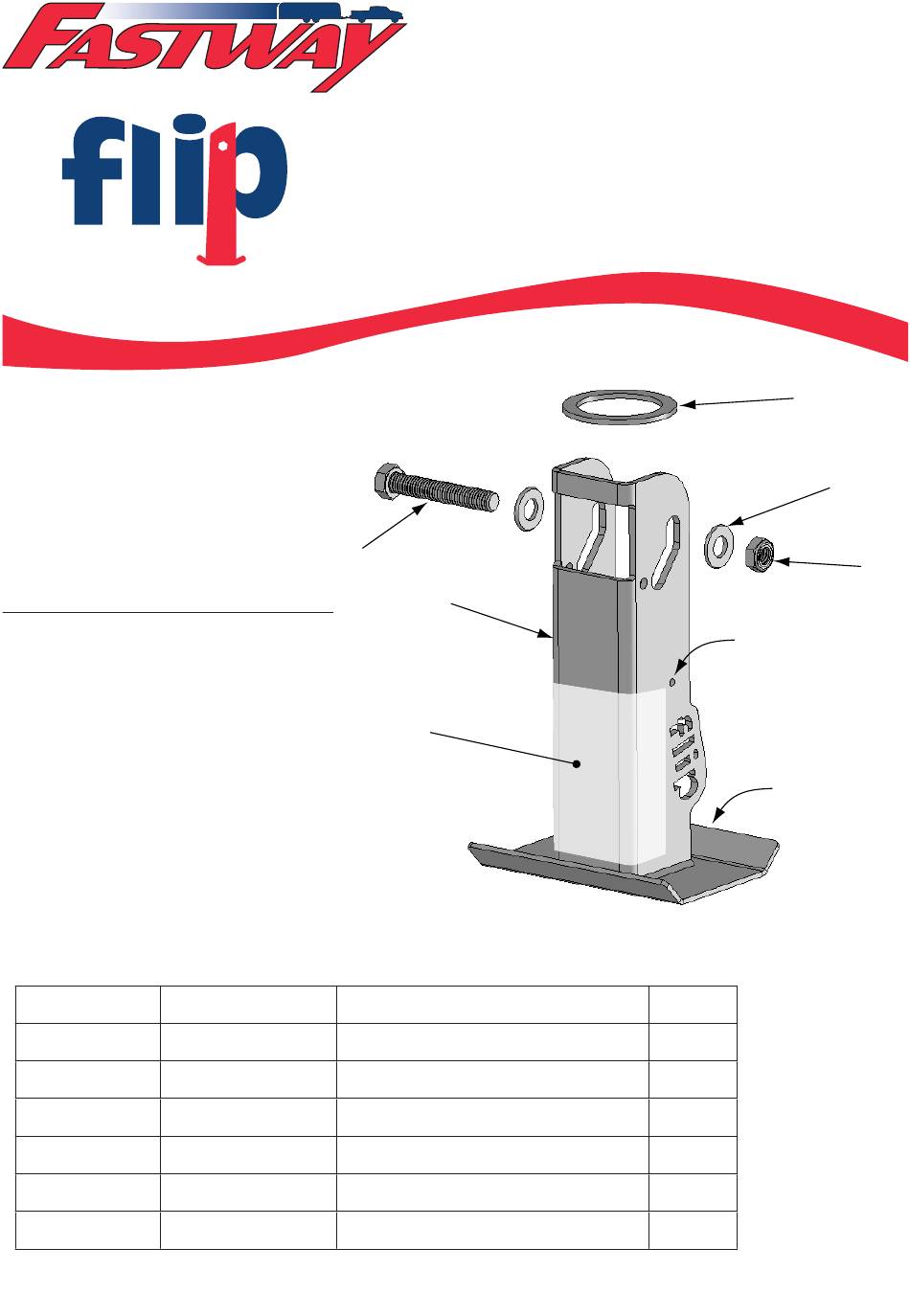

Parts Breakdown
Fig. #
1
2
3
4
5
6
www.FastwayTrailer.com
®
TM
6
Part #
88-01-6225
90-04-9110
90-04-9285
BD088-2WS
88-01-6625
88-01-6155
Installation
and Operation
Instructions
5
4
Description
Spacer Ring (1 3/4" I.D.)
1/2" Washer
1/2" Nylock nut
Warning Sticker
Flip Automatic Jack Foot
1/2" x 2-3/4" bolt
Fastway Flip...Faster, Easier.
Model 88-00-6525
For 2" Jacks
Qty.
1
2
1
1
1
1
1
2
3
Drill Guide
Pilot Hole
Base Plate
™
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fastway flip 88-00-6525
Summary of Contents for Fastway flip 88-00-6525
- Page 1 • Center punch Parts Breakdown Fig. # Part # Description Qty. 88-01-6225 Spacer Ring (1 3/4” I.D.) 90-04-9110 1/2” Washer 90-04-9285 1/2” Nylock nut BD088-2WS Warning Sticker 88-01-6625 Flip Automatic Jack Foot 88-01-6155 1/2” x 2-3/4” bolt Fastway Flip...Faster, Easier. ™ www.FastwayTrailer.com...
- Page 2 WARNING • Read entire instruction manual before using this product. Failure to do so can result in serious injury or death. • Never exceed max 1,400 lb. tongue weight rating. • Do not use to support trailer parked on grade greater than 3% (1.72°). • Chock tires on both sides while supporting trailer with jack foot.
-
Page 3: Installation Instructions
Installation Instructions STEP 1 Locate trailer on a flat level surface, such as a driveway or parking lot. Chock both sides of the trailer, and set tow vehicle parking brake. Keep trailer coupled to tow vehicle, or place jack stands under trailer tongue to support trailer without the use of the tongue jack. - Page 4 Always wear adequate personal protection equipment while installing. Wear safety glasses. Option 1: Drill the hole in the normal location. There may be very little material between the two holes, if any. This is okay, even if the holes interfere slightly.
- Page 5 Step 2b - Locating hole in square jack If you are installing the Flip jack foot on a round jack, skip to step 2c. If you are installing the Flip jack foot on a square jack you cannot use the guide holes pre-drilled in the Flip to locate the pilot holes as you can with a round jack.
- Page 6 Step 2c - Locating hole in round jack Retract the tongue jack far enough that you can fit the wood block and Fastway ® Flip jack foot under the inner-jack tube. Place the wood block on the ground, ™ and place the jack foot on top, face down with the base plate toward the back of the trailer.
- Page 7 and drill and ream the second hole. Pass the drill bit all the way through the inner jack tube to make sure there is a clean path for the bolt all the way through the tube. 1-1/2” 7/8” 7/8” Enlarge with 1/2” drill bit. STEP 3 If drilling the holes leaves a burr or lip, use a file or grinder to smooth the edge...
- Page 8 Additional rings are available from your dealership, or directly from Fastway ® www.FastwayTrailer.com More than one ring can be used if necessary. Page 8...
- Page 9 Instructions for Use Do not use to support trailer parked on grade greater than 3% (1.72°). Do not support trailer with jack foot resting on un-level ground or debris. Jack foot base plate must be in complete contact with ground. STEP 5 When uncoupling your trailer: Make sure that the trailer is parked on relatively level ground.
- Page 10 Support tongue weight with jack foot in vertical position only when attachment bolt is resting at bottom of guide slot. STEP 6 The Flip jack foot is designed to straighten automatically as more weight is applied. At times it may be helpful to move it forward slightly with your foot to make sure it sits directly below the jack so that the jack tube rests...
- Page 11 STEP 8 To couple your trailer: Back the hitch ball under the coupler. Retract the tongue jack until the coupler rests on the hitch ball. Lock the coupler. If you are using a weight distributing hitch, extend the jack and tension the weight distribution bars.
- Page 12 Other Great Fastway Products! The Fastway Zip™ breakaway cable’s coiled ® design keeps your cable from dragging! Trailer Breakaway Cable & Switch Fastest and easiest tandem axle wheel chock ever! Easy as... Fastway Trailer Products ® 533 South 500 West, Provo, UT 84601 (877) 523-9103 www.FastwayTrailer.com...
