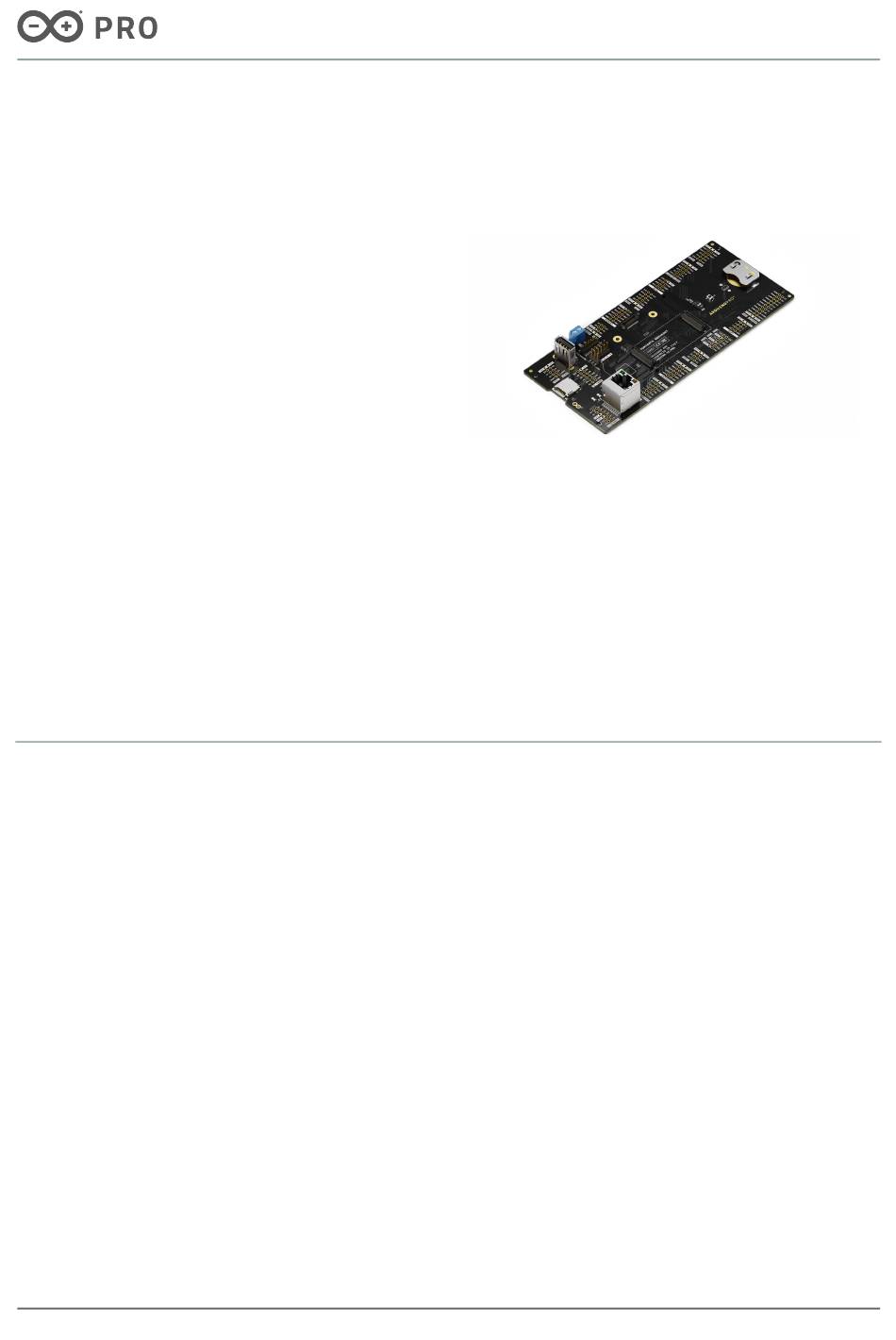

Arduino® Portenta Breakout Board
Product Reference Manual
SKU: ASX00031
Description
The Arduino® Portenta Breakout board is designed to assist developers with their prototypes by exposing the
high-density connectors of the Portenta family on both sides of the breakout carrier, providing total flexibility for
measuring and controlling signals - developing your own hardware, testing the design and measuring the input and
output signals out of the high-density connectors.
Target areas:
Prototyping
1 / 18
Arduino® Portenta Breakout Board
Modified: 14/02/2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pro Arduino ASX00031
Summary of Contents for Pro Arduino ASX00031
- Page 1 Arduino® Portenta Breakout Board Product Reference Manual SKU: ASX00031 Description The Arduino® Portenta Breakout board is designed to assist developers with their prototypes by exposing the high-density connectors of the Portenta family on both sides of the breakout carrier, providing total flexibility for measuring and controlling signals - developing your own hardware, testing the design and measuring the input and output signals out of the high-density connectors.
- Page 2 Arduino® Portenta Breakout Board Features Power ON Button Boot mode DIP switch Connectors USBA RJ45 Ethernet up to 1Gb/s; speed depending on installed board Micro SD card MIPI 20T JTAG with trace capability Power CR2032 RTC Lithium Battery backup External power terminal block Break out all Portenta High Density connector signals (see pinout table below) Male/female HD connectors allow interposing breakout between Portenta and shield to debug signals Compatibility Standard Portenta High Density connector pinout...
-
Page 3: Table Of Contents
Arduino® Portenta Breakout Board Contents 1 The Board 1.1 Application Examples 1.2 Accessories 1.3 Related Products 1.4 Solution Overview 2 Ratings 2.1 Absolute Maximum Ratings 2.2 Recommended Operating Conditions 3 Functional Overview 3.1 Board Topology 3.2 DIP Switch 3.3 RJ-45 Connector 4 Board Operation 4.1 Getting Started - IDE 4.2 Getting Started - Arduino Web Editor... - Page 4 Arduino® Portenta Breakout Board 6.1 Board Outline 7 Certifications 7.1 Declaration of Conformity CE DoC (EU) 7.2 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 7.3 Conflict Minerals Declaration 8 Company Information 9 Reference Documentation 10 Change Log 4 / 18 Arduino®...
-
Page 5: The Board
Arduino® Portenta Breakout Board 1 The Board 1.1 Application Examples This product is designed to work alongside the Portenta family. Please check the Getting Started guide of your Portenta board. Product Development: The Portenta Breakout board reduces development time for industrial grade solution automation based on the Portenta line. -
Page 6: Ratings
Arduino® Portenta Breakout Board Example of a typical installation for a solution including Portenta H7. A Portenta board must be connected for operation of the Portenta Breakout Board. 2 Ratings 2.1 Absolute Maximum Ratings Symbol Description Unit Maximum thermal limit °C Maximum input voltage from 5V input Maximum Power Consumption... -
Page 7: Dip Switch
Arduino® Portenta Breakout Board Ref. Description Ref. Description Cam connector Power terminal block Boot mode selection Power ON button USBA power switch IC Back view Bottom view - connectors Ref. Description Ref. Description DF40C-80DP-0.4V(51) High Density connector DF40C-80DP-0.4V(51) High Density connector 3.2 DIP Switch The DIP switch allows for boot mode configuration: BOOT SEL: When set to ON, keeps the Portenta in Boot mode. -
Page 8: Connector
Arduino® Portenta Breakout Board 3.3 RJ-45 Connector The RJ-45 Connector allows to plug-in an ethernet cable and connect to your network. By default it is compatible with the Arduino Portenta H7 as the jumper pads are joint with copper. To allow compatibility with the Arduino Portenta X8 it is needed to cut 2 jumper-pads, located on top of the to the RJ-45 Connector, below the SD holder, on the left side of the Carrier as show in the following picture. -
Page 9: Getting Started - Arduino Web Editor
4.4 Sample Sketches Sample sketches can be found either in the “Examples” menu in the Arduino IDE or in the “Documentation” section of the Arduino Pro website [4] 4.5 Online Resources Now that you have gone through the basics of what you can do with the board you can explore the endless... - Page 10 Arduino® Portenta Breakout Board Pinouts In cases where multiple channels are on a single header, the first channel is on the bottom part of the header and the section channel is on the top part of the header. The order of the channel is determined by the silkscreen markings.
-
Page 11: Gpio
Arduino® Portenta Breakout Board 5.1 GPIO Function Type Description Power +3.3V power rail GPIO 0 Digital GPIO 0 GPIO 1 Digital GPIO 1 GPIO 2 Digital GPIO 2 GPIO 3 Digital GPIO 3 GPIO 4 Digital GPIO 4 GPIO 5 Digital GPIO 5 GPIO 6... -
Page 12: Can0/Can1
Arduino® Portenta Breakout Board 5.3 CAN0/CAN1 Pins closer to the edge of the board are CAN0. Pins close to the centre are CAN1. Please Note When used with Arduino Portenta H7, only CAN1 is available. Function Type Description Power +5.0V power rail Differential CAN Bus Transmission Line Differential... -
Page 13: Display
Arduino® Portenta Breakout Board 5.5 Display Function Type Description Differential Differential DSI Data Line 3 Positive Differential Differential DSI Data Line 2 Positive Differential Differential DSI Data Line 1 Positive Differential Differential DSI Data Line 0 Positive CLKP Differential Differential DSI Clock Positive Power Ground Differential... -
Page 14: Pcie
Arduino® Portenta Breakout Board 5.8 PCIe Function Type Description Differential Differential PCIe Transmission Line Negative Differential Differential PCIe Receive Line Negative Differential Differential PCIe Clock Line Negative Power Ground Differential Differential PCIe Transmission Line Positive Differential Differential PCIe Receive Line Positive Differential Differential PCIe Clock Line Positive Digital... -
Page 15: Camera: Dcmi/Csi
Arduino® Portenta Breakout Board 5.11 CAMERA: DCMI/CSI Function Type Description Power Ground Digital DCMI HSYNC Digita DCMI_CLK / CSI CKN Digital DCMI VSYNC / CSI CKP Digital DCMI D6 / CSI D3P Digital DCMI D7 / CSI D3P Digital DCMI D4 / CSI D2N Digital DCMI D5 / CSI D2P Digital... -
Page 16: Mechanical Information
Arduino® Portenta Breakout Board 6 Mechanical Information 6.1 Board Outline Board outline and screw holes 7 Certifications 7.1 Declaration of Conformity CE DoC (EU) We declare under our sole responsibility that the products above are in conformity with the essential requirements of the following EU Directives and therefore qualify for free movement within markets comprising the European Union (EU) and European Economic Area (EEA). -
Page 17: Declaration Of Conformity To Eu Rohs & Reach 211 01/19/2021
Arduino® Portenta Breakout Board 7.2 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 Arduino boards are in compliance with RoHS 2 Directive 2011/65/EU of the European Parliament and RoHS 3 Directive 2015/863/EU of the Council of 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 18: Company Information
Via Ferruccio Pelli 14, 6900 Lugano, TI (Ticino), Switzerland 9 Reference Documentation Link Arduino IDE https://www.arduino.cc/en/Main/Software (Desktop) Arduino IDE (Cloud) https://create.arduino.cc/editor Cloud IDE Getting https://create.arduino.cc/projecthub/Arduino_Genuino/getting-started-with-arduino- Started web-editor-4b3e4a Arduino Pro Website https://www.arduino.cc/pro Project Hub https://create.arduino.cc/projecthub?by=part&part_id=11332&sort=trending Library Reference https://www.arduino.cc/reference/en/ Online Store https://store.arduino.cc/ 10 Change Log Date Changes 05/05/2021...
