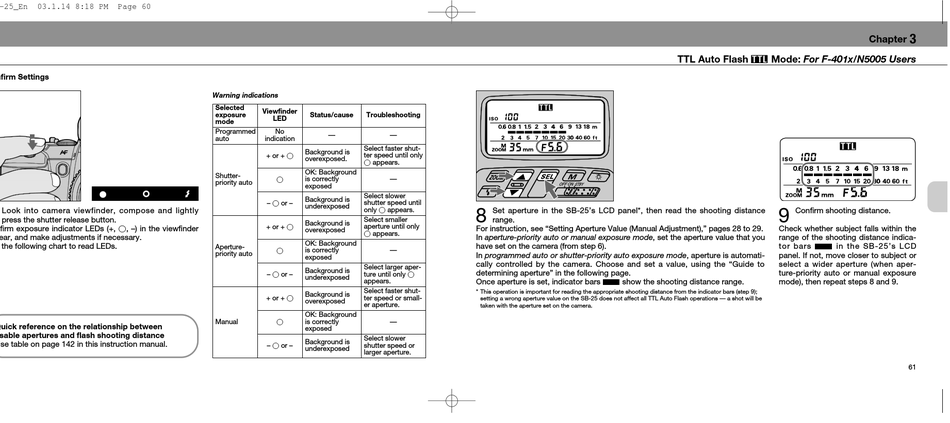

Nikon SB-25 Instruction Manual page 31

Confirm Settings
7 Look into camera viewfinder, compose and lightly
press the shutter release button.
Confirm exposure indicator LEDs (+, R, –) in the viewfinder
appear, and make adjustments if necessary.
Use the following chart to read LEDs.
Quick reference on the relationship between
usable apertures and flash shooting distance
Use table on page 142 in this instruction manual.
60
Warning indications
Selected
Viewfinder
exposure Status/cause Troubleshooting
LED
mode
Programmed No
— —
auto indication
Select faster shut-
Background is
+ or + R
ter speed until only
overexposed.
R appears.
OK: Background
Shutter-
R
is correctly —
priority auto
exposed
Select slower
Background is
– R or –
shutter speed until
underexposed
only R appears.
Select smaller
Background is
+ or + R
aperture until only
overexposed
R appears.
OK: Background
Aperture-
R
is correctly —
priority auto
exposed
Select larger aper-
Background is
– R or – ture until only R
underexposed
appears.
Select faster shut-
Background is
+ or + R
ter speed or small-
overexposed
er aperture.
OK: Background
R
Manual is correctly —
exposed
Select slower
Background is
– R or –
shutter speed or
underexposed
larger aperture.
8 Set aperture in the SB-25's LCD panel*, then read the shooting distance
range.
For instruction, see "Setting Aperture Value (Manual Adjustment)," pages 28 to 29.
In aperture-priority auto or manual exposure mode, set the aperture value that you
have set on the camera (from step 6).
In programmed auto or shutter-priority auto exposure mode, aperture is automati-
cally controlled by the camera. Choose and set a value, using the "Guide to
determining aperture" in the following page.
Once aperture is set, indicator bars show the shooting distance range.
* This operation is important for reading the appropriate shooting distance from the indicator bars (step 9);
setting a wrong aperture value on the SB-25 does not affect all TTL Auto Flash operations — a shot will be
taken with the aperture set on the camera.
TTL Auto Flash Mode: For F-401x/N5005 Users
9 Confirm shooting distance.
Check whether subject falls within the
range of the shooting distance indica-
tor bars in the SB-25's LCD
panel. If not, move closer to subject or
select a wider aperture (when aper-
ture-priority auto or manual exposure
mode), then repeat steps 8 and 9.
3
Chapter
61
