Thank you for purchasing JVC speaker.
Before you begin using the speaker, please read the instructions carefully.
SP-SB100 has a magnetically-shielded design for placement
adjacent to TVs and monitors without causing color
aberrations. However, color may be affected as a result of how
the speaker is installed. Therefore, be careful of the following:
• When placing this speaker near a TV set, turn off the TV's
main power switch or unplug it before installing the speaker.
After the speaker is installed, wait at least 30 minutes before
turning on the TV's power.
• If another speaker has been set up near the TV set, that
speaker may cause color unevenness in the TV's picture.
• In spite of the shielded design of this speaker, some types of
TVs may be affected. If this happens, move the speaker
away from the TV set.
7 Caution
When installing the speaker on the wall;
• Be sure to have it installed on the wall by a qualified personnel.
DO NOT install the speaker on the wall by yourself to avoid
unexpected damage from its falling off the wall due to
incorrect installation or weakness in wall structure.
• Care must be taken in selecting a location for speaker installation
on a wall. Injury to personnel or damage to equipment may result
if the speaker installed interfere with daily activities.

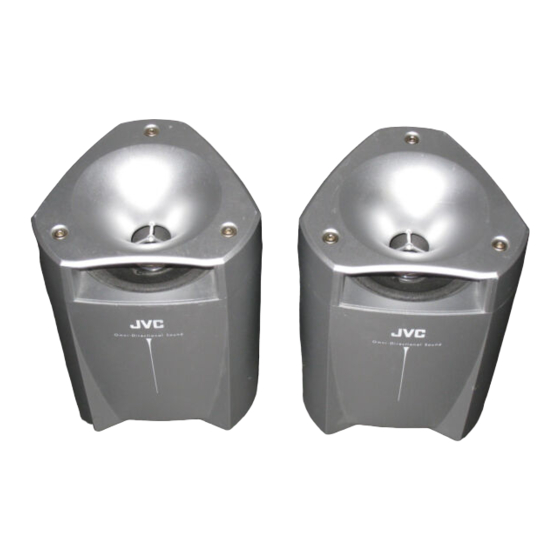

SP-SB100
JVC
INSTRUCTIONS: SPEAKER SYSTEM /
/
Cut, twist and remove the insulation at the end of each
speaker cord.
Insert the speaker cords through the opening as illustrated.
Press and hold the clamp of the speaker terminal, then
insert the core of the speaker cord.
Red / /
Copper / /
/
/

7 Specifications

Type
Speaker unit
Power handling capacity
Impedance
Frequency range
Sound pressure level
Dimensions (W × H × D)
Mass
Accessories
Design and specifications subject to change without notice.
: 1-way bass-reflex type
(Magnetically-shielded type)
: 8 cm cone
: 100 W
: 6 Ω
: 80 Hz – 20 000 Hz
: 75 dB/W•m
: 111.5 mm × 139 mm × 106.5 mm
: 0.52 kg
: Speaker cord (10 m)
