VCOM AX20-B Control Panel Installation Manual

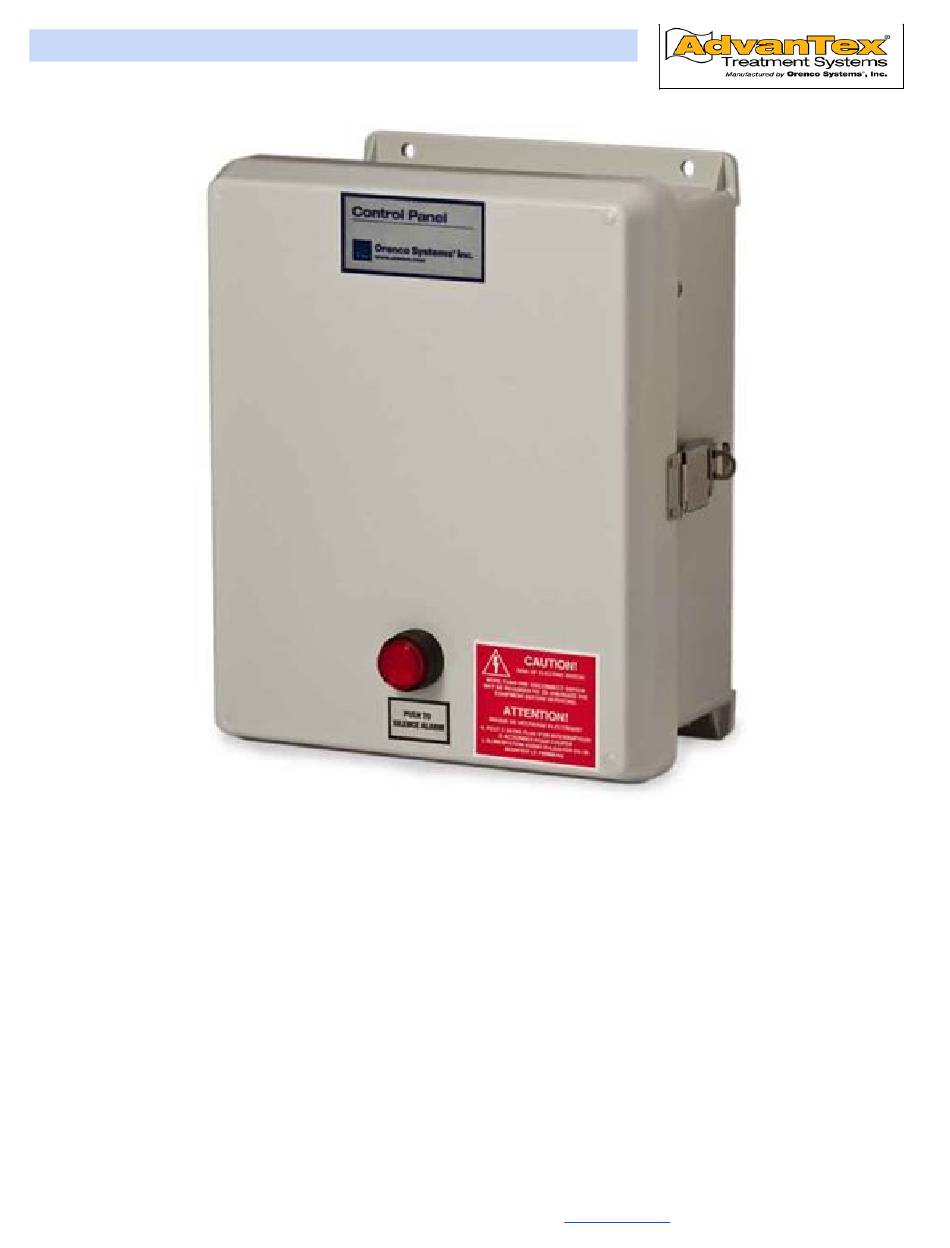

VeriComm AX20-B Control Panel
for Pumped Discharge
Successful installation of an AdvanTex Control Panel and the wiring requires an
understanding of all this information. So, before getting started, please take the
time and read through this manual. Reading this manual and maintaining
current and accurate records will save everyone time, trouble, and money in the
long run. Call the office if you have any questions.
AQWA Inc. 1507 Drexel St. N, Wilson, NC 27893
888-552-2792
www.aqwa.net
info@aqwa.net
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AdvanteX VCOM AX20-B
Summary of Contents for AdvanteX VCOM AX20-B
- Page 1 VeriComm AX20-B Control Panel for Pumped Discharge Successful installation of an AdvanTex Control Panel and the wiring requires an understanding of all this information. So, before getting started, please take the time and read through this manual. Reading this manual and maintaining current and accurate records will save everyone time, trouble, and money in the long run.
-
Page 2: Installing The Control Panel
Each site is different but the rule of thumb is that the physical installation of the Control Panel should be within view of the tank & AdvanTex filter, at a convenient height, normally with the top of the panel set at 5 ft above final grade. - Page 3 VCOM AX20-B Control Panel Installation Manual Installing the Control Panel - Floats and Pumps Power cords for the floats and pumps should be pulled through the cord grips from inside the access riser to the inside of the splice box. Pull enough cord to allow the cords to extend 6” outside the access lid on the top of the external splice box shown below.
- Page 4 VCOM AX20-B Control Panel Installation Manual ***Properly connected wire nuts should not be easily removed, gently pull on each wire nut after installation. If the wirenut pulls free, it must be redone. Only waterproof wire nuts to be used.*** Connection to the House Electrical Panel - Electrical runs from the home electrical panel should always be made by a licensed electrician in coordination with the home builder.
- Page 5 VCOM AX20-B Control Panel Installation Manual Connecting Float and Pump wires to the Control Panel Connect the wires coming from the recirc and discharge external splice boxes to the numbered terminal points in the Control Panel. Refer to the appropriate Float & Splice Box Wiring Diagram for the correct terminal locations for your system.
- Page 6 VCOM AX20-B Control Panel Installation Manual ● All terminal connections should be tested after connection is made by gently pulling on the wire. If the connection is solid, the wire should not pull out of the terminal connection. ● Ensure that the panel is properly grounded and that the breaker and wire size, from the main power panel to the pump, are correctly sized.
- Page 7 VCOM AX20-B Control Panel Installation Manual Ethernet connections require an Ethernet cable (CAT5) run from the House Internet Router Ethernet port to the control panel to connect to the Nport or Lantronics equipment mounted on the inside of the control panel door. The cable must be uncut and unspliced from the panel to the Router port. The CAT5 should be run with extra cable to allow for Router location adjustments and 12”...
- Page 8 VCOM AX20-B Control Panel Installation Manual AQWA Inc. 1507 Drexel St. N, Wilson, NC 27893 888-552-2792 www.aqwa.net info@aqwa.net Page 8...
- Page 9 VCOM AX20-B Control Panel Installation Manual AQWA Inc. 1507 Drexel St. N, Wilson, NC 27893 888-552-2792 www.aqwa.net info@aqwa.net Page 9...
