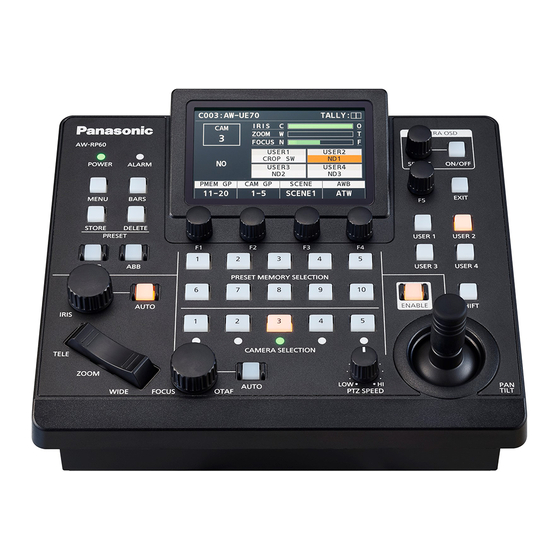

Panasonic AW-RP60G Operating Manual
Remote camera controller
Hide thumbs
Also See for AW-RP60G:
- Operating instructions manual (90 pages) ,
- Manual updating changes (17 pages) ,
- Operating instructions manual (90 pages)
Table of Contents
Advertisement
Quick Links
Operating Guide
Read this document when using the AW-RP60G Remote Camera Controller in
conjunction with AW-UE150 Series 4K Integrated Cameras.
For details of operating Remote Camera Controller AW-RP60G, please visit
the Panasonic website (https://pro-av.panasonic.net/manual/en/index.html),
and refer to the Operating Instructions (HTML or PDF).
W1219JW0 -PS
Remote Camera Controller
AW-RP60G
Model No.
ENGLISH
DVQP2221ZA
Advertisement
Table of Contents
Related Manuals for Panasonic AW-RP60G
Summary of Contents for Panasonic AW-RP60G
- Page 1 Operating Guide Remote Camera Controller AW-RP60G Model No. Read this document when using the AW-RP60G Remote Camera Controller in conjunction with AW-UE150 Series 4K Integrated Cameras. For details of operating Remote Camera Controller AW-RP60G, please visit the Panasonic website (https://pro-av.panasonic.net/manual/en/index.html), and refer to the Operating Instructions (HTML or PDF).
-
Page 2: Table Of Contents
Table of Contents Connecting the Unit to AW-UE150 Series Cameras Connection Example Connections Compatible Functions List Menu (when AW-UE150 is connected) Remote Controller Menu List PAINT SCENE SHUTTER CHROMA GAIN WHITE BALANCE GAMMA BLACK GAMMA KNEE WHITE CLIP DOWNCON DTL MATRIX COLOR CORRECT PEDESTAL... -
Page 3: Connecting The Unit To Aw-Ue150 Series Cameras
Connecting the Unit to AW-UE150 Series Cameras Connecting the Unit to AW-UE150 Series Cameras Connection Example Serial connection with AW-UE150 IP connection with AW-UE150 4K Integrated Camera 4K Integrated Camera AW-UE150 AW-UE150 SERVICE SERVICE LINK RS-422 LINK RS-422 3G SDI OUT G/L IN 3G SDI OUT G/L IN... -
Page 4: Connections
Connecting the Unit to AW-UE150 Series Cameras Connections Set the connection setting to “Serial” or “LAN” in the [CONNECT SETTING] menu. CONNECT CAM SEL MODE CAM1 CAM2 CAM3 CAM4 CAM5 CAM6 CAM7 CAM8 When connecting, observe the following points. Serial connection Connect the <SERIAL CONT 1 to 5>... -
Page 5: Compatible Functions List
Connecting the Unit to AW-UE150 Series Cameras Compatible Functions List There will be functions that are limited or disabled for some of the unit's buttons, dials, and other controls. Be sure to refer to the following table. Color adjustment section User button section Preset memory Menu operation... - Page 6 Connecting the Unit to AW-UE150 Series Cameras ✓ : Enabled Control panel Buttons, dials Remarks ×: Disabled ✓ [IRIS] dial ✓ [ZOOM] button Focus, zoom and iris ✓ [IRIS AUTO] button section ✓ [FOCUS] dial ✓ [FOCUS AUTO] button ✓ [BARS] button Color adjustment sec- ✓...
-
Page 7: Menu (When Aw-Ue150 Is Connected)
Menu (when AW-UE150 is connected) Menu (when AW-UE150 is connected) Remote Controller Menu List When an AW-UE150 4K Integrated Camera is connected, the menu will be as follows. The setting values will vary depending on the con- nected model. Depending on the model, unsupported functions will be displayed as [-]. For details on menu operations, refer to the following sections in the Operating Instructions. -
Page 8: Paint
Menu (when AW-UE150 is connected) PAINT SCENE SCENE Item Setting details SCENE Switches the shooting mode that matches the shooting situation. SHUTTER MODE SPEED ELC LIMIT Item Setting details MODE Selects the shutter mode for the camera. SPEED Selects the shutter speed for the camera. ELC LIMIT Sets the maximum shutter value for ELC operation. -
Page 9: Chroma
Menu (when AW-UE150 is connected) CHROMA LEVEL PHASE Item Setting details LEVEL Sets the color intensity of images. PHASE Finely adjusts the color phase of images. GAIN S.GAIN GAIN AGC MAX Item Setting details S.GAIN Sets the mode for super gain (increased sensitivity). GAIN Adjusts the gain of images. -
Page 10: White Balance
Menu (when AW-UE150 is connected) WHITE BALANCE COLOR MODE R GAIN B GAIN TEMP OFFSET SPEED TARGET R TARGET B Item Setting details MODE Sets the white balance mode. COLOR TEMP Allows you to specify the color temperature between 2000K and 15000K. R GAIN Adjusts the gain of the R channel. -
Page 11: Black Gamma
Menu (when AW-UE150 is connected) BLACK GAMMA BLACK RANGE GAMMA Item Setting details BLACK GAMMA Sets the gamma curve for dark areas. RANGE Sets the maximum level for compression/expansion. Item Setting details Sets the DRS function which performs correction when video with high light/dark contrast is displayed. - 11 -... -
Page 12: Knee
Menu (when AW-UE150 is connected) KNEE AT KNEE MODE POINT SLOPE RESPONSE KNEE SW KNEE PNT KNEE SLP Item Setting details MODE Sets the operating mode for gradation compression (knee). AT KNEE RESPONSE Sets the auto knee response speed. This is enabled only when [MODE] on the [GAMMA] menu is set to other than “HLG”. POINT Sets the compression level (knee point) position for high-brightness video signals. -
Page 13: Dtl
Menu (when AW-UE150 is connected) V DTL M.DTL CORING FREQUENCY LEVEL LEVEL KNEE APE. GAIN(+) GAIN(-) DEPEND. LEVEL SKIN SKIN DTL SW EFFECT Item Setting details M.DTL Adjusts the contour correction level (master). This is enabled when [DTL SW] is “ON”. CORING Sets the level of signal (including noise) that does not activate the detail effect. -
Page 14: Downcon Dtl
Menu (when AW-UE150 is connected) DOWNCON DTL V DTL M.DTL CORING FREQUENCY LEVEL LEVEL KNEE APE. DEPEND. LEVEL Item Setting details M.DTL Adjusts the contour correction level (master) for images down-converted from 4K to HD. This is enabled when [DTL SW] is “ON”. CORING Sets the level of signal (including noise) that does not activate the detail effect for images down-converted from 4K to HD. -
Page 15: Color Correct
Menu (when AW-UE150 is connected) COLOR CORRECT TYPE CORRECT PHASE PHASE PHASE B_Mg B_Mg PHASE PHASE Mg_R Mg_R Mg_R_R Mg_R_R PHASE PHASE R_R_Yl R_R_Yl PHASE PHASE R_Yl R_Yl R_YI_Yl R_Yl_Yl PHASE PHASE Yl_Yl_G Yl_Yl_G PHASE PHASE Yl_G Yl_G PHASE PHASE G_Cy G_Cy - 15 -... - Page 16 Menu (when AW-UE150 is connected) PHASE PHASE Cy_B Cy_B Item Setting details TYPE Selects the type of color matrix. CORRECT Adjusts the saturation and hue. Adjusts the saturation for each color. PHASE Adjusts the hue for each color. SAT B_Mg Adjusts the saturation of the color between blue and magenta.
-
Page 17: Dnr
Menu (when AW-UE150 is connected) Item Setting details SAT B Adjusts blue saturation. PHASE B Adjusts blue hue. Item Setting details Sets the level of the digital noise reduction effect for outputting bright, clear images without noise even at night and in other low-brightness environments. PEDESTAL R PED G PED... -
Page 18: Brightness
Menu (when AW-UE150 is connected) BRIGHTNESS PICTURE FRAME DAY/ LEVEL NIGHT Item Setting details PICTURE LEVEL Sets the target picture level for auto exposure correction. Its setting takes effect when “AUTO” or “ELC” has been selected as the setting for any of the following auto- matic exposure compensation functions. -
Page 19: Function
Menu (when AW-UE150 is connected) FUNCTION USER ASSIGN For details on operations and settings, refer to the following section in the Operating Instructions. “USER ASSIGN” CAMERA INFO SHOOTING D.ZOOM D.ZOOM D.EXT I.ZOOM I.S. A.IRIS A.IRIS SPEED WINDOW Item Setting details Sets the transmittance of the lens’... -
Page 20: Ptz Info1
Menu (when AW-UE150 is connected) PTZ INFO1 For details on operations and settings, refer to the following section in the Operating Instructions. “PTZ INFO1” PTZ INFO2 For details on operations and settings, refer to the following section in the Operating Instructions. “PTZ INFO2”... -
Page 21: Maintenance
Menu (when AW-UE150 is connected) MAINTENANCE RP SETTING For details on operations and settings, refer to the following section in the Operating Instructions. “RP SETTING” RP INITIALIZE For details on operations and settings, refer to the following section in the Operating Instructions. “RP INITIALIZE”... -
Page 22: Pmem/Tmem
Menu (when AW-UE150 is connected) PMEM/TMEM PMEM LIST For details on operations and settings, refer to the following section in the Operating Instructions. “PMEM LIST” SETTING For details on operations and settings, refer to the following section in the Operating Instructions. “SETTING”... -
Page 23: System
Menu (when AW-UE150 is connected) SYSTEM CAMERA For details on operations and settings, refer to the following section in the Operating Instructions. “CAMERA” CONNECT SETTING For details on operations and settings, refer to the following section in the Operating Instructions. “CONNECT SETTING”...
