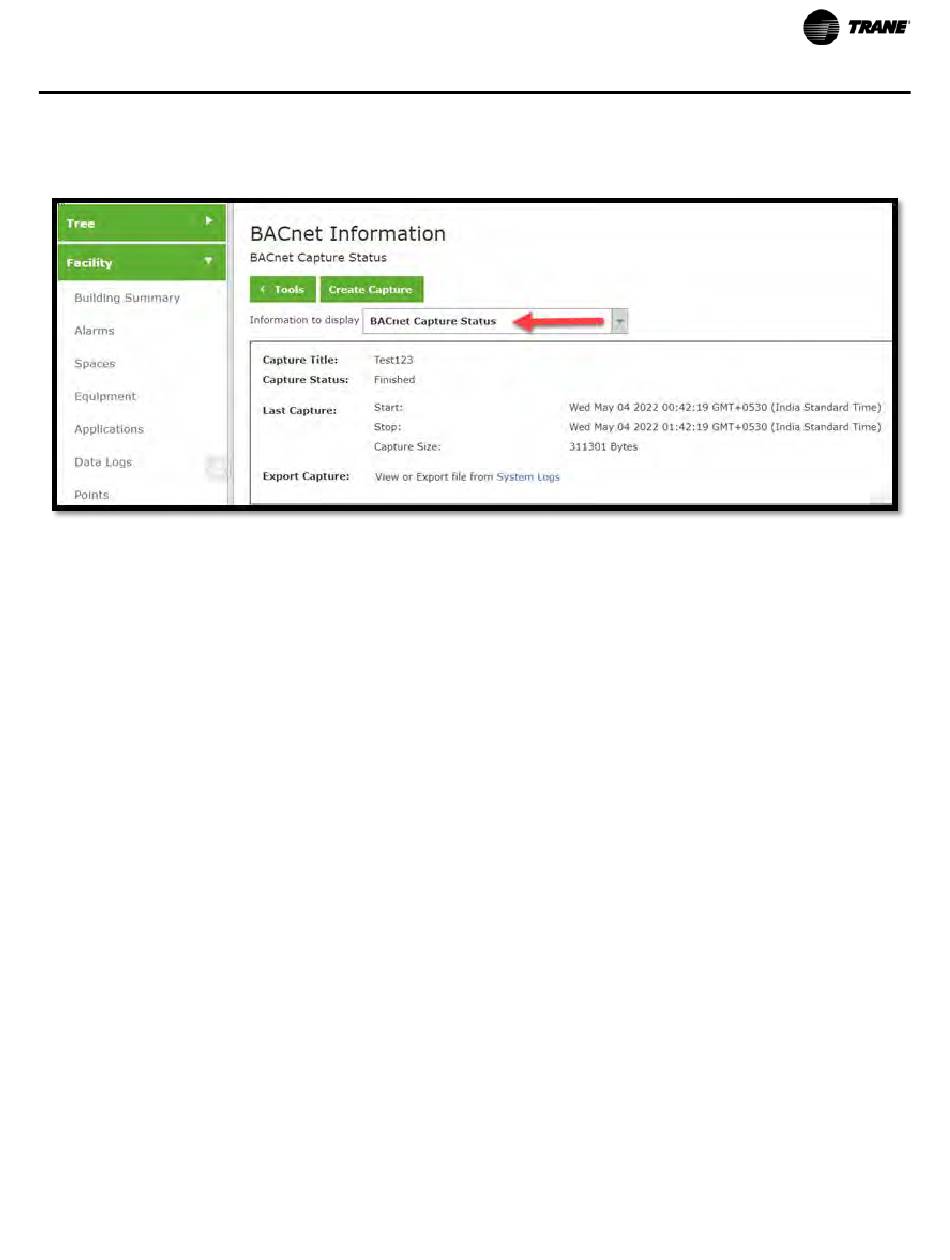

Figure 15. BACnet capture status
Creating a New BACnet
To create a new capture click Create Capture, which opens the create dialog box.
Capture Title:
Capture Link:
You can select multiple links at a time.
Two radio buttons are available. You may start the capture now or can schedule the capture at a later time.
Start capture now:
1 hour or 60 minutes. Maximum limit is 12 hours or 720 minutes.
Schedule the Capture:
of the capture. The default it is 1 hour or 60 minutes. The maximum limit is 12 hours or 720 Minutes. Once
the required fields are filled, click Start Capture or click Schedule Capture if scheduling a capture.
BAS-SVX51L-EN
®
Capture
Provide a name for the capture.
®
Select any active BACnet
Allows you to capture the network now. The duration of the capture by default is
You may schedule the capture by providing the start date and time duration
Trane SerialSpy Protocol Analyzer Software
®
connection (BACnet /IP Link 1, BACnet
®
/MSTP Link 1).
