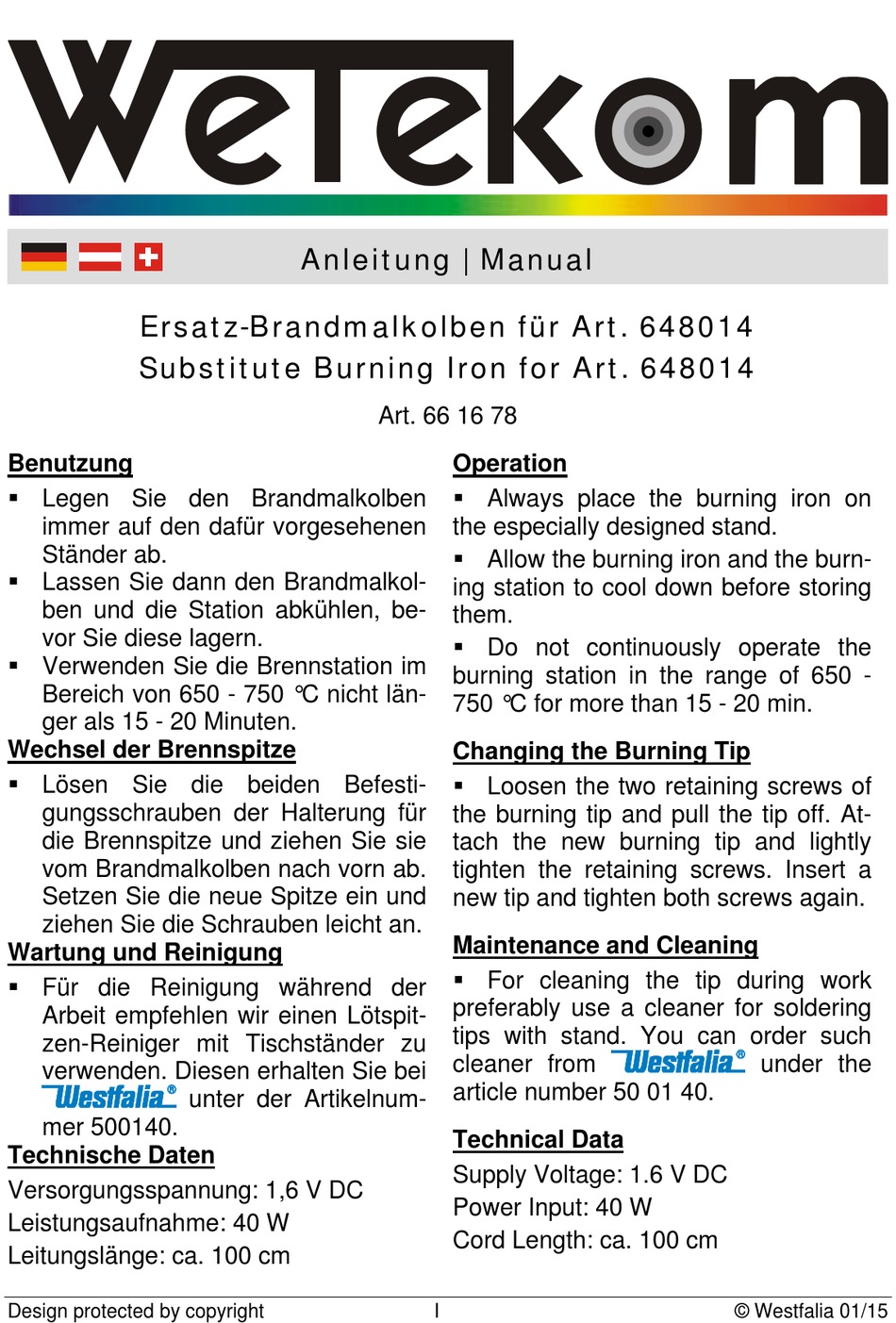

Ersatz-Brandmalkolben für Art. 648014
Substitute Burning Iron for Art. 648014
Benutzung
 Legen Sie den Brandmalkolben
immer auf den dafür vorgesehenen
Ständer ab.
 Lassen Sie dann den Brandmalkol-
ben und die Station abkühlen, be-
vor Sie diese lagern.
 Verwenden Sie die Brennstation im
Bereich von 650 - 750 °C nicht län-
ger als 15 - 20 Minuten.
Wechsel der Brennspitze
 Lösen Sie die beiden Befesti-
gungsschrauben der Halterung für
die Brennspitze und ziehen Sie sie
vom Brandmalkolben nach vorn ab.
Setzen Sie die neue Spitze ein und
ziehen Sie die Schrauben leicht an.
Wartung und Reinigung
 Für die Reinigung während der
Arbeit empfehlen wir einen Lötspit-
zen-Reiniger mit Tischständer zu
verwenden. Diesen erhalten Sie bei
mer 500140.
Technische Daten
Versorgungsspannung: 1,6 V DC
Leistungsaufnahme: 40 W
Leitungslänge: ca. 100 cm
Design protected by copyright
Anleitung | Manual
unter der Artikelnum-
Art. 66 16 78
Operation
 Always place the burning iron on
the especially designed stand.
 Allow the burning iron and the burn-
ing station to cool down before storing
them.
 Do not continuously operate the
burning station in the range of 650 -
750 °C for more than 15 - 20 min.
Changing the Burning Tip
 Loosen the two retaining screws of
the burning tip and pull the tip off. At-
tach the new burning tip and lightly
tighten the retaining screws. Insert a
new tip and tighten both screws again.
Maintenance and Cleaning
 For cleaning the tip during work
preferably use a cleaner for soldering
tips with stand. You can order such
cleaner from
article number 50 01 40.
Technical Data
Supply Voltage: 1.6 V DC
Power Input: 40 W
Cord Length: ca. 100 cm
I
under the
© Westfalia 01/15
