Digi-Sense 3622566 Operation Manual

Operation Manual
ON/OFF
Switch
Sensor
Input

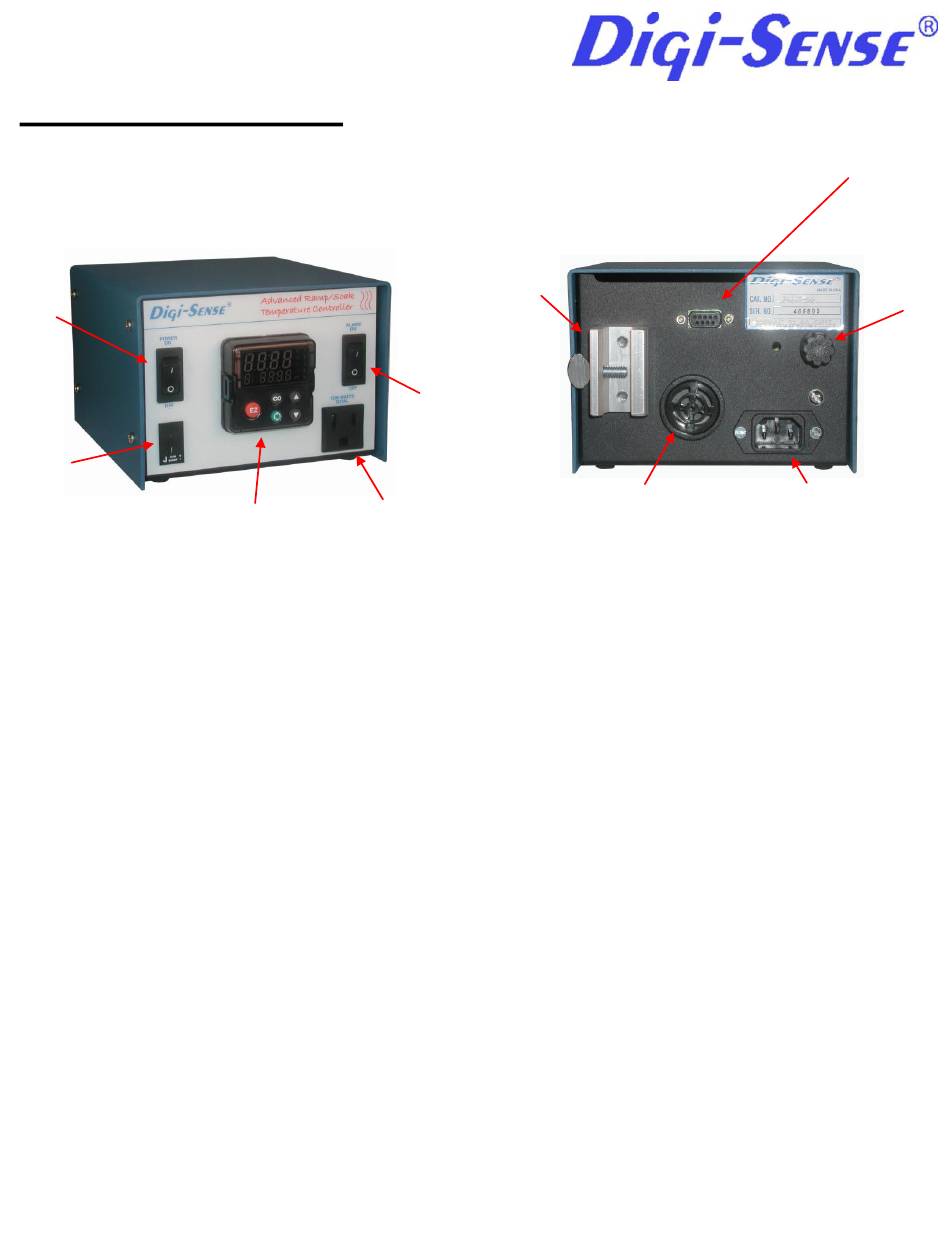

Figure 1
General Description
If your heating process requires several steps, this is the control for you. The Ramp/Soak feature of this control allows up
to a 40-step profile, which can be configured from the provided software. You can profile Temperature, Time, Hold, Soak
and End steps to create the ideal profile for your process. The built in adaptive control technology provides even tighter
control for these demanding applications. Several input types are available. This unit comes with 6' detachable power
cord, communication port, audible alarm function and grid support bracket, which is ideal for fume hood mounting to
maximize bench space.
This control is a microprocessor-based, digital indicating, automatic temperature control with a single input and a single
output. It features an auto-tuning function that allows automatic setting of control parameters with a minimum of user input
required. This family of control accepts a type "J", "K", "T" thermocouples or RTD input depending on the model ordered.
The control automatically sets the PID parameters through a "learning" sequence in the auto-tuning mode. PID
parameters include proportional band, reset/integral and rate/derivative. User-friendly features include automatic LED
indicators to aid in monitoring and setup, as well as dual LED displays for process temperature and set point indication.
This control automatically stores all information in a non-volatile memory.,
Control Features
1. On/Off power switch.
2. On/Off alarm switch.
3. 12-amp output.
4. Control PID with Auto-tune algorithm, solid state relay
5. Circuit protection (fuse)
6. Low profile housing.
12/10
Instruction Notes for 3622566, 3622567, 3622568, 3622569
Digital
Load
Control
Outlet
Module
Grid
Support
ON/OFF
Alarm
Switch
1
Power
Alarm
Inlet
Figure 2
RS-232
Port
Load
Fuse
Rev.1
