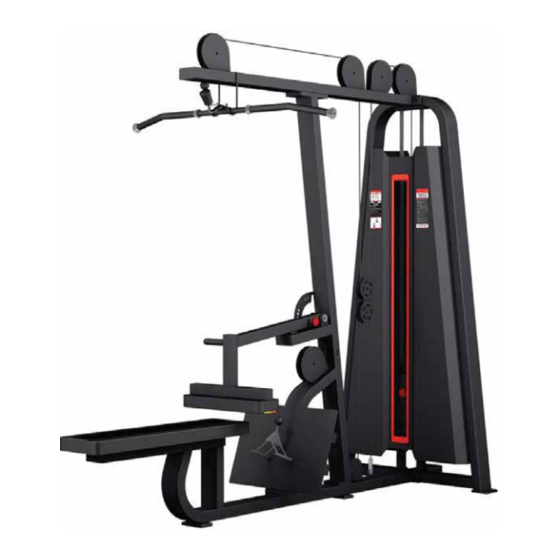

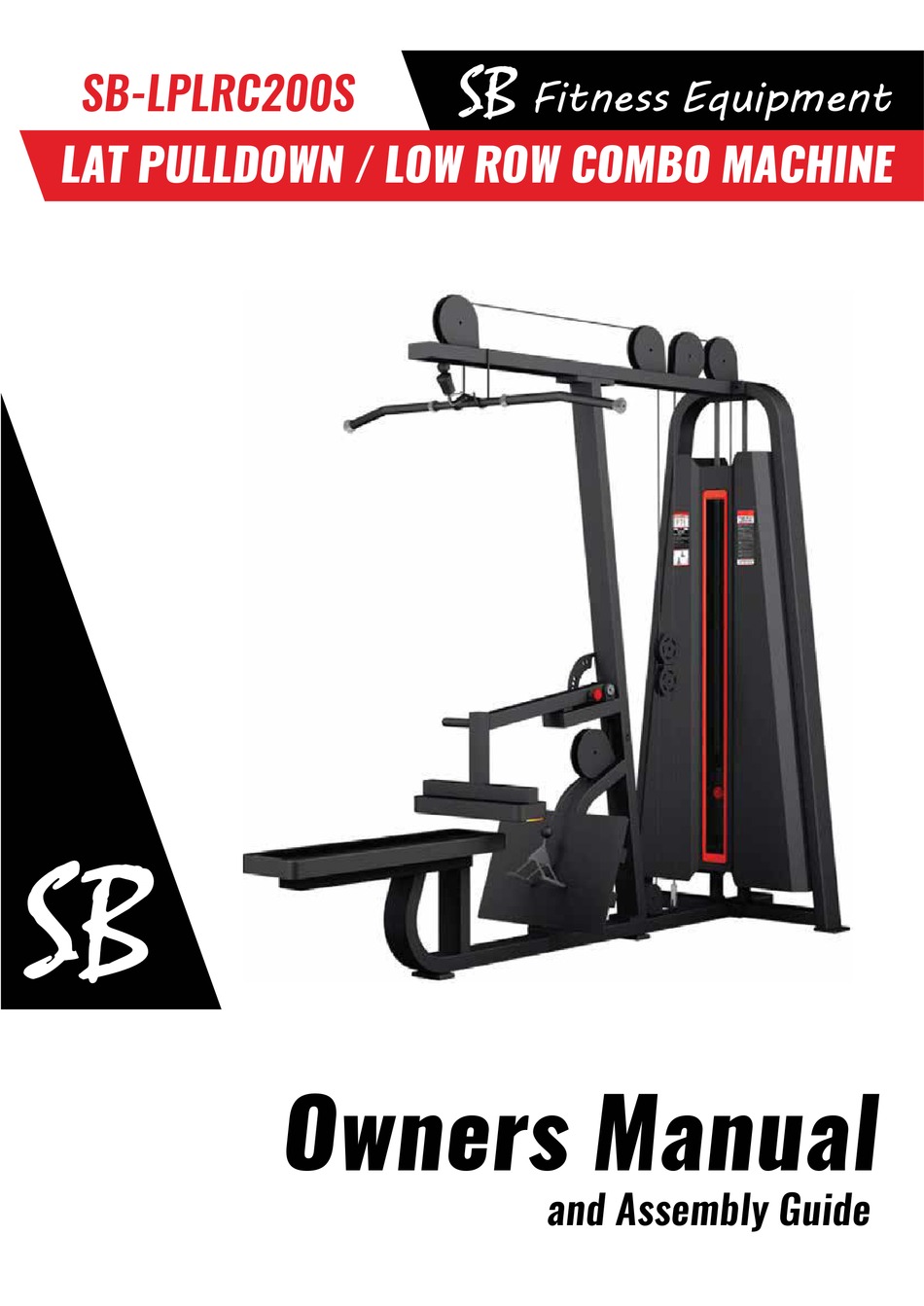

- Page 1 SB-LPLRC200S Fitness Equipment LAT PULLDOWN / LOW ROW COMBO MACHINE Owners Manual and Assembly Guide...
- Page 3 PARTS LIST AND PART NUMBERS...
- Page 4 INSTALL THE WEIGHT STACK FRAME ASSEMBLY(1) TO THE UNDER FRAME ASSEMBLY(4). INSTALL RUBBER FOOT PADS(24) NOW (OPTIONAL).
- Page 5 1.) INSTALL GUIDERODS(7) INTO HOLES LOCATED INSIDE BOTTOM OF WEIGHT STACK FRAME. 2.) SLIDE #32 SPACERS ON FROM TOP OF GUIDE RODS TO HAVE 2 ON EACH GUIDE ROD AT THE BOTTOM. 3.) INSTALL WEIGHT PLATES(29). SMALLEST WEIGHT PLATE IS LAST AS THIS IS THE TOP PLATE.
- Page 6 INSTALL THE SUPPORT UPRIGHT ASSEMBLY TO THE UNDER FRAME ASSEMBLY(4).
- Page 7 INSTALL THE UPPER CONNECTING CROSS BEAM TO THE WEIGHT STACK FRAME AND THE SUPPORT UPRIGHT ASSEMBLY.
- Page 8 1.) INSERT THE CABLE END OF THE LONG CABLE FROM THE BOTTOM SIDE OF THE UPPER CONNECTING CROSS BEAM AND FOLLOW DIAGRAM TO THE TOP PLATE SELECTOR ROD, THEN INSERT AND TIGHTEN SET SCREWS AFTER STEP 2. 2.) INSTALL SHORT CABLE AS SHOWN IN DIAGRAM BY GOING UNDER LARGER LOW-ROW PULLEY AND OVER SMALLER PULLEY.
- Page 9 INSTALL THE ADJUSTABLE LEG PAD SUPPORT(5) TO THE SUPPORT UPRIGHT ASSEMBLY. INSERT DROP PIN INTO SELECTOR HOLES FIRST TO HELP LINE UP #5, #10, #19, AND #21 (PIVOT POINT). THEN ATTACH THE LOW ROW PLATFORM FOOT SUPPORT(6) TO THE BASE OF THE SUPPORT UPRIGHT ASSEMBLY, THEN INSERT #11 BOLT THROUGH ALL HOLES TO SECURE PLATFORM TO THE BASE SUPPORT.
- Page 10 INSTALL THE SEAT PAD(33), LAT PULLDOWN BAR, AND FRONT AND REAR WEIGHT PLATE GUARDS(25 & 26).
- Page 12 INSTALL WEIGHT STACK CABLE WARNING: THE SCREWS AT EACH JOINT OF THE WEIGHT STACK CABLE MUST BE FULLY TIGHTENED...
- Page 13 PRODUCT DESCRIPTION, SPECS, & FEATURES SB FITNESS EQUIPMENT / SB-LPLRC200S 12 12...
- Page 14 12 13...
- Page 15 12 14...
- Page 16 12 15...
- Page 17 12 16...
- Page 18 12 17...
