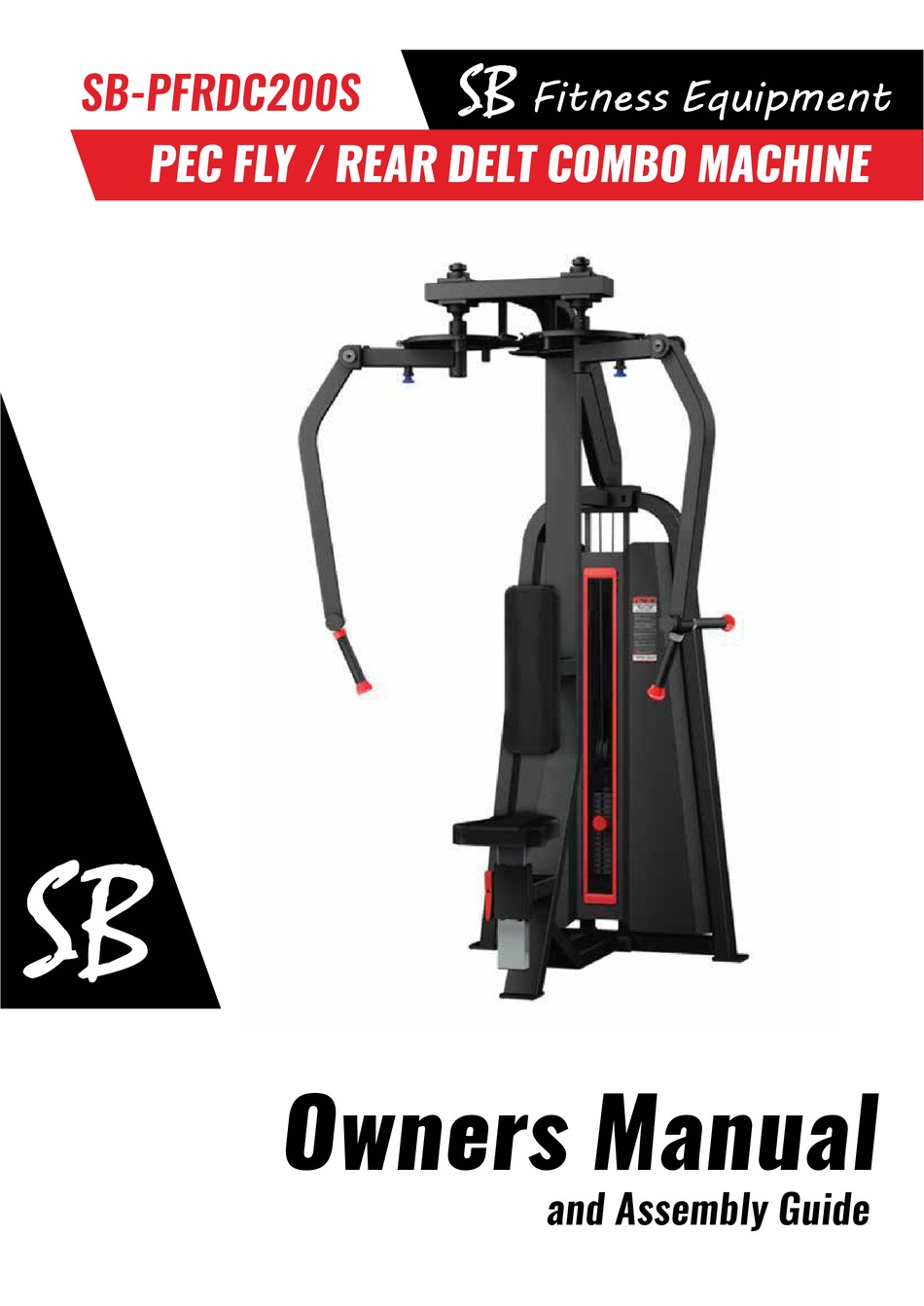

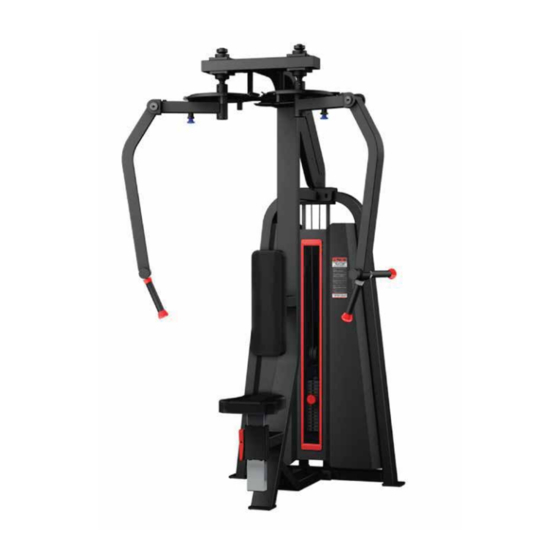

- Page 1 SB-PFRDC200S Fitness Equipment PEC FLY / REAR DELT COMBO MACHINE Owners Manual and Assembly Guide...
- Page 3 PARTS LIST AND PART NUMBERS...
- Page 4 THE WEIGHT STACK FRAME ASSEMBLY(5) TO THE MAIN FRAME ASSEMBLY UPRIGHT AND SEAT MOUNT(1). INSTALL RUBBER FOOT AT THIS TIME. (OPTIONAL)
- Page 5 1.) INSTALL GUIDERODS(7) INTO HOLES LOCATED INSIDE BOTTOM OF WEIGHT STACK FRAME. 2.) SLIDE #32 SPACERS ON FROM TOP OF GUIDE RODS TO HAVE 2 ON EACH GUIDE ROD AT THE BOTTOM. 3.) INSTALL WEIGHT PLATES(29). SMALLEST WEIGHT PLATE IS LAST AS THIS IS THE TOP PLATE. 4.) INSTALL #27 ON TO GUIDE ROD AND INTO TOP PLATE.
- Page 7 INSTALL BACK AND SEAT CUSHIONS(27 & 28). INSTALL FRONT AND REAR WEIGHT STACK GUARDS(25 & 26).
- Page 9 INSTALL WEIGHT STACK CABLE WARNING: THE SCREWS AT EACH JOINT OF THE WEIGHT STACK CABLE MUST BE FULLY TIGHTENED...
- Page 10 PRODUCT DESCRIPTION, SPECS, & FEATURES SB FITNESS EQUIPMENT / SB-PFRDC200S...
- Page 12 SB-PFRDC200S 12 11...
