- Page 1 20 : 00 2 or more estimated people required assembly time...
- Page 2 Ok, let’s get started! Put on mood music! To prevent damage to product, use the clean side of package carton or rug as working surface. In the event of missing or damaged parts, delivery problems etc., please reach out to our team. We will be happy to fix the problem!
-
Page 3: Care Guide
care guide Clean regularly with a soft and dry cloth. To protect finish, avoid use of abrasive cleaners. Wipe up spills immediately. Please! While assembling the product, tighten the bolts up to 50%. Once all parts are in place, only then fully tighten the bolts. -
Page 4: Product Parts
product parts Cabinet Case Left Metal Leg Right Metal Leg Center Metal Leg... -
Page 5: What's Included
what’s included (G) - Bolts (D) - Flat Washer (M6 x 10mm) (Ø20mm x Ø8mm) (H)- Allen Key (E) - Lock Washer (Ø4mm x Ø110mm) (Ø15mm x Ø8mm) (F) - Bolts (I)- Allen Key (M8 x 25mm) (Ø5mm x Ø100mm) - Page 6 assembly instructions Friendly Tip: Take a deep breath going in. This may be a tricky part, but nothing too overwhelming. Just follow these steps to the T and the outcome will be worth it! While assembling the product, tighten the bolts up to 50%. Once all parts are in place, only then fully tighten the bolts.
- Page 7 step 1: Start by turning the cabinet case (A) upside down. Insert the left metal leg (B left) into the metal rods prefixed on the cabinet case. See this image for reference. Left step 2: Next, insert the central metal leg (C) into the middle slot on the left metal leg (B left).
- Page 8 step 3: Now, take the right metal leg (B right) and insert it into the central metal leg (C) and the prefixed metal rods on the cabinet case. Left Right step 4: Once the metal base is complete, it’s time to secure it in place. See the highlighted areas to know where to tighten the bolts.
- Page 9 step 5: To fix the cabinet case (A) to metal legs (B left and right) fasten bolts (F), lock washer (E), and flat washer (D) (in the order D, E, F from bottom to top). Tighten all points using the allen-key (I). step 6: Next, to secure the entire metal base together, see the highlighted areas below to know where to tighten the bolts.
- Page 10 step 7: Insert bolts (G) on all points and tighten them using the allen-key (H). If the door does not appear square or aligned, loosen or tighten the appropriate screws on each case hinge as shown in images.

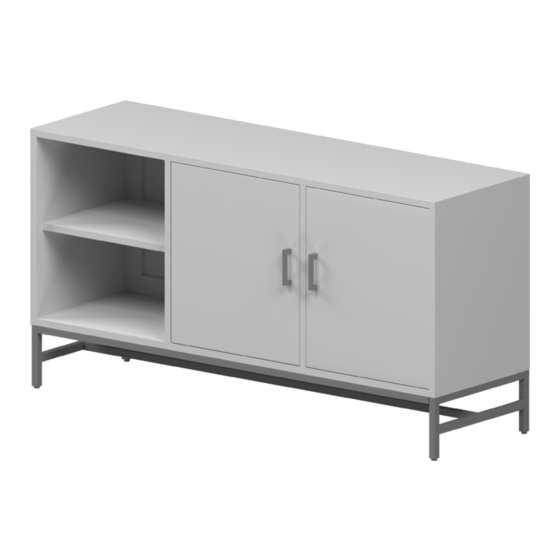

- Page 11 Voila! Your media unit is now assembled and secure!
