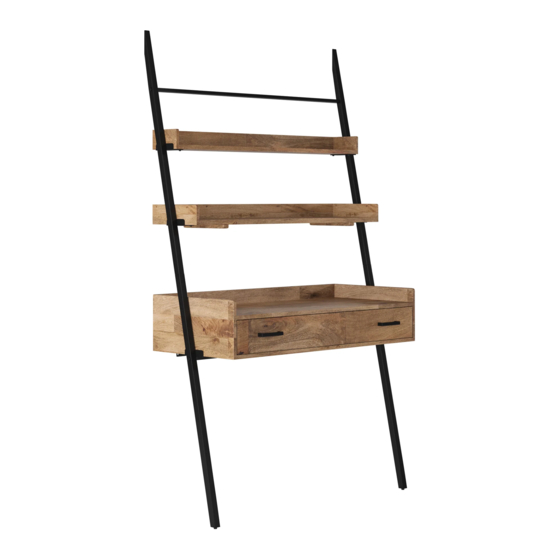

- Page 1 20 : 00 1 or more estimated people required installation time...
- Page 2 Ok, let’s get started! Put on mood music! To prevent damage to product, use the clean side of package carton or rug as working surface for assembly. In the event of missing or damaged parts, delivery problems etc., please reach out to our team. We will be happy to fix the problem!
-
Page 3: Care Guide
care guide Clean regularly with a soft and dry cloth. To protect finish, avoid use of abrasive cleaners. Wipe up spills immediately. Please! While assembling the product, tighten the bolts up to 50%. Once all parts are in place, only then fully tighten the bolts. -
Page 4: Product Parts
product parts A, C B, D Shelf Legs Shelf Legs Drawer Medium Shelf Support Rods Support Rods Small Shelf... -
Page 5: What's Included
what’s included (O)- Allen Key (J) - Flat Washer (Ø4mm x Ø110mm) (Ø20mm x Ø8.5mm) (K) - Lock Washer (P)- Wall Plug (Ø15mm x Ø8mm) (L) - Screw (Q)-Screw (M6 x 16mm) (M) - Screw (R)- Metal Brackets (M6 x 40mm) (S)- Screw (N) - Screw (12mm) - Page 6 assembly instructions Friendly Tip: Take a deep breath going in. This may be a tricky part, but nothing too overwhelming. Just follow these steps to the T and the outcome will be worth it! While assembling the product, tighten the bolts up to 50%. Once all parts are in place, only then fully tighten the bolts.
- Page 7 step 1: Begin assembly by joining the support rods (A, B, C & D) to each other. A with B and C with D as shown in the image below. step 2: Using the allen key (O), tighten screw (N) on holes in the support rods as shown below.
- Page 8 step 3: Now add top and bottom rods (E & F) at the spaces highlighted below. step 4: Using the allen key (O), tighten screw (M) on holes in the support rods as shown below. This will fix the support rods (E & F) to the shelf legs.
- Page 9 step 5: Place small (I) and medium (H) shelves and the drawer (G) at their respective places. Using the allen key (O), tighten screw (L) & washers (J & K) on holes in the support rods as shown below. step 6: Assemble the metal brackets (R) in predrilled holes under the drawers as shown in the image.
-
Page 10: Installation Instructions
installation instructions While assembling the product, tighten the bolts up to 50%. Once all parts are in place, only then fully tighten the bolts. - Page 11 step 1: Next, to install the assembled desk, make marks on the wall with the help of a pencil where you want to make holes. See the highlighted areas to understand step 2: Drill holes and insert the wall plugs (P) completely in the wall. Now insert screws (Q) and tighten using a screwdriver.
- Page 12 step 3: Pull on the ribbon to open the drawer. step 4: Using the allen key (O), detach the handle fitted inside the drawer.
- Page 13 step 5: Place the handle outside the drawer and re-attach using the screws that you just removed and tighten using the allen key (O). Voila! Your desk is now assembled and secure!
