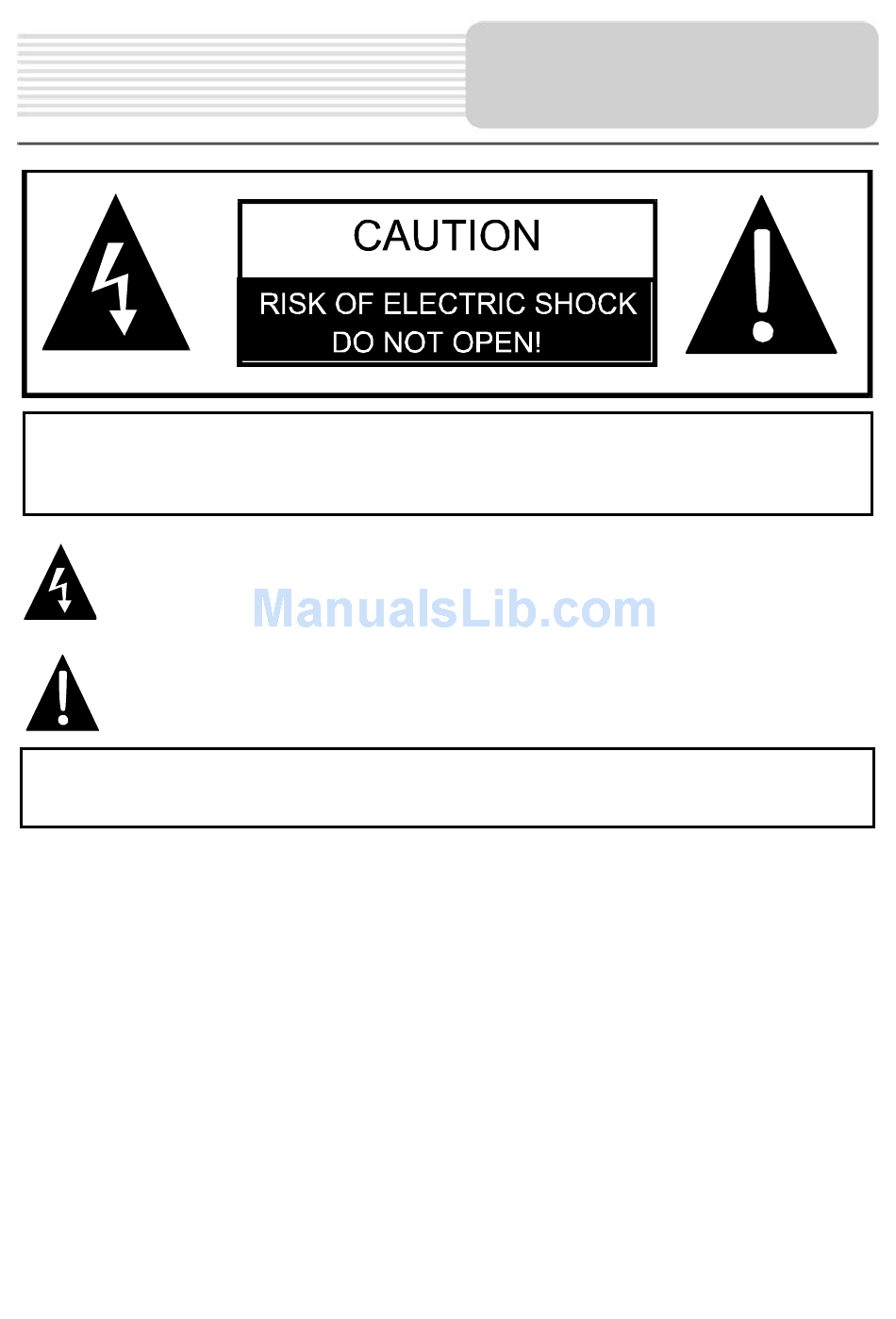

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.
POWER SUPPLY:
Connect the supplied adapter to the side of the unit in the slot marked "DC 5V IN". Plug
the two-prong end of the power cord into an AC outlet or the cigarette lighter socket of
the vehicle. If you have difficulty inserting the plug, turn it over and reinsert it. If the unit
will not be used for a long time, disconnect the plug from the socket.
NOTE:
Before plugging the power cord into an AC outlet or a cigarette lighter socket of vehicle,
make sure that all the connections have been made.
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions. To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or moisture.
Important Safety
Instructions
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nextar X4B
Summary of Contents for Nextar X4B
-
Page 1: Important Safety Instructions
， CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. - Page 2 Important Safety Instructions NOTES Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
- Page 3 Important Safety Instructions Warning Failure to avoid the following potentially hazardous situations may result in injury or property damage. The unit is designed to provide you with route suggestions. It does not reflect road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety or timing while driving.
-
Page 4: Accessories
Accessories Accessories List ITEM NOTE Accessories and their parts numbers are subject to modification without prior notice due to improvements. NAME Owner’s Manual AC Adaptor Car Adaptor Mounting Bracket USB Cable Mounting cradle Touch Pen Dashboard mount disk Pouch... -
Page 5: Table Of Contents
Important Safety Instructions Accessories View of Main Unit System Connections Power Supply Preparation General Setup Playing Music Photo Viewer Bluetooth Function Use of the Mount Accessories Troubleshooting Specifications Contents …………………………………….………..1 ……………………………….………..…...4 ……………………………….…………...6 ……………………………….……….…...8 …………………………….……….….….10 ……………………………….……………12 …………………………….………………16 ……………………………….……………18 ……………………………….…………...20 ……………………………….…………...28 ……………………………….…………...29 ………………………………………….…31... -
Page 6: View Of Main Unit
View of Main Unit Front and Side panel POWER button Press the power button for longer time to enter or exit the standby mode. Volume Control Used to adjust the volume of the headphone and speaker. Headphone Jack Used to connect headphones for private listening. When the headphones are connected to this jack, the speaker will be turned off automatically. - Page 7 Rear View 10. External GPS Antenna Jack Connected to the external antenna (optional). 11. ON/OFF Switch Used to switch power on or off. View of Main Unit...
-
Page 8: System Connections
-50 MB available hard drive space -Available serial port and/or USB Port -256-color display adapter and monitor (16 bit color required) In the near future map updates will be available for down load from our website. Please check www.nextar.com periodically for the information on downloads. -
Page 9: Inserting Sd Card
System Connections Inserting SD Card The unit is designed with SD Card jack which allows you to insert the SD card into the unit as shown below: To remove the card, gently press the card in with your fingernail. The card unlocks and protrudes slightly. -
Page 10: Power Supply Preparation
Attention Place the unit in a proper position for viewing. Disconnect the unit from the Car Adaptor when starting the vehicle. Your portable GPS unit comes with a built-in rechargeable battery. Please see details in the following segment. -
Page 11: Working Conditions And Precautions For The Rechargeable Battery
Working conditions and precautions for the rechargeable battery Battery should only be used and charged when temperatures are between 32-100F. Maintain well-ventilated conditions around the product to avoid overheating. Don’t put the product on a bed, sofa or anything that may block ventilation to the product. ... -
Page 12: General Setup
General Setup System Main Menu When in navigation mode, tap appears asking if you want to exit the program now, as shown below. In the confirmation screen, tap Yes and the system main menu appears. In the main menu, there are five items for selecting. - Page 13 Language in the settings menu to enter Language settings menu for language selecting, as shown below: Tap the buttons to select language. Then tap cancel. Backlight in the settings menu to enter Backlight settings menu for backlight adjusting, as shown below: Tap the first group Tap the second group ...
- Page 14 General Setup Date & Time in the settings menu to enter Date & Time settings menu for changing to the current time zone, as shown below: Tap the buttons to select the proper Time Zone. Tap the Date group to change the corresponding date and tap the group to change the corresponding time.
- Page 15 General Setup Screen in the settings menu, the screen will display as below: This item is used to calibrate the sensitivity of the touch screen. Tap the center of “+” as it moves around the screen. If you touch the center of “+” every time, it will disappear after having moved through a cycle (center→top left corner→bottom left corner→bottom right corner→top right corner).
-
Page 16: Playing Music
Playing Music The unit is designed with SD card slot. You can insert the SD card with MP3, WMA and JPEG files. It supports MP3, WMA and JPEG format files playback. Note: Do not store MP3, WWA and JPEG format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost. - Page 17 Playing Music When you open the play list, the system will look for MP3 files on its SD memory card and create a play list automatically. If the play list consists of more than one screen, tap the up arrow for the previous page and the down arrow for the next page.
-
Page 18: Photo Viewer
Photo Viewer Playing JPEG Files On the main menu, tap to enter the photo viewer main screen, as shown below: In the Photo Viewer main menu, tap , the pictures stored in the memory card will be listed on the screen, as shown below: If the pictures list consists of more than one screen, tap the up arrow for the previous page and the down arrow... - Page 19 Photo Viewer to rotate the picture. to back to previous picture; tap to switch to next picture. to zoom the picture in or out. Double tap to play the picture in full-screen mode; double tap the screen again to return to the Viewer main screen. to return to the pictures list.
-
Page 20: Bluetooth Function
GPS device. Our speech can also be transmitted to mobile phone through the microphone hole of the GPS unit. So people have no need to hold their mobile phone to speak when driving. This is safe and convenient for drivers. - Page 21 Bluetooth Function Step 2: Set the bluetooth function of the GPS unit. In the Bluetooth main screen, tap to enter Bluetooth Manager, as shown below: In the Bluetooth Manager menu, tap to enter Bluetooth Setting menu, as shown below: In the menu, tap the yellow square to select these commands; tap to save your setting.
- Page 22 Step 4: Pair the GPS unit and your mobile phone off. In the list of bluetooth devices, tap your phone’s icon to select it; then tap keyboard screen will appear, as shown below: Use the keyboard to enter a password, for example: 123.
- Page 23 Now the GPS unit and the phone are already connected completely and this can be indicated by a sentence displayed on the top of the Bluetooth main screen: Connected with XX (“XX” stands for your mobile phone).
- Page 24 Bluetooth Function In the menu, tap toggle buttons to make a selected connection active or inactive; tap the to delete the selected note. Disconnect the unit and phone In the Bluetooth Manager menu, tap to disconnect the unit and mobile phone. Telephone Keyboard Note: The telephone keyboard is available only when the unit has connected with a mobile phone.
-
Page 25: Phone Book
When talking, the screen displays as below. to adjust the volume level. toggle button to turn off or on the speaker. to hang up. to return to the bluetooth main menu. to switch to talking in mobile phone; tap it again to switch to talking in the unit. , and then a keyboard appears, use it to input the other numbers, for example: ext.. - Page 26 Bluetooth Function In the phone book, tap select a phone number and tap to delete the selected phone number. to return to the previous menu. Add new number into the book to add new number to the list, the screen will show as below: In the menu, double tap the following blank of the item you want to edit, for example ”Name”, then Name keyboard appears, as shown below.
-
Page 27: Call Record
Bluetooth Function Call Record In the Bluetooth menu, tap to display recent calls, as shown below: to display recent received calls. to display recent dialed numbers. Tap the to display recent missed calls. to delete the selected note; tap to delete all notes. to return to the previous menu. -
Page 28: Use Of The Mount Accessories
Use of the Mount Accessories When using the unit in vehicle, you can use the supplied mount accessories (mount bracket, mount cradle and dash board) to mount the unit in the vehicle. Take the following steps to operate: Slide the mounting cradle onto the end of the mounting bracket. Set the bottom edge of the unit on the bottom of the mounting cradle. -
Page 29: Troubleshooting
Turn up the volume or turn on the sound output. Adjust the brightness of the LCD. Make sure to use the unit out of room; if in the vehicle, you can use the external GPS antenna to solve this problem. - Page 30 Troubleshooting PROBLEM The unit can receive signals now but can’t then; signals received are not stable. Other possibilities: Static or other external interference may cause the player function abnormally. In order to recover normal status, please unplug the power supply cord and then plug it into the outlet again to reset the player.
-
Page 31: Specifications
Specifications TFT screen size 4.3 inches Frequency Response 20Hz～20kHz ≥65dB Audio Signal-to-noise Rate ≤－20dB (1kHz) Audio distortion or noise ≥70dB (1kHz) Channel Separation ≥80dB (1kHz) Dynamic Range AC 100-240V ～ 50/60Hz; DC 5V Power Power Consumption < 8W Dimensions 131mmX83mmX23mm (L*W*D) Weight About 0.25kg DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE...
