CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.
POWER SUPPLY:
Connect the supplied adapter to the side of the unit in the slot marked "DC 5V IN". Plug
the two-prong end of the power cord into an AC outlet or the cigarette lighter socket of
the vehicle. If you have difficulty inserting the plug, turn it over and reinsert it. If the unit
will not be used for a long time, disconnect the plug from the socket.
NOTE:
Before plugging the power cord into an AC outlet or a cigarette lighter socket of vehicle,
make sure that all the connections have been made.
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions. To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or moisture.
Important Safety
Instructions
1
Advertisement
Table of Contents
Related Manuals for Nextar X4-T
Summary of Contents for Nextar X4-T
-
Page 1: Important Safety Instructions

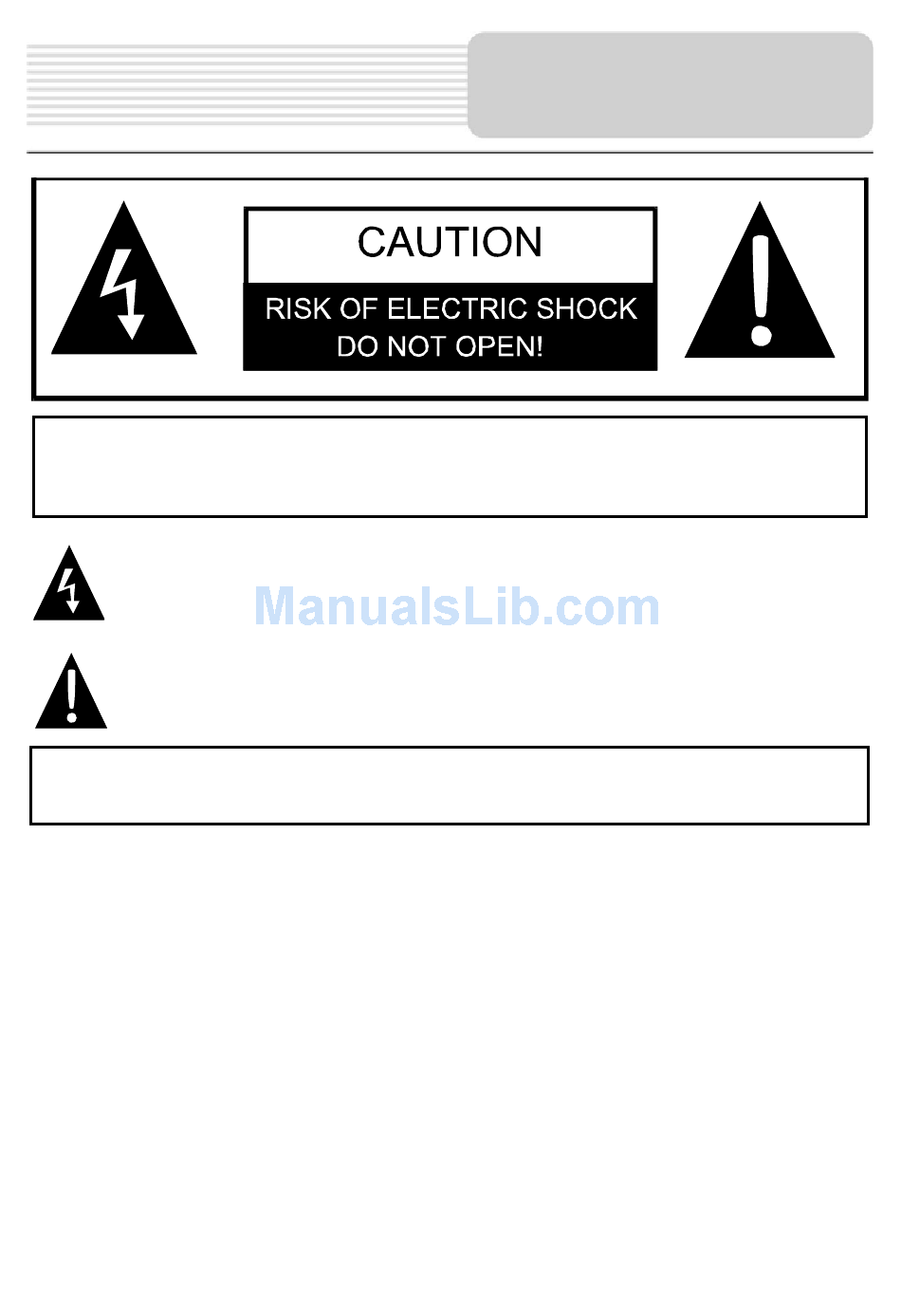

， CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. - Page 2 Important Safety Instructions NOTES Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
- Page 3 UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety [Note-Consider referencing specific UL standard]. UL Certification does not cover the performance or reliability of the GPS hardware and GPS operating software.
-
Page 4: Accessories
Accessories Accessories List ITEM NOTE Accessories and their parts numbers are subject to modification without prior notice due to improvements. NAME Owner’s Manual AC Adaptor Car Adaptor Mounting Bracket USB Cable Mounting cradle Touch Pen Dashboard mount disk Pouch... -
Page 5: Table Of Contents
Contents …………………………………….………..1 Important Safety Instructions ……………………………….………..…...4 Accessories ……………………………….…………...6 View of Main Unit ……………………………….……….…...7 System Connections …………………………….……….……….9 Power Supply Preparation ……………………………….……………11 General Setup …………………………….………………15 Playing Music ……………………………….……………17 Photo Viewer ……………………………….…………...19 Use of the Mount Accessories ……………………………….…………...20 Troubleshooting ……………………………….…………...22 Specifications... -

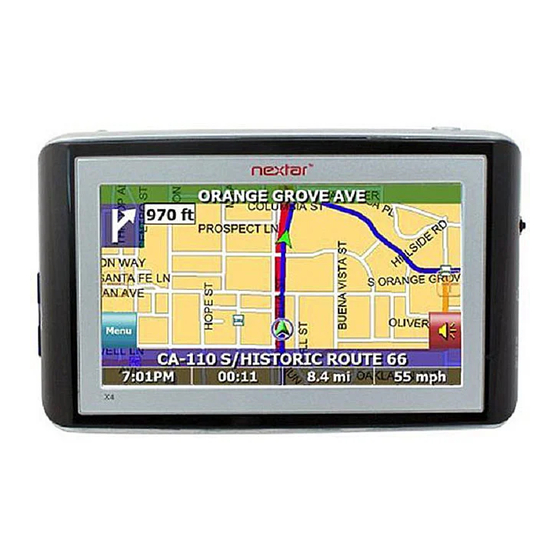

Page 6: View Of Main Unit
View of Main Unit POWER button Press the power button for longer time to enter or exit the standby mode. Volume Control Used to adjust the volume of the headphone and speaker. Earphone Jack Used to connect earphones for private listening. When the earphones are connected to this jack, the speaker will be turned off automatically. -
Page 7: System Connections
-Available serial port and/or USB Port -256-color display adapter and monitor (16 bit color required) In the near future map updates will be available for down load from our website. Please check www.nextar.com periodically for the information on downloads. System Connections... -
Page 8: Inserting Sd Card
System Connections Inserting SD Card The unit is designed with SD Card jack which allows you to insert the SD card into the unit as shown below: To remove the card, gently press the card in with your fingernail. The card unlocks and protrudes slightly. -
Page 9: Power Supply Preparation
Attention Place the unit in a proper position for viewing. Disconnect the unit from the Car Adaptor when starting the vehicle. Your portable GPS unit comes with a built-in rechargeable battery. Please see details in the following segment. Power Supply... -
Page 10: Charging The Battery Pack
Power Supply Preparation Working conditions and precautions for the rechargeable battery Battery should only be used and charged when temperatures are between 32°-100°F. Maintain well-ventilated conditions around the product to avoid overheating. Don’t put the product on a bed, sofa or anything that may block ventilation to the product. When the battery is weak, an indication menu will appear on the LCD screen and about one minute later, the player will power OFF automatically. -
Page 11: System Main Menu
System Main Menu When in navigation mode, tap appears asking if you want to exit the program now, as shown below. In the confirmation screen, tap Yes and the system main menu appears. In the main menu, there are four items for selecting. Touch the corresponding item to enter. - Page 12 General Setup Language in the settings menu to enter Language settings menu for language selecting, as shown below: Tap the buttons to select language. Then tap cancel. Backlight in the settings menu to enter Backlight settings menu for backlight adjusting, as shown below: Tap the first group Tap the second group...
- Page 13 Date & Time in the settings menu to enter Date & Time settings menu for changing to the current time zone, as shown below: Tap the buttons to select the proper Time Zone. Tap the Date group to change the corresponding date and tap the group to change the corresponding time.
- Page 14 General Setup Screen in the settings menu, the screen will display as below: This item is used to calibrate the sensitivity of the touch screen. Tap the center of “+” as it moves around the screen. If you touch the center of “+” every time, it will disappear after having moved through a cycle (center→top left corner→bottom left corner→bottom right corner→top right corner).
-
Page 15: Playing Music
The unit is designed with SD card slot. You can insert the SD card with MP3 and WMA files. It supports MP3, WMA format files playback. Note: Do not store MP3 and WMA format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost. - Page 16 Playing Music When you open the play list, the system will look for audio files on its SD memory card and create a play list automatically. If the play list consists of more than one screen, tap the up arrow for the previous page and the down arrow In the play list, double tap the songs to start playback.
-
Page 17: Playing Jpeg Files
Photo Viewer The unit is designed with SD card slot. You can insert the SD card with JPEG files. It supports JPEG format files playback. Note: Do not store JPEG format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost. - Page 18 Photo Viewer If the pictures list consists of more than one screen, tap the up arrow previous page and the down arrow menu. Tap a picture to select it and tap In the pictures list, double tap a picture to play it on screen, as shown below. On the playback screen, the Photo Viewer has following playback features: to rotate the picture.
-
Page 19: Use Of The Mount Accessories
When using the unit in vehicle, you can use the supplied mount accessories (mount bracket, mount cradle and dash board) to mount the unit in the vehicle. Take the following steps to operate: Slide the mounting cradle onto the end of the mounting bracket. Set the bottom edge of the unit on the bottom of the mounting cradle. -
Page 20: Troubleshooting
Troubleshooting Take steps described in the tables below to solve simple problems before contacting customer service. If you suspect something wrong with the unit, immediately turn the power off and disconnect the power connector from the unit. Never try to repair the unit yourself because it is dangerous to do so. - Page 21 PROBLEM The unit can receive signals now but can’t then; signals received are not stable. Other possibilities: Static or other external interference may cause the player function abnormally. In order to recover normal status, please unplug the power supply cord and then plug it into the outlet again to reset the player.
-
Page 22: Specifications
Specifications TFT screen size 4.3 inches Frequency Response 20Hz～20kHz ≥65dB Audio Signal-to-noise Rate ≤－20dB (1kHz) Audio distortion or noise ≥70dB (1kHz) Channel Separation ≥80dB (1kHz) Dynamic Range AC 100-240V ～ 50/60Hz; DC 5V Power Power Consumption < 8W Dimensions 131mmX83mmX23mm (L*W*D) Weight About 0.25kg DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE...
