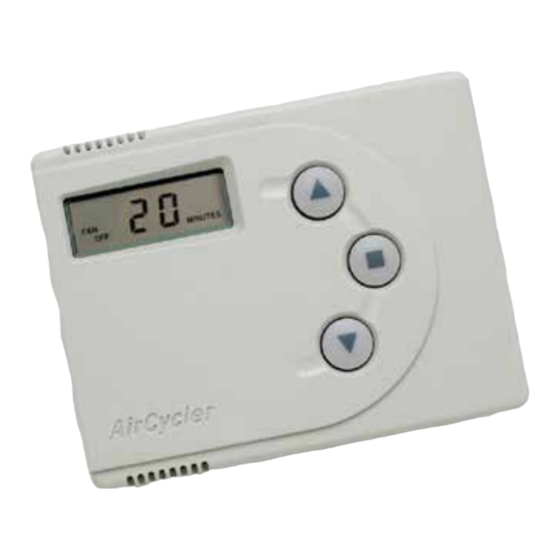

Digital programmable furnace fan timer

Advertisement

Quick Links

Ventilation Products
AirCycler® FRV
Installation & User's Guide
VENTILATION MADE BREEZY!™
a breeze to install • a breeze to use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRV and is the answer not in the manual?

Questions and answers

Summary of Contents for AirCycler FRV

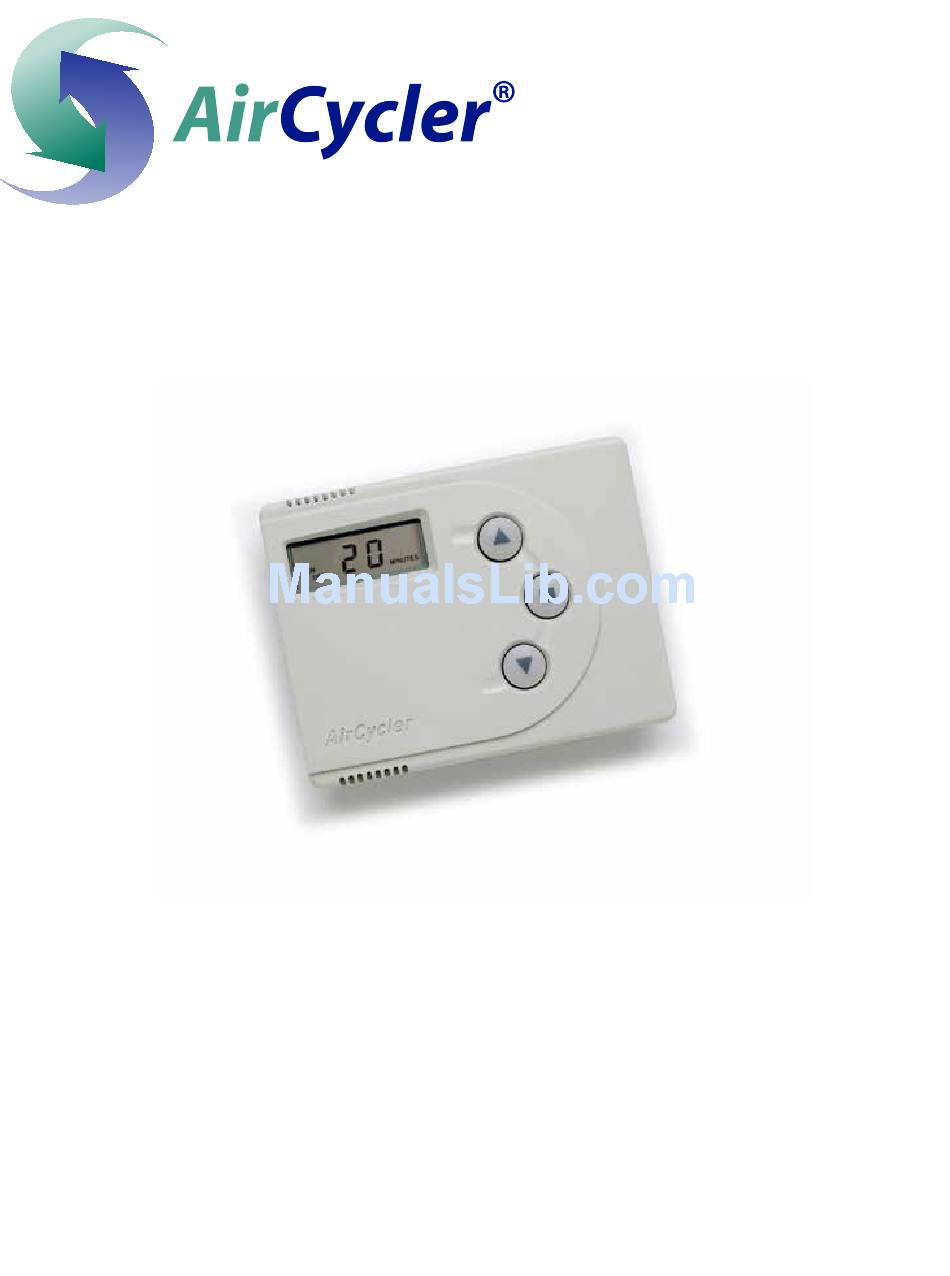

  • Page 1 Ventilation Products AirCycler® FRV Installation & User’s Guide VENTILATION MADE BREEZY!™ a breeze to install • a breeze to use...
  • Page 2 Figure 1 APPLICATIONS Digital Programmable Furnace Fan timer The AirCycler® automatically turns on the furnace fan for a set period of time only when it detects the system has been inactive for a set period of time. VENTILATION By adding a fresh air source to the return side of the air handler, the existing HVAC system can be used to provide venti- lation.
  • Page 3 The AirCycler will not operate without these two connections. The wires (R, C, W & Y ) from the air handler to the thermostat can run parallel with the wiring from the AirCycler® to the air handler. The fan wire (G) needs to be interrupted by the AirCycler®. Some thermostats do not require a (C) connection.
  • Page 4 INSTALLATION INSTRUCTIONS 1.0 CONTROLLER LOCATION The AirCycler® can be installed anywhere in your home. It can be installed near a thermostat or out of view on/near the air handler unit. The wiring configuration is flexible. Warning: Before installing the AirCycler®, turn off all power to the furnace. There may be more than one power to dis- connect.
  • Page 5 1. Press the Mode Key. VENT OFF will flash. 2. Use the Increase or Decrease Keys to change the VENT OFF time. 3.5 SAVE SETTINGS After configuring the AirCycler®, press the Mode Key again to save settings and to enter into Operating Mode.
  • Page 6 4.1 POWERING OFF Warning: It is not recommended to turn off the AirCycler® if the unit is used as a ventilation controller. The AirCycler® can be turned off during extended vacation periods or when the windows are open. It is very important to turn the Air- Cycler®...
  • Page 7 6. Verify that wiring conforms to wiring diagram. 7. Make sure top is firmly seated in the base. Problem: AirCycler® FR-V turns furnace fan on and off, but the motorized damper does not cycle. Solution Check: 1. Confirm that the AirCycler® is providing a 24 VAC signal to the motorized damper.
