SERVICE BULLETIN SB3059
Rev A 12/08
®
FUSION

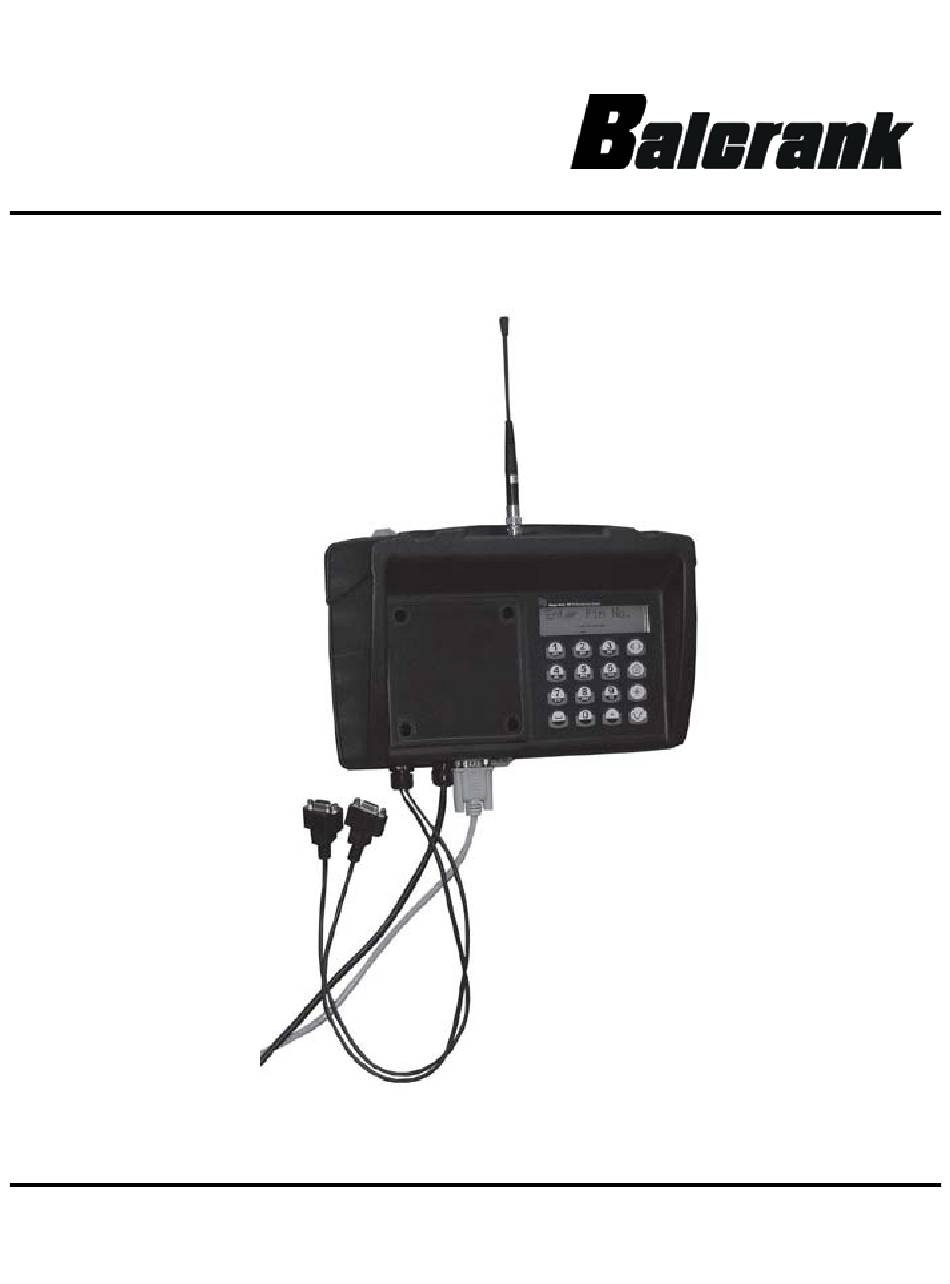

MASTER KEYPAD
Model 3110-013
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
OPERATION, INSTALLATION,
MAINTENANCE AND REPAIR GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUSION 3110-013 and is the answer not in the manual?

Questions and answers

Summary of Contents for Balcrank FUSION 3110-013

  • Page 1 SERVICE BULLETIN SB3059 Rev A 12/08 ® FUSION MASTER KEYPAD Model 3110-013 Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE...
  • Page 2: Questions Or Service Assistance

    Balcrank Products, Inc. assume any liability arising out of the application and use of the equipment described. Should the equipment be used in a manner not specified by Balcrank Products, Inc., the protection provided by the equipment may be impaired.
  • Page 3: Table Of Contents

    Table of Contents Disclaimer ....................Inside Front Cover Questions or Service Assistance ...............Inside Front Cover Product Identification Information ..............Inside Front Cover Table of Contents ......................... 3 BEFORE YOU BEGIN ......................4 Product Unpacking and Inspection ..................4 MOUNTING MASTER KEYPAD ...................5 SPECIFICATIONS ........................5 FCC Certification .......................5 MASTER KEYPAD CONNECTIONS ..................6 DESCRIPTION of MASTER KEYPAD KEYS ...............7...
  • Page 4: Before You Begin

    BEFORE YOU BEGIN Product Unpacking and Inspection NOTE: If damage to the shipping container is evident upon receipt, request the carrier to be present when the products are unpacked Upon receipt of the products, perform the following unpacking and inspection procedures: Follow any instructions that may be marked on the exterior.
  • Page 5: Mounting Master Keypad

    MOUNTING MASTER KEYPAD The Master Keypad should be mounted upright with the antenna pointing upward, near a 120VAC electrical outlet. The Keypad should be mounted to a structurally sound wall using the three holes in the Keypad back plate. Mounting height should be 5 to 6 feet for consistent access. Care should be taken to avoid mounting the keypad behind any steel objects that may block the RF signals from Hoses/Meters.
  • Page 6: Master Keypad Connections

    MASTER KEYPAD CONNECTIONS 9-Pin PC Connector Serial Connection to “O” indicates Cable to Host Optional Printer (no markings on cable) There are two nine-pin cables on the bottom of the Master Keypad. The cable without any markings is the Serial Connection to the Host. The cable marked with an “O”...
  • Page 7: Description Of Master Keypad Keys

    Description of Central Control Keypad Keys Master Keypad Screen Keypad Keypad Keys Scroll Key: Used to select options on the active display Home Key: Pressing this key returns the display to the default screen display Backspace Key: Used to backspace when entering data Enter Key: Used to enter data and move to the next screen Space Key: Used to enter a space character when entering data Alphanumeric Keys: Used to enter numbers and letters...
  • Page 8: System Configurations

    SYSTEM CONFIGURATION The PC is used to configure the system entities. The system configuration is then sent from the PC to the master keypad which then sends the system configuration to the keypads via RF communications. The Master Keypad handles the communications management between the PC, Host, and the Dispense Keypads.
  • Page 9: Set Time And Date

    Setting the Time and Date The Master Keypad provides the time and date stamp for each WO result. The Time and Date must be set on the Master Keypad before the system can be used. 1. On the Master Keypad enter the Supervisor Pin No. (default 0000) and press the Check box 2.
  • Page 10: Configuration Of Work Order Validation

    CONFIGURATION of WORK ORDER VALIDATION 1. On the Master Keypad enter the Supervisor Pin ID (default 0000) and press Enter 2. Use the Scroll key to move the cursor to CNF. 3. Press Enter to select the CNF menu. 4. Continue to press Enter until the “WO Valid.
  • Page 11: Configuration Of Dispense Results Archiving

    CONFIGURATION of DISPENSE RESULTS ARCHIVING 1. On the Master Keypad enter the Supervisor Pin ID (default 0000) and press Enter 2. Use the Scroll key to move the cursor to CNF. 3. Press Enter to select the CNF menu. 4. Continue to press Enter until the “WO archived”...
