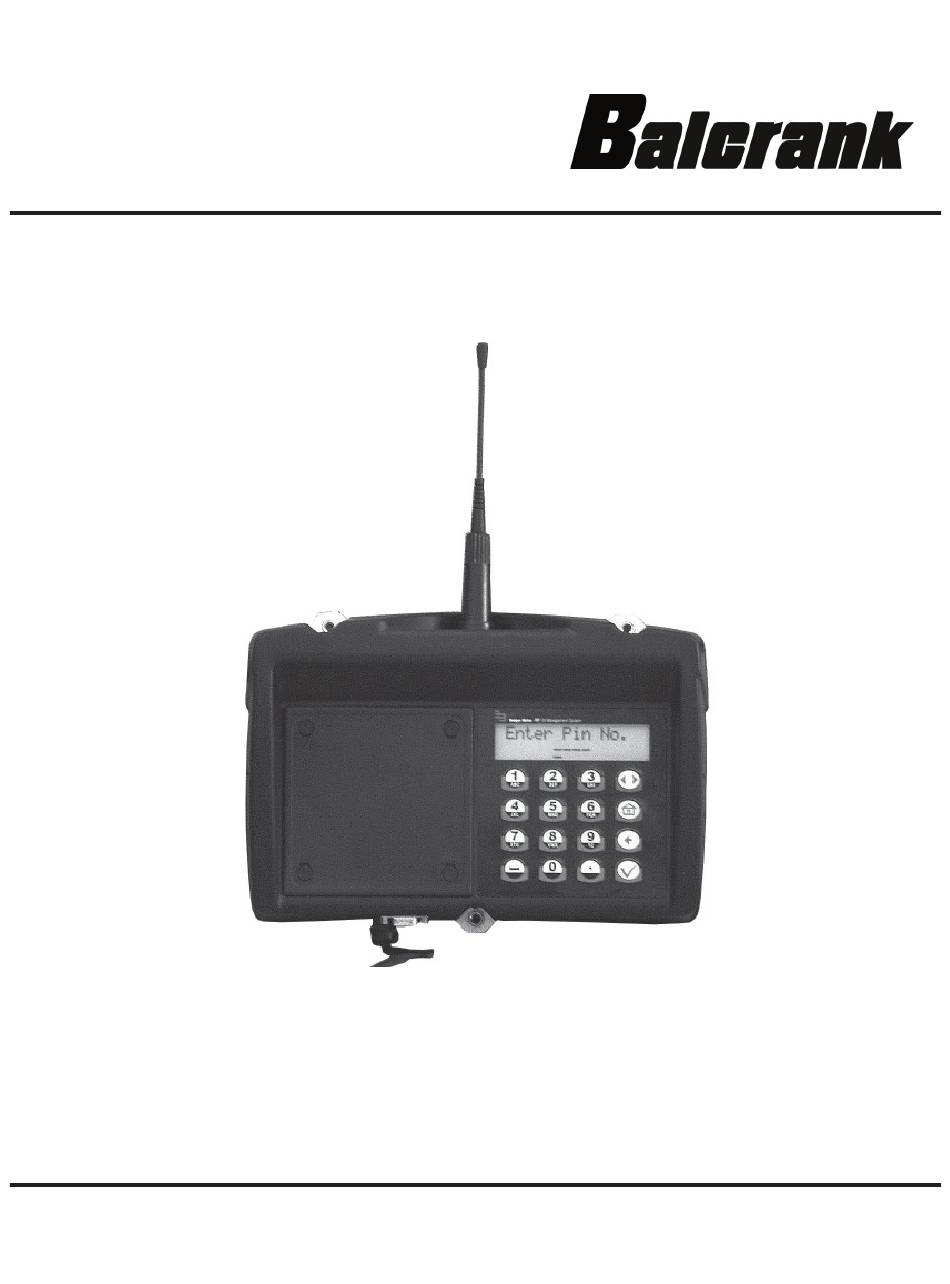

- Page 1 SERVICE BULLETIN SB3060 Rev A 12/08 ® FUSION ZONE KEYPAD Model 3110-014 Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE...
-
Page 2: Questions Or Service Assistance
Balcrank Products, Inc. assume any liability arising out of the application and use of the equipment described. Should the equipment be used in a manner not specified by Balcrank Products, Inc., the protection provided by the equipment may be impaired. -
Page 3: Table Of Contents
Table of Contents Disclaimer ....................Inside Front Cover Questions or Service Assistance ...............Inside Front Cover Product Identification Information ..............Inside Front Cover BEFORE YOU BEGIN ......................4 Product Unpacking and Inspection ..................4 MOUNTING ZONE KEYPAD ....................5 Specifications ........................5 FCC Certification .......................5 DESCRIPTION of ZONE KEYPAD KEYS ................6 OPERATOR SECTION ......................7 Default Screen .........................7 Operation - Dispense Order Process ................8... -
Page 4: Before You Begin
BEFORE YOU BEGIN Product Unpacking and Inspection NOTE: If damage to the shipping container is evident upon receipt, request the carrier to be present when the products are unpacked Upon receipt of the products, perform the following unpacking and inspection procedures: Follow any instructions that may be marked on the exterior. -
Page 5: Mounting Zone Keypad
MOUNTING ZONE KEYPAD The Zone Keypad should be mounted upright with the antenna pointing upward, near a 120VAC electrical outlet. The Keypad should be mounted to a structurally sound wall using the three holes in the Keypad back plate. Mounting height should be 5 to 6 feet for consistent access. Care should be taken to avoid mounting the keypad behind any steel objects that may block the RF signals from Hoses/Meters. -
Page 6: Description Of Zone Keypad Keys
DESCRIPTION OF ZONE KEYPAD KEYS Zone Keypad Screen Keypad Keypad Keys Scroll Key: Used to select options on the active display Home Key: Pressing this key returns the display to the default screen display Backspace Key: Used to backspace when entering data Enter Key: Used to enter data and move to the next screen Space Key: Used to enter a space character when entering data Alphanumeric Keys: Used to enter numbers and letters... -
Page 7: Operator Section
OPERATOR SECTION Default Screen The default screen shows the software version number for informational purposes only. NOTE: Actual version may not be the same as shown on this screen. The default screen alternates between the system version screen and the Enter Pin No. screen. -
Page 8: Operation - Dispense Order Process
Operation - Dispense Order Process The Dispense Keypad is used by the operator to select a dispense order. The Dispense Keypad verifies the User Pin Id before access to a pending Work Order is allowed. Enter Pin No. Screen To dispense fluid, the operator enters his/her 4-digit Pin No. Press the Enter key to continue. -
Page 9: Registration Or License Plate Screen (Optional)
If the Work Order number is not valid then “WO Refused” appears on screen. Press Backspace to clear the error and enter a valid Work Order number. Registration or License Plate Screen (Optional) Enter the Registration number of the vehicle. Enter up to 10 alphanumeric characters. -
Page 10: Product Screen
Product Screen There is no data entry required for this screen. This screen displays for three (3) seconds and then it goes to the Enter Quantity screen. Enter Quantity Screen On this screen the amount of fluid from the Work Order is displayed. -
Page 11: System Messages On Keypad Screens
System Messages on Keypad Screens Wrong Hose The Hose selected is not a valid Hose for the Fluid assigned for fluid. for this Work Order. Select a different Hose or a different Dispense Keypad. System communication is in progress. Communication. Wait. -
Page 12: Warranty Information
All Balcrank equipment sold by authorized Balcrank distributors is warranted to their original customer to be free from defects in materials and workmanship for a period of one year from the date of sale to that customer. Selected Balcrank equipment carries warranty terms for a more extended period as defined in the Balcrank Lubrication Equipment &...
