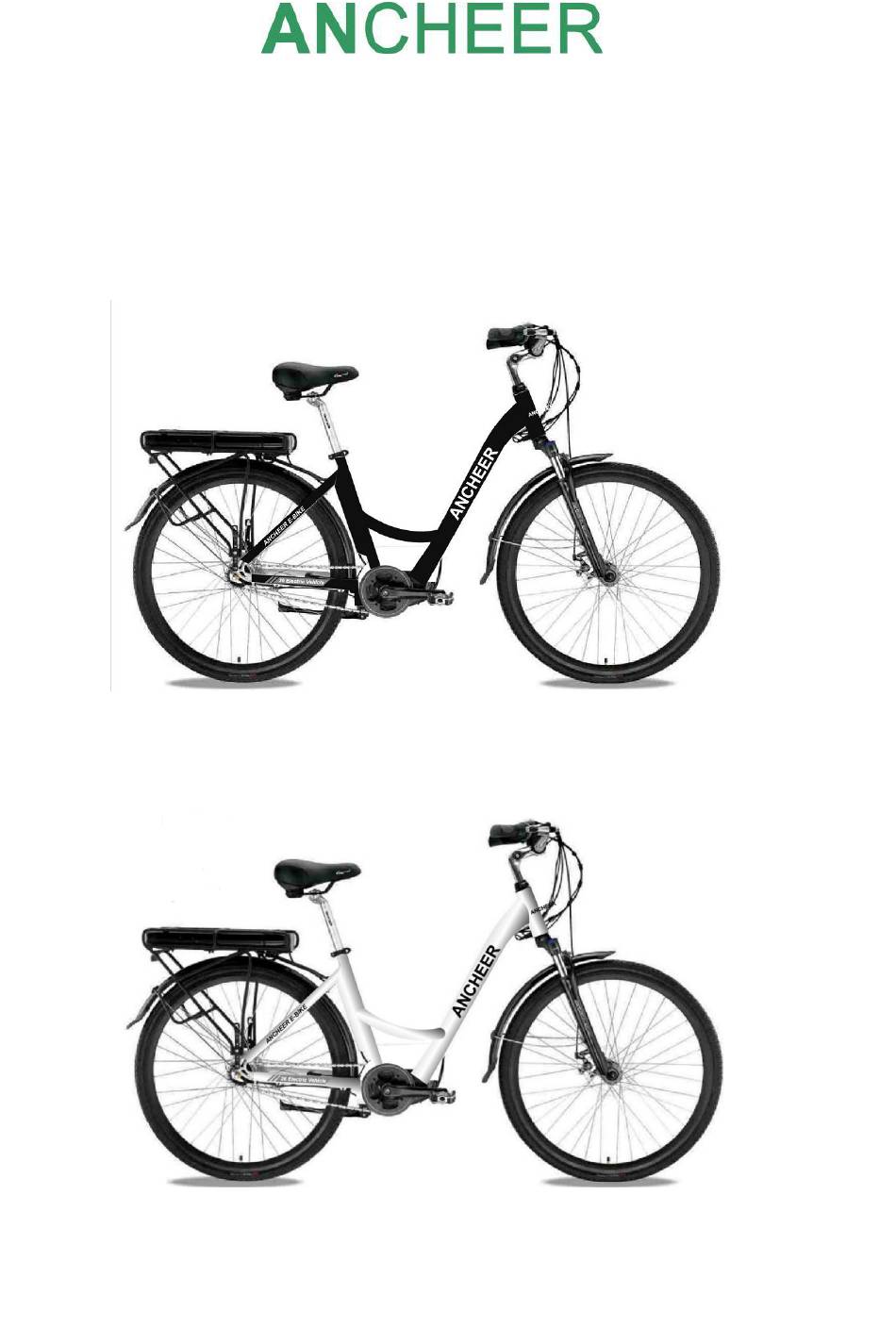

- Page 1 E-bike User Manual CAUTION READ THIS MANUAL BEFORE USING YOUR EQUIPMENT...
-
Page 2: Table Of Contents
CONTENTS Safety Instruction ---------------------------------------------------P1 General Information -------------------------------------------------P2 Installation Instruction -------------------------------------------P3-P8 Meter Operation ------------------------------------------------------P9 Battery Information and Maintenance ------------------P10-P11 Charging -----------------------------------------------------------------P12 Warranty -----------------------------------------------------------------P13... -
Page 3: Safety Instruction
●Please check all nuts and bolts are taut and properly fastened to prevent injury and unnecessary wear and tear on your e-bike. This manual is intended as a general guide to your new ACNHEER e-bike and not a comprehensive reference guide. For technical support, including service, maintenance, and... -
Page 4: General Information
General Information About ANCHEER Electric Bike ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only dedicating to innovation, cutting-edge technology and high-quality materials, but also providing cost effective e-bikes, to satisfy riders' various needs of transportation and even desire of exploring sports &... -
Page 5: Installation Instruction
Installation Instruction When opening the carton of the bike, remove the electric bike and all the accessories inside and use the tool to cut off the packing rope. Assemble the handlebar Insert the stem into the head tube, then adjust the stem in the straight head position and screw up. Tighten stem as shown. - Page 6 3. Assemble the Front Wheel. .1 Using the tool to loosen the fixing rod of the front fork (this accessory is wrapped to prevent the front fork from being deformed and fixed in transportation) just receive the goods and throw them away. 3.2 Remove the nut and the safety washer from the wheel, make sure that the front wheel is in line with the rear wheel, then insert the front fork to the hub on each side, then put the safety washer on each side, and tighten the nut on each side with the tool.
- Page 7 5.Install Pedal 5.1 There is a right pedal marked "R" and a left pedal marked "L". 5.2 Clockwisely screw the pedal marked "R" on the right side crank. Counterclockwisely screw the pedal marked "L" on the right side crank. Ensure that the thread of each pedal is fully inserted into the crank arm.
- Page 8 6.2 Tighten the seat with a clip. 7. Adjust the angle of brake rod, meter, gearshift rod, throttle and horn on the handle of the handlebar, and then tighten all these with the right tools. 8. Assemble rear carrier 8.1 Take out the controller box as photo shows. Unscrew 4 screw from frame (as picture show)，let the carrier aim to screw hole then tighten it.
- Page 9 8.2 Unscrew the screw from controller bottom. 8.3 Insert controller box into slideway. 8.4 Tighten 2 screws on controller bottom. 9. Install the Battery 9.1 Open the battery packaging box...
- Page 10 9.2 Push it into the rack until it is tightly connected to the controller sockets on the rock behind the seat post, then insert the key and lock the battery.（The battery switch is this red button. Please turn on the battery switch before turn on the meter.）...
-
Page 11: Meter Operation
2. Meter Operation Operating Instructions Press “+” Full Electric To switch on/off Press “+” to again to move Function (Pure the E-Bike crease into into pedal electric mode): system, hold the pedal assist assist level Press”-“, until M key for 2s. - Page 12 Battery: further information and maintenance ●How far full charge battery can go? That depends on the loading weight, road condition and battery capacity. But in the same condition, average speed can continuous longer travel range. ●When storing the battery for a longer time period, (during winter time) it is important to place the fully charged battery on a flat surface in a dry place.
-
Page 13: Charging
Warranty 1 Year Limited Hardware Warranty Your ANCHEER Electric bike includes a One-Year Limited Hardware Warranty. The warranty covers product defects in materials and workmanship under normal use. This warranty is limited to original purchasers. This warranty starts on the date of your purchase and lasts for... - Page 14 More ANCHEER electric bike’s installation and repair instructions please search “ANCHEER SPORT” on Youtube. Our Youtube channel: Any question about the item, please contact us: support@iancheer.com /...
