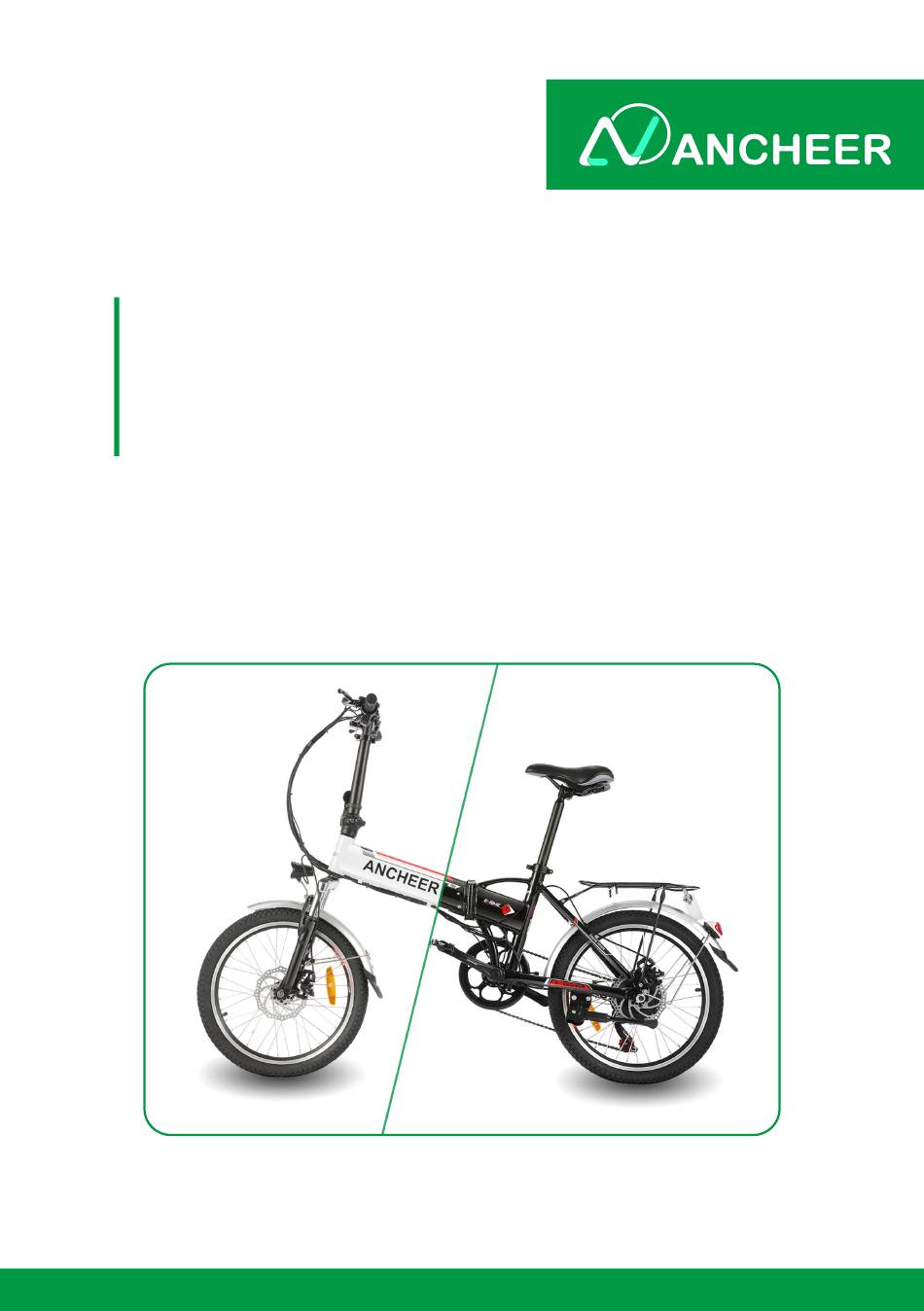

- Page 1 E-Bike PRODUCT INSTRUCTION MANUAL Caution : Please read the manual before your first ride!
-
Page 2: Table Of Contents
CONTENTS Safety Instruction General Information Bike Use Installation And Adjustment Meter Operation Battery And Charging: Further Information Maintenance Warranty Attachment... -
Page 3: Safety Instruction
ANCHEER Safety Instruction Thank you for choosing our products. To ensure your safety and health, we encourage you to read this manual thoroughly before you assemble the bike and take the first ride.Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. - Page 4 ANCHEER Safety Instruction ● Before riding, please check whether the front and rear brakes work normally, check the fastening status of the handlebars and front and rear wheels, and check whether the reflector is damaged or contaminated; ● When using the motor, please be careful not to hit vigorously and keep the rotating shaft lubricated;...
-
Page 5: General Information
General Information 1. About ANCHEER Electric Bike ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only dedicating to innovation, cutting-edge technology and premium materials, but also providing cost effective e-bikes, to satisfy riders' various needs of transportation and even desire of exploring sports &... - Page 6 ANCHEER General Information 3. Bike Components Handlebar Folder Carry Hand Saddle Height Adjustment Manned Backseat Height Adjustment Snap Lamp Front Fork Tire Rear Fender Pedal Chainwheel & Cranks Rear Derailleur Rear Reflector Lamp...
-
Page 7: Bike Use
ANCHEER Bike Usage Before Riding ● Before riding the bike on the open road, try all the settings on the electric bike, and get used to various results in a safe and controllable environment. ● Please check the power circuit, lighting circuit, and test the brake system before cycling. - Page 8 ANCHEER Bike Usage Brake Adjustment Ensure that the brake cables are properly inserted into the brake levers before aligning a mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first. ● Loosen or tighten the barrel adjuster at the end of the brake cable lever. This will make a small adjustment to the gap of the brake pads.
-
Page 9: Installation And Adjustment
ANCHEER Installation And Adjustment Open the package of the bike, take out the electric bike and all the parts inside and use the tool to cut off the packing rope. 1. Install the Handlebar Install the handlebar into the folding stem and fasten the buckle. - Page 10 ANCHEER Installation And Adjustment 2. Install the Front Wheel Using the tool to loosen the fixing rod of the front fork and remove it (this accessory is to prevent the front fork from being deformed during delivery). Take the screws and safety washer out of the wheel, pull the wheel up and insert it into the fork dropout.
- Page 11 ANCHEER Installation And Adjustment 3. Install the Pedals There is a right pedal labeled "R" and a left pedal labeled "L". Ensure that the thread of each pedal is fully inserted into the crank arm. Tighten the pedals completely with a wrench. (Counterclockwise screw the pedal marked "L"...
- Page 12 ANCHEER Installation And Adjustment 4. Install the Seat Insert the seat post into the post receiver, set the correct position and adjust the height to suit your riding habit. Tighten the seat with a clamp. 5. Install the billboard 6. Adjust the angle of the brake lever, meter, gear shifter, throttle and...
- Page 13 ANCHEER Installation And Adjustment 7. How to Fold the Bike Spin the buckle and open the quick release. Fold the frame.
-
Page 14: Meter Operation
ANCHEER Meter Operation 1. Meter Instruction Assistance Level:Low Assistance Level:Mid Assistance Level:High MODE POWER Battery Indicator DOWN ON/OFF 2. Meter Operation Operating instructions MODE MODE MODE MODE high high high high POWER POWER POWER POWER To switch on/ Press “+” to Press “+”... -
Page 15: Battery And Charging: Further Information
ANCHEER Battery And Charging: Further Information Battery: Further information ● Keep the battery out of reach of children. ● Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please do not store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F. - Page 16 ANCHEER Battery and charging: Further Information Reminder Charge a new battery 4-6 hours before you use it in your product for the first time. If the battery is dropped or damaged due to a bicycle accident, there may be a danger of electrolyte leakage.
-
Page 17: Maintenance
ANCHEER Maintenance ● The front and rear wheels of the vehicle should be located in the center of the front fork or frame. ● After riding, please store the bike in a place without sunlight and rain. ● Water showering is forbidden, and the surface of the bike body can be wiped with a semi-dry cloth. -
Page 18: Warranty
Warranty One-Year Limited Hardware Warranty Your electric bike includes a One Year Limited Hardware Warranty. ANCHEER provides warranty service for the electric bikes. If there is a hardware defect and a valid claim is received during the warranty period, we will resend new parts within the scope permitted by law. -
Page 19: Attachment
ANCHEER Attachment Technical parameters Performance index Project Parameter Package Size 1560*580*1150mm Wheel Size 20*1.75 Inches Frame Material Aluminium Alloy Basic Parameters Maximum Load 265 lbs (120KG) Vehicle Weight 49 lbs (22KG) Maximum Speed 15 mph (25km/h) Maximum Gradient 15 Degrees... - Page 20 ANCHEER Attachment Remarks: ● The amount of battery remaining, load of the bike(weight of rider and cargo), tire pressure, road environment, chain and wheel axle lubrication, etc. will affect the maximum speed; ● Riding habits, temperature, load, tire pressure, road environment and other factors...
- Page 21 Model: MYT-20 Input: DC42V, 2A max Highest speed: 25km / h Power: 250W support@iancheer.com...
