GSN PATROL-803 - Combined Pir & Glass Break Detector Manual

INTRODUCTION

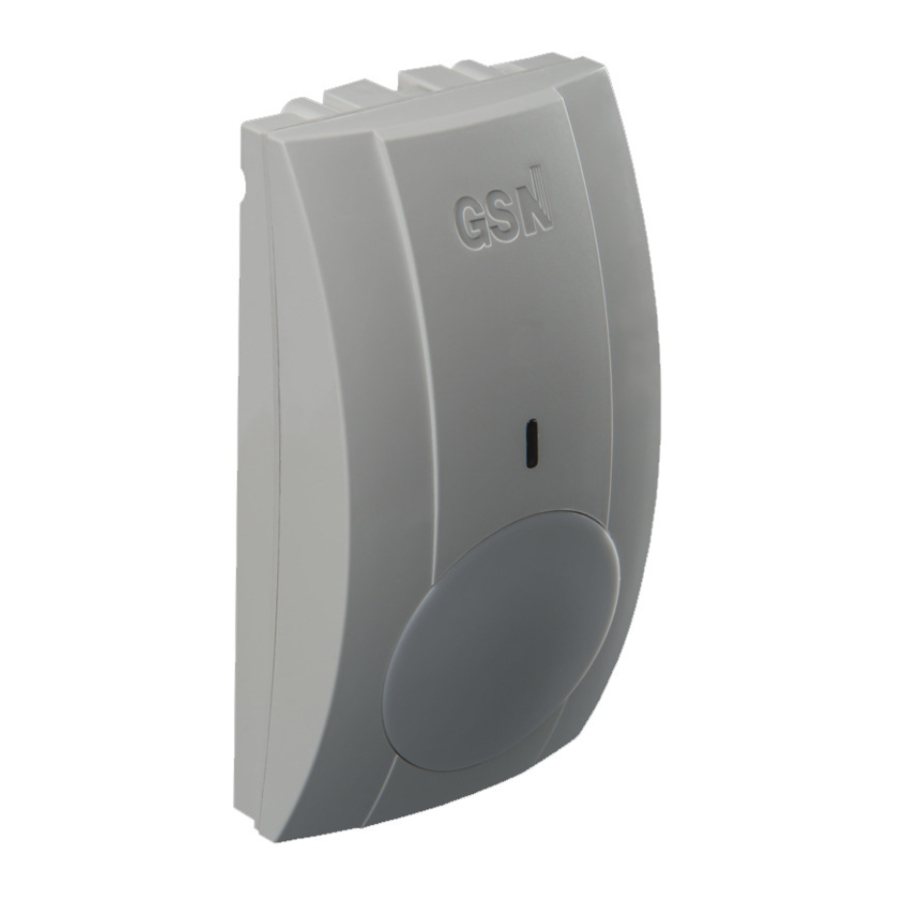

The PATROL-803 is a combination of PIR and acoustic glass break detector.

The PATROL-803 is a digital passive infrared detector with dual element pyrosensor, which provides the most efficient security of residential and industrial premises.

The PIR detector analyzes the environment and detects the person's motion crossing the infrared beam.

The acoustic glass break detector identifies the sounds of glass impact and breakage.

Two independent optoelectronic relays of the PIR and glass break detectors, allow connecting the detectors to two independent zones in the control panel.

FEATURES

• HI-TECH DESIGN
• DUAL TECHNOLOGY PIR & MICROPHONE
• HIGH RFI & EMI IMMUNITY
• DIGITAL PROGRAM ALGORITHM OF SIGNAL PROCESSING
• PULSE COUNTER 1
• TEST MODE FOR TWO ACOUSTIC CHANNELS
• INDIVIDUAL PIR SENSITIVITY ADJUSTMENT
• HIGH LIGHT IMMUNITY
• HERMETICALLY SEALED PYROELECTRIC SENSOR
• LOW OPERATING TEMPERATURE
• AUTOMATIC TEMPERATURE COMPENSATION

DETECTOR INSTALLATION

Fix the detector vertically on solid, flat wall surface. The installation height is 2 – 2.5 meters.

For corner or ceiling installations, you can use universal brackets – models:
"UBL-1112" or "UBL-1115." (Additional purchase!)

For corner installation, use knockouts located on the sloping part of the detector base.

For protecting several windows, mount the detector at optimal distance from them. If heavy blinds of curtains cover the glass, locate the detector so the blinds will not block the sound.

INSTALLATION LIMITATIONS

• Do not install the detector on unstable or vibrating surfaces.
• Do not install the detector close to curtains, blinds or other items that vibrate with air movement.
• Do not install the detector close to air conditioners, air blast sources or above heat sources.
• Do not install the detector or route power wires and alarm loops next to high voltage cables.

TERMINAL BLOCK CONNECTION

Connect the wires according to the scheme.

Terminals "+12V-" - for connection to the power supply of the control unit.

Terminals "Tamper" - for connection to a 24-hour normally closed protective zone in the control unit.

Terminals "Relay 1" - relay output of the PIR detector.

Terminals "Relay 2"- relay output of the glass break detector.

DETECTOR ADJUSTMENT

1. Remove the front cover.
2. Select the required number of pulses (1 or 2) using S2 regulator.


*Selectable pulse counter 1or 2 provides users with the option of optimizing detector sensitivity to suit the environment, thus retaining reliable performance at all times.

3. Connect the power and wait for LED to stop flashing (warm-up time 60 sec).
4. Replace the cover.
5. Pass in the field of view detector. The RED LED should actively respond to your movement.
6. If necessary, increase the detector PIR sensitivity, using R18 potentiometer "PIR Sensitivity".


LED INDICATION ON ALARM

Jumper W3 will enable/disable the alarm LED.

If W3 is ON – LED will operate on alarm.

If W3 OFF – LED will not operate on alarm.

W1 – Jumper to select operating and test modes.

W2 – Acoustic range adjustment

S2 – Pulse counter regulator

R17 – Glass sensitivity regulator

R18 – PIR sensitivity regulator

S1 – Tamper button

SELECTING COVERAGE RANGE

Set the jumper W2 according to the distance to the protected glass.

PROTECTED GLASS TYPES

¹¹The detection range of the acoustic glass break detector is reduced up to 10 meters for the following glass types:
Laminated, Wired, Coated (Triplex), Sealed Insulating.

GLASS BREAK TEST (ADJUSTMENT)

1. Set the jumper W1 to the "GLASS TEST "position.

   The PIR detector is off;
   The RELAY 1 and RELAY 2 are opened.
2. Replace the cover.
3. Use glass break simulator to simulate the high frequency signal of the glass breakage. The red LED will flash with each simulator activation.
4. Use the trimmer R17 marked "GLASS SENSITIVITY" to adjust in detector with more sensitivity.


SHOCK & GLASS BREAK TEST

1. Set the jumper W1 to "SHOCK & GLASS TEST" position.

   The PIR detector is off;
   The RELAY 1 is opened.
   The RELAY 2 is closed.
2. Replace the cover.
3. Tap gently the protected glass and activate the glass break simulator at the same time. The relay output of the glass break detector will open for 3 sec.
   The red LED will be ON.
4. After testing, set the jumper W1 to the "OPERATING MODE" position.

WIDE ANGLE LENS

VERTICAL BARRIER LENS

LONG RANGE LENS

*ADDITIONAL PURCHASE

UNIVERSAL BRACKET

MODELS:
"UBL-1112", "UBL-1115".

*ADDITIONAL PURCHASE

SUNSHIELD FILTER

Sunshield filter for extra protection of pyroelectric sensor of detector from sunlight and car headlights.

*ADDITIONAL PURCHASE

TECHNICAL SPECIFICATIONS

Input voltage 8.5 – 16V

Current consumption:
In standby mode: 17.7mA
In alarm mode: 19mА

Warm up period: 60sec

PIR detection range: 15.6m x 125º

PIR detection speed range: 0.3 – 3m/sec

Glass break detection range: 12m x 160º

Relay output: NC; 60V; 100mA; 16Ω

Tamper output: NC; 10Ω

Alarm period: 3sec

Reset time: 5 ± 1sec

Pulse counter: 1 or 2

Installation height: 2.0 – 2.5m

Light immunity without sunshield filter: no less than 6500lux

Light immunity with sunshield filter: more 30000lux

Operating temperature range: – 30°C +60°C

Storage temperature range: – 50°C – +80°C

RFI immunity: 30V/м at a frequency range 30MHz-1GHz

EMI immunity.50,000V

Dimensions: 54mm x 33mm x 99mm

Weight: 82gr.
