  • Page 1 PET NAIL GRINDER PET NAIL GRINDER...

  • Page 2: Table Of Contents

    PET NAIL GRINDER Please read all instructions carefully to familiarise yourself with the Wahl Pet Nail Grinder before using. Save these instructions for further reference. For any further assistance or information visit W: www.wahl.co.uk E: customer.services@wahl.co.uk CONTENTS DESCRIPTION OF PARTS...

  • Page 3: Description Of Parts

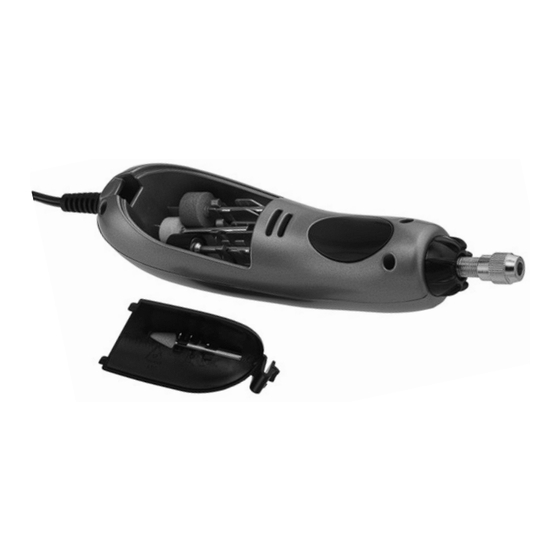

    PET NAIL GRINDER DESCRIPTION OF PARTS A: Power Adaptor B: Nail Filer with Cord C: Filing Drum D: Felt Polisher E: Large Grinding Stone F: Small Grinding Stone G: 60 Grit Filing Stones H: 100 Grit Filing Stones Easy Change Locking Nut...

  • Page 4: Technical Data

    PET NAIL GRINDER TECHNICAL DATA TRANSFORMER 7.2W Nameplate output power (W): Root mean square (Rms) input voltage (V): 100-240V 50/60Hz Input AC frequency: Rms output voltage (V): Rms output current (mA): 800mA Average active efficiency: 80.3% Efficiency at low load (10%): 73.17% No-load power consumption (W):...

  • Page 5: General User Information

    PET NAIL GRINDER GENERAL USER INFORMATION Information about using the operation manual Please read this instruction manual carefully ► and familiarise yourself with your new Pet Nail Grinder before using for the first time. Please retain these instructions for future reference.

  • Page 6: Important Safeguards

    PET NAIL GRINDER Please retain this leaflet for future reference. READ ALL INSTRUCTIONS BEFORE USING. IMPORTANT SAFEGUARDS When using your electrical appliance, basic safety precautions should always be followed, including the following: Requirements Read the instruction manual in full to ►...
  • Page 7 Any servicing or repair must be performed ► by Wahl (UK) LTD or a suitably qualified professional. Only use the attachments supplied with this ►...
  • Page 8 PET NAIL GRINDER Warning! Injuries due to incorrect handling Switch off the appliance and unplug from outlet ► when not in use, before putting on or taking off attachments and also before cleaning the appliance. Never touch or allow contact with moving parts ►...
  • Page 9 PET NAIL GRINDER Do not let the cord hang over the edge of the ► work surface or let it touch any hot surfaces. Do not wrap the cord around the appliance. ► Do not use outdoors or in damp areas.

  • Page 10: Operating Instructions

    PET NAIL GRINDER OPERATING INSTRUCTIONS Using your thumb, apply light to moderate pressure to your pet’s pads in order to separate their toes. Hold paw firmly. Turn appliance ON. The ON/OFF switch is located on the front of the appliance. For best results, start filing from the bottom of the nail, slowly moving toward the tip. Apply consistent pressure, moving the grinder from side to side on each nail.
  • Page 11 PET NAIL GRINDER APPLYING FILING BANDS TO FILING DRUM Select either the 60 or 100 sanding grit filing band (60 grit medium sanding band for quick efficient filing down of your pets nail; 100 grit fine filing band for smoothing uneven rough nails). Place the filing band over the filing drum until it is in place (please note, you will find it sits loosely over the grinding drum). In order to properly secure its placement, use a screw driver to adjust the screw at the top of the filing drum. Screwing it in a clockwise direction will allow the drum to expand, creating the perfect fit. NOTE: Ensure Grinding and Filing attachments are properly...

  • Page 12: Cleaning And Maintenance

    To clean the housing, use a soft, dry cloth. For maximum efficiency, ensure grinding attachments and filing bands are properly replaced when worn and blunt. Periodically examine tool for any wear or damage. To order replacement accessories, please visit www.wahl.co.uk. WIRING WARNING: If the supply cord is damaged it must be replaced by the manufacturers service agent or a similarly qualified person in order to avoid a hazard.

  • Page 13: Disposal

    PET NAIL GRINDER DISPOSAL Handle with care! Environmental damage in the case of incorrect disposal. Correct disposal will ensure environmental protection and prevent any potentially harmful impacts on people and the environment. Adhere to the relevant legal requirements when disposing of the appliance.

  • Page 14: Guarantee

    Alternatively within the guarantee period you can return the product to Wahl (UK) Ltd who will repair any such defect or elect to replace the product or any part of it, without charge, provided there is proof of purchase. Should a replacement be offered this will not extend...
  • Page 15 PET NAIL GRINDER...
  • Page 16 PET NAIL GRINDER WAHL (UK) LIMITED STERLING HOUSE, CLIPPER CLOSE, RAMSGATE, KENT CT12 5GG. CUSTOMER SERVICES T: 01227 740066 www.wahl.co.uk Form No. ZB041 Rev5 08-22...
