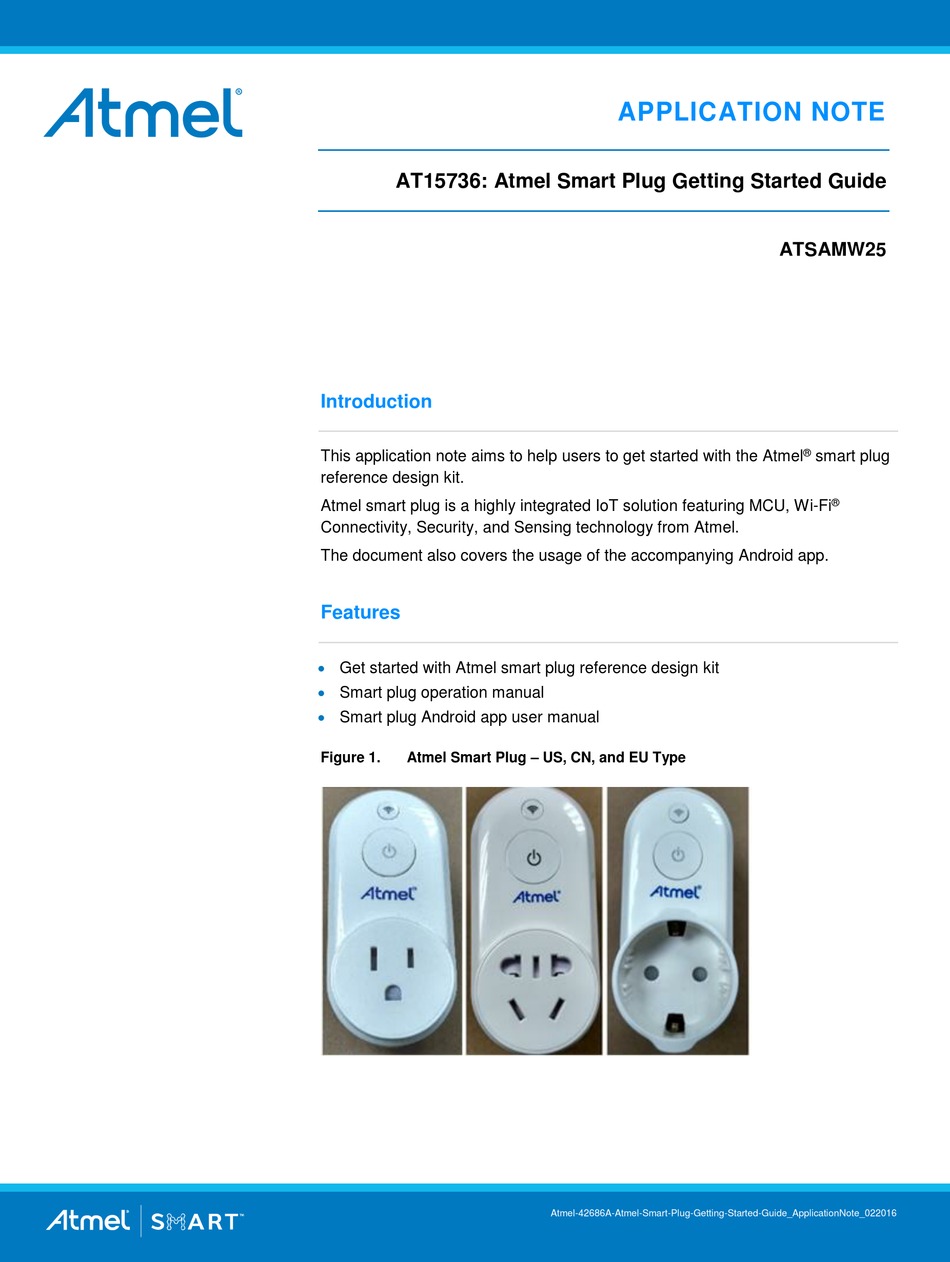

AT15736: Atmel Smart Plug Getting Started Guide
Introduction
This application note aims to help users to get started with the Atmel
reference design kit.
Atmel smart plug is a highly integrated IoT solution featuring MCU, Wi-Fi
Connectivity, Security, and Sensing technology from Atmel.
The document also covers the usage of the accompanying Android app.
Features
Get started with Atmel smart plug reference design kit
Smart plug operation manual
Smart plug Android app user manual
Atmel Smart Plug – US, CN, and EU Type
Figure 1.
APPLICATION NOTE
Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016
ATSAMW25
®
smart plug
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atmel ATSAMW25
Summary of Contents for Atmel ATSAMW25
-
Page 1: Introduction
AT15736: Atmel Smart Plug Getting Started Guide ATSAMW25 Introduction ® This application note aims to help users to get started with the Atmel smart plug reference design kit. Atmel smart plug is a highly integrated IoT solution featuring MCU, Wi-Fi ®... -
Page 2: Table Of Contents
Smart Plug Control ..................9 4.4.1 Timing Setting ..................10 4.4.2 Historic Logs ..................11 4.4.3 Setting Page ..................11 4.4.4 Share Smart Plug .................. 13 5 Revision History ................ 15 AT15736 - Atmel Smart Plug Getting Started Guide [APPLICATION NOTE] Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016... -
Page 3: Overview
Atmel smart plug is an IoT edge node from an IoT system level of view. It acts as a Wi-Fi Access Point (AP) during initial setup by the Android app, and will afterwards act as a connected node on the home Wi-Fi network. -
Page 4: Smart Plug Setup
Home Wi-Fi AP or Wi-Fi router Android device with Android 4.0 or higher Latest Atmel Smart Plug Android APK (download by scanning QR code or accessing web link below and install it on the Android phone Figure 2-1. Atmel Smart Plug APK To install from PC, access the following link: https://play.google.com/store/apps/details?id=net.nanmu.atmel.smartplug... -
Page 5: Smart Plug Operation Maunal
Smart plug operation is easy and intuitive. The user interface consist of two LED indicators and a capacitive touch button. Atmel provides three types of smart plug to be used globally: US, CN, and EU type as shown in Figure... -
Page 6: Android App User Guide
Android App User Guide The Atmel Smart Plug Android app is designed to work with the Atmel smart plug. In this chapter, the app usage will be described. My Device Page When opening the Atmel Smart Plug app you will be presented with the “My Devices” page. This page lists all your added Atmel smart plugs. -
Page 7: Add New Smart Plug
For more details about a smart plug, touch the smart plug icon To show the APK information, touch “Atmel” logo at the top right of the page. The “About” page can also be opened in other pages by touching the “Atmel” logo. - Page 8 After a successful connection to the smart plug SoftAP, the “Add New Device” page in Figure 4- will be shown. Figure 4-6. Add New Device Page AT15736 - Atmel Smart Plug Getting Started Guide [APPLICATION NOTE] Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016...
-
Page 9: Add Shared Smart Plug
LED indicators on the smart plug. At the bottom of the page, there are sub-pages of “Timing”, “History”, “Setting”, and “Share” functions, which are explained in the following sections. AT15736 - Atmel Smart Plug Getting Started Guide [APPLICATION NOTE] Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016... -
Page 10: Timing Setting
By touching “Repeat” in the “Timing Setting” page the action can be repeated on multiple days of the week. After setting up the schedule, touch “Save” to activate it. An example schedule is shown in Figure 4-9. Figure 4-9. Timing Pages AT15736 - Atmel Smart Plug Getting Started Guide [APPLICATION NOTE] Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016... -
Page 11: Historic Logs
Version: Host MCU firmware version in (major version).(minor version)(a/b) format. The “a/b” shows the current application firmware area. Refer to the Atmel application note AT15735: Atmel Smart Plug Firmware User Guide to understand the MCU memory map and application firmware areas. - Page 12 Here the threshold can be changed to evaluate the temperature alert function. When the temperature exceeds this value, the smart plug will notify Android app (as shown in Figure 4-12) and shut the output off. Figure 4-12. Over Temperature Alert AT15736 - Atmel Smart Plug Getting Started Guide [APPLICATION NOTE] Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016...
-
Page 13: Share Smart Plug
To easily remember the sharing record, it can be renamed by touching the record and filling the “Remark” field in the “Record Edit” page. AT15736 - Atmel Smart Plug Getting Started Guide [APPLICATION NOTE] Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016... - Page 14 To share with new users the sharing records have to be deleted to make the total number less than 5. Figure 4-15. QR Code for Smart Plug Sharing AT15736 - Atmel Smart Plug Getting Started Guide [APPLICATION NOTE] Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016...
-
Page 15: Revision History
Revision History Doc Rev. Date Comments 42686A 02/2016 Initial document release. AT15736 - Atmel Smart Plug Getting Started Guide [APPLICATION NOTE] Atmel-42686A-Atmel-Smart-Plug-Getting-Started-Guide_ApplicationNote_022016... - Page 16 DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, b y estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND COND ITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON -INFRINGEMENT.
