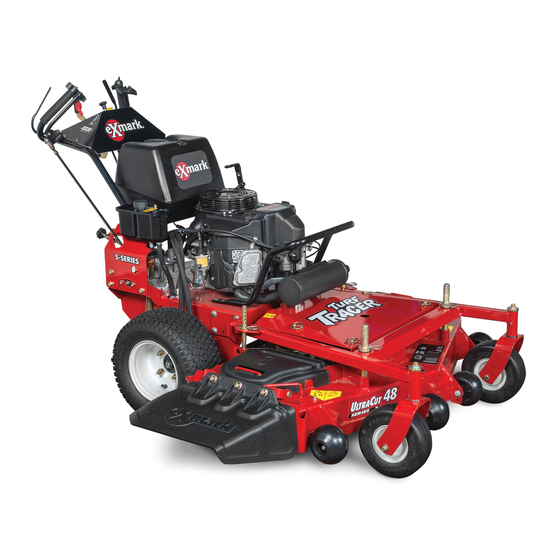

Summary of Contents for Exmark TURF TRACER S Series

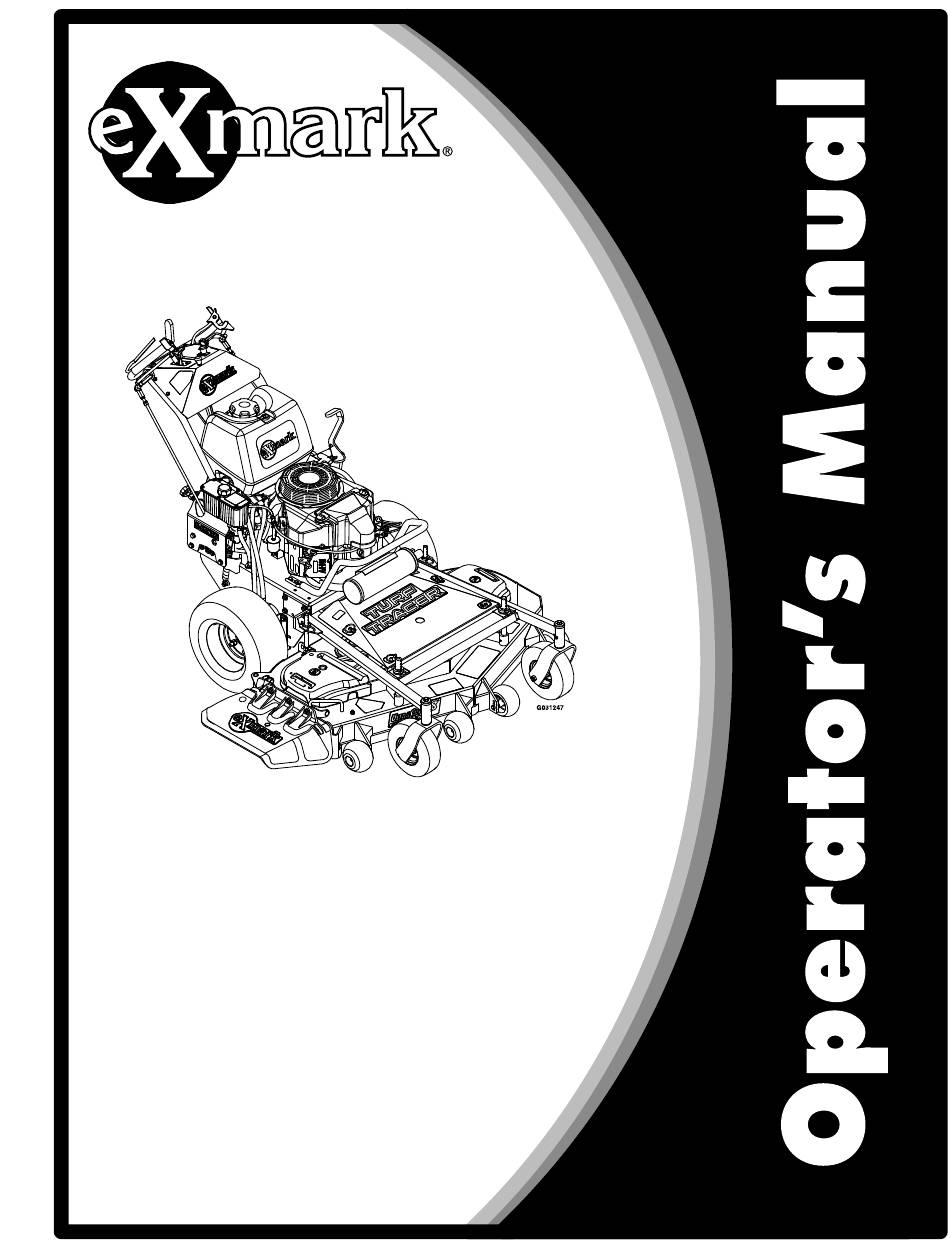

- Page 1 TURF TRACER ® S-SERIES For Serial Nos. 316,000,000 & Higher Part No. 4502-570 Rev. A...
- Page 2 SAE testing and gross/net power rating standards (J1940, J1995, J1349). Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously.
- Page 3 All Exmark parts are thoroughly tested and inspected before leaving the factory, however, attention is required on your part if you are to obtain the fullest measure of satisfaction and performance.
- Page 4 Contents Clean Engine and Exhaust System Area ............39 Remove Engine Shrouds and Clean Introduction ............3 Cooling Fins..........39 Safety ..............5 Clean Debris From Machine ......39 Safety Alert Symbol ......... 5 Clean Grass Build-Up Under Deck ....39 Safe Operating Practices ........5 Waste Disposal ..........39 Safety and Instructional Decals ......10 Troubleshooting ............41...
- Page 5 Institute in effect at the time of production. explain this material to them; other languages may be available on our website. Exmark designed and tested this lawn mower to offer reasonably safe service; however, failure to comply • Become familiar with the safe operation of the with the following instructions may result in personal equipment, operator controls, and safety signs.
- Page 6 Safety • Inspect the area where the equipment is to be DANGER used and remove all rocks, toys, sticks, wires, In certain conditions during fueling, static bones, and other foreign objects which can be electricity can be released causing a spark thrown by the machine and may cause personal which can ignite gasoline vapors.
- Page 7 Safety Operation – Before clearing blockages. – Whenever you leave the mower. WARNING • Stop engine, wait for all moving parts to stop, and Operating engine parts, especially the muffler, engage parking brake: become extremely hot. Severe burns can occur on contact and debris, such as leaves, grass, –...
- Page 8 Safety • Keep engine and engine area free from DANGER accumulation of grass, leaves, excessive grease Operating on wet grass or steep slopes can or oil, and other debris which can accumulate cause sliding and loss of control. Loss of control in these areas.
- Page 9 Unauthorized modifications to the original equipment or failure to use original Exmark parts could lead to serious injury or death. Unauthorized changes to the machine, engine, fuel or venting system, may violate applicable...
- Page 10 Exmark equipment dealer or labels. distributor or from Exmark Mfg. Co. Inc. • Replace all worn, damaged, or missing safety • Safety signs may be affixed by peeling off the signs.
- Page 11 Safety 112-9028 1. Warning—stay away from moving parts; keep all guards in place. 105-7015 For Models with 36 Inch Decks 114-3489 1. Belt routing 1. Thrown object hazard; cutting/dismemberment hazard—do not operate the machine with the discharge opening uncovered; always operate the machine with the rear discharge deflector, discharge cover or grass collector installed.
- Page 12 Safety 116-7918 1. Read the instructions 2. Turn knob to adjust before servicing or tracking. performing maintenance. 116-8283 1. Warning—read the Operator's Manual for instructions on torquing the blade bolt/nut to 55-60 ft-lb (75-81 N-m). 116-8253 1. Rotate counterclockwise 3. Unlock to push machine. to release.
- Page 13 5. Bushing 6. Mount bracket 7. Spring disc washer 126-1400 1. Warning-Read the Operator’s manual. Use only Exmark riding attachments. Use of other riding attachments may create a hazardous condition resulting in injury. 126-2056 1. Wheel lug nut torque 95 ft-lb (129 N-m) (4x) 2.
- Page 14 Safety 116-8381 Electric Start Units Only 7. Thrown object hazard-Pick up objects that could be thrown 1. Engine–off by mower. Do Not operate when people and pets are in the area; keep deflector in place. 2. Engine–on 8. Warning-Disengage PTO, shift speed control to neutral, and engage parking brake before leaving the operator’s position.
- Page 15 Safety 116-8382 EFI Units Only 7. Thrown object hazard-Pick up objects that could be thrown 1. Engine–off by mower. Do Not operate when people and pets are in the area; keep deflector in place. 2. Engine–on 8. Warning-Disengage PTO, shift speed control to neutral, and engage parking brake before leaving the operator’s position.
- Page 16 Safety 126-1597 Recoil Start Units Only 6. Thrown object hazard-Pick up objects that could be thrown 1. Engine–off by mower. Do Not operate when people and pets are in the area; keep deflector in place. 2. Engine–on 7. Warning-Disengage PTO, shift speed control to neutral, and engage parking brake before leaving the operator’s position.
- Page 17 ((R+M)/2 rating method). high efficiency Parker/Ross wheel drive motors. – Oxygenated fuel with up to 10% ethanol or • Hydraulic Oil: Use Exmark Premium Hydro Oil. 15% MTBE by volume is acceptable. • Hydraulic Oil Capacity: 2.4 qt. (2.2 L) –...
- Page 18 Specifications Tires & Wheels – 48 inch Deck: 5.0 inches (12.7 cm) – 52 inch Deck: 5.0 inches (12.7 cm) Drive • Cutting Height Adjustment: Pneumatic (Air-Filled) Adjusts from 1 1/2 inches (3.8 cm) to 4 1/2 Deck Size 48 & 52 inches (11.4 cm) in 1/2 inch (1.3 cm) increments Quantity •...
- Page 19 Product Overview Curb Weight: Product Overview 36 inch Deck 48 inch Deck 52 inch Deck 573 lb (260 kg) 586 lb (266 kg) 670 lb (304 kg) Note: Weights will vary slightly depending on engine and electric start options. Torque Requirements Bolt Location Torque Cutter Housing Spindle...
- Page 20 Operation Operation as shown in Figure 4, and the drive levers are released, the drive wheels are engaged in the forward direction. Note: Determine the left and right sides of the Squeezing the left hand and/or right hand lever machine from the normal operating position. causes the left hand and/or right hand drive wheel respectively to slow down, stop, or reverse, depending on how far each drive lever is “squeezed”.
