Welcome!
Thank you for choosing the optris
The optris PI or Xi calculates the surface temperature based on the emitted infrared energy of objects
[► Basics of Infrared Thermometry]. The two-dimensional detector (FPA - Focal Plane Array) or (CMOS -
Complementary metal-oxide-semiconductor) allows a measurement depending on the device max. pixels
and will be shown as thermographic image using standardized palettes. The radiometric processing of the

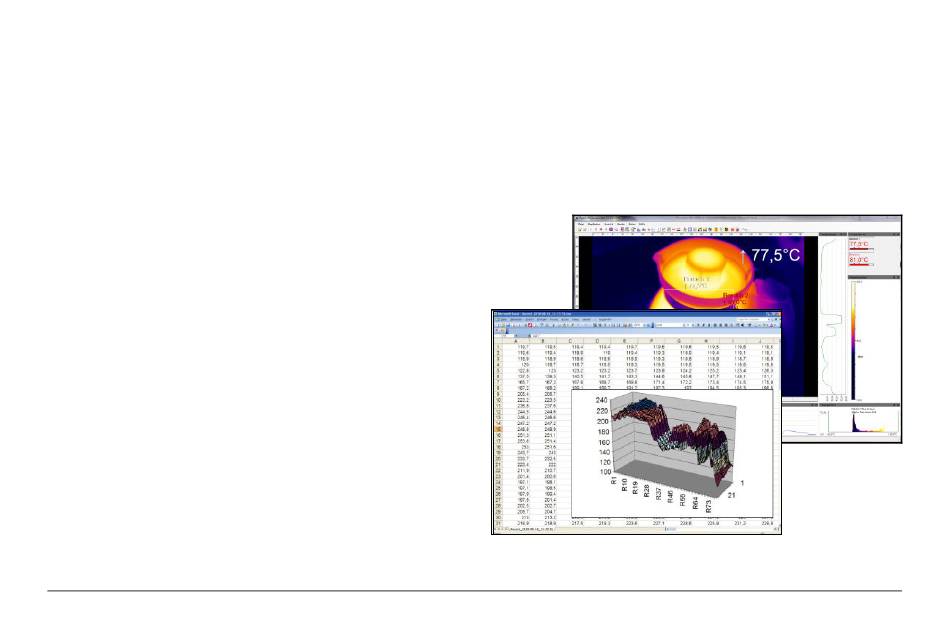

picture data enables the user to do a comfortable detailed analysis using the software PIX Connect.
Main features of PIX Connect software:
▪ Display of the real time thermal image (up to
a max. of 1 kHz) with a wide range of
measurement functions
▪ Recording function (video, radiometric
video, snapshot)
▪ Analysis and post processing of infrared
images/ videos
▪ Complete set up of parameters and remote
control of the camera
PI and/or Xi infrared camera and corresponding PIX Connect
optris PIX Connect – E2021-05-A
software!
