DEEP SEA ELECTRONICS DSEE400 Installation Instructions

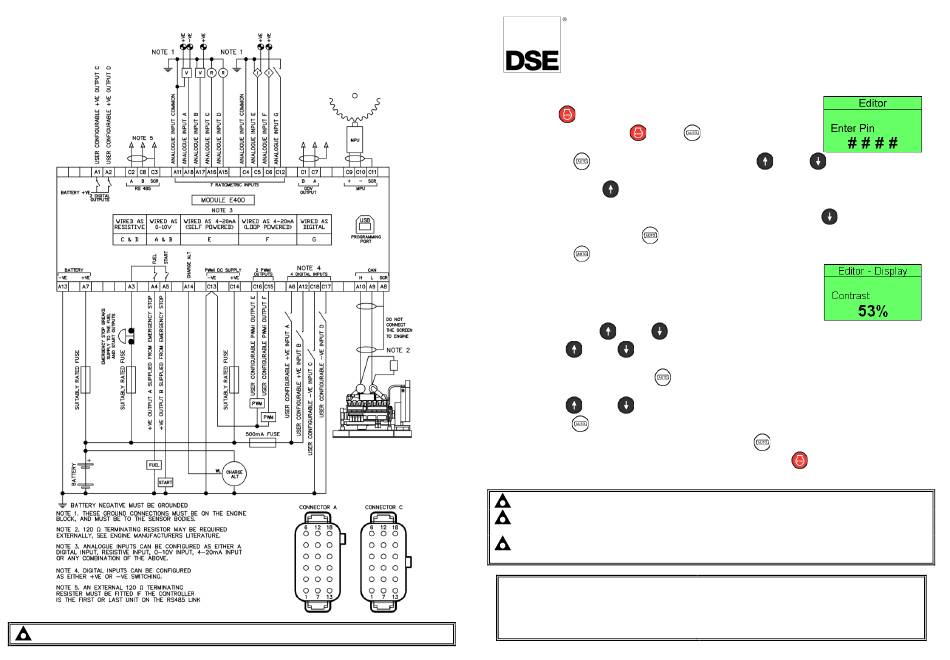

TYPICAL WIRING DIAGRAM
NOTE: To meet UL requirements, fuse the module supply at 167% of supply current.
D E E P S E A E L E C T R O N I C S
DSEE400 Installation Instructions
ACCESSING THE FRONT PANEL EDITOR
•
Ensure the engine is at rest and the module is in STOP mode by pressing the
Stop/Reset button.
•
Press and hold the Stop/Reset and Auto
•
If a module security PIN has been set, the PIN number request is then shown:
• button, the first '#' changes to '0'. Press Up
Press the Auto
correct value.
•
Press and hold the Up button when the first digit is correctly entered. The digit you have just entered will
now show '#' for security.
•
Repeat this process for the other digits of the PIN number. Press and hold the Down
need to be edited. Press the Auto button to finish editing the PIN.
•
Press the Auto button to check the PIN for validity. If the number is not correct, the PIN must be re-entered.
•
If the PIN has been successfully entered (or the module PIN has not been
enabled), the editor is displayed:
EDITING A PARAMETER
•
Enter the editor as described.
•
Press and hold the Up or Down buttons to cycle to the section you wish to view/change.
•
Press the Up or Down buttons to select the parameter you wish to view/change within the currently
selected section.
•
To edit the parameter, press the Auto
that you are editing the value.
•
Press the Up or Down buttons to change the parameter to the required value.
•
Press the Auto button to save the value. The parameter ceases flashing to indicate that it has been saved.
•
To exit the editor and save the changes, press and hold the Auto
•
To exit the editor and not save the changes, press and hold the Stop/Reset
NOTE: The editor is exited after 5 minutes of inactivity to ensure security.
NOTE: The PIN number is automatically reset when the editor is exited (manually or automatically) to
ensure security.
NOTE: More comprehensive module configuration is possible using the DSE Configuration Suite PC
Software, refer to DSE publication 057-251 DSEE400 Configuraiton Suite PC Software Manual.
Deep Sea Electronics Ltd.
Tel:+44 (0)1723 890099
Email: support@deepseaelectronics.com
Web: www.deepseaelectronics.com
buttons simultaneously.
or Down buttons to adjust it to the
button if previous digits
button to enter edit mode. The parameter begins to flash to indicate
button.
button.
Deep Sea Electronics Inc.
Tel: +1 (815) 316 8706
Email: USASupport@deepseaelectronics.com
Web: www.deepseaelectronics.com
053-180
ISSUE 5
