Wired Long-Range RF

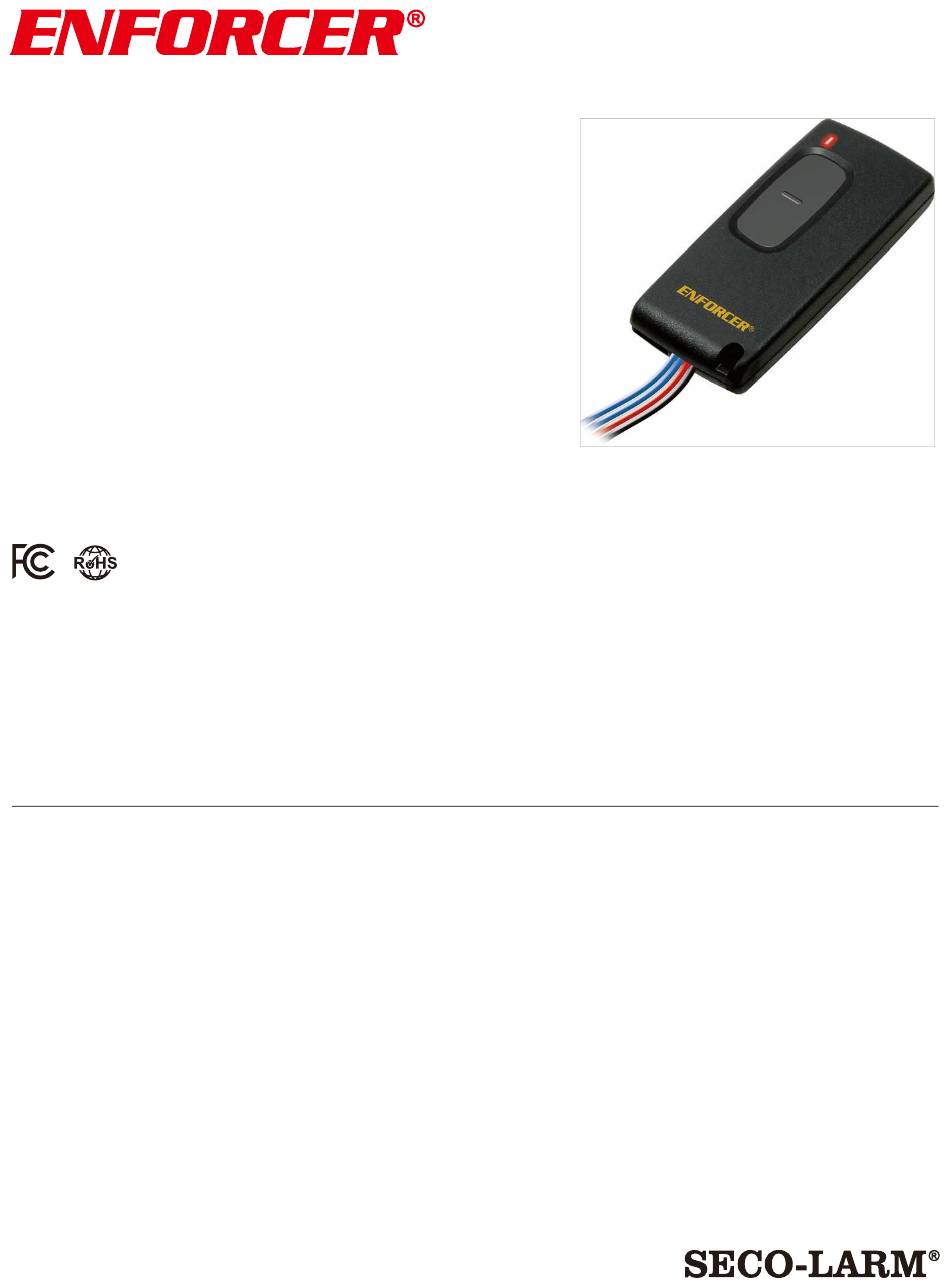

Transmitter
HL-951T1-SWQ (917MHz)
Installation Manual
The ENFORCER HL-Series RF transmitters and receivers offer significantly increased range with
greatly increased immunity to interference, whether physical obstacles, temperature extremes, or
other environmental factors. The wired transmitter allows you to easily make other devices
wireless.
• Includes one 3VDC lithium battery (CR-2032)
• May also be powered by an external 4.5~13 VDC external regulated adapter (not included)
• Frequency – 917MHz*
• Operating range up to 1,800ft (550m)
• Over 2.028x10
31
• LED transmission and low-battery indicator
• Compatible with all SECO-LARM HL-series receivers of the same frequency
• Also available without logo – HL-951T1-SWUQ
*868MHz also available with CE certification
†
Actual range will vary depending on the installation and operating environment
possible codes
†
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER HL-951T1-SWQ
Summary of Contents for ENFORCER HL-951T1-SWQ
- Page 1 HL-951T1-SWQ (917MHz) Installation Manual The ENFORCER HL-Series RF transmitters and receivers offer significantly increased range with greatly increased immunity to interference, whether physical obstacles, temperature extremes, or other environmental factors. The wired transmitter allows you to easily make other devices wireless.
- Page 2 Wired Long-Range RF Transmitter Specifications Type Wired RF transmitter Switch Two 6" N.O. blue wires Wiring Two 6" wires (red +, black –) Power Battery 1x 3VDC button battery (CR-2032, included) Power External 4.5~13 VDC regulated adapter Battery life Up to 10 years* †...
- Page 3 Installation External Switch Connection To control a device wirelessly, install an ENFORCER HL-series RF receiver to the device to be controlled and use the ENFORCER HL-951T1-SWQ transmitter to control it remotely. The wired transmitter can control the remote device directly or attached to an external N.O. switch* (a button, contact, or sensor).
- Page 4 Power Connection The HL-951T1-SWQ can be powered by the factory preinstalled 3VDC lithium battery (CR-2032) or by an external 4.5~13VDC output regulated adapter (not included). When using an external power adapter, correct polarity is imperative. Connect the transmitter's red wire to the adapter's positive output and the black wire to the adapter's negative output (see Figs.
- Page 5 HL-951R1-SQ HL-951R2-SQ X-930-096 FCC COMPLIANCE STATEMENT (HL-951T1-SWQ) FCC ID: K4E951T1SW THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
