User Manual
SE-4048-PoE
Version 1.0
May 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE-4048-PoE and is the answer not in the manual?

Questions and answers

Related Manuals for Techsis SE-4048-PoE

Summary of Contents for Techsis SE-4048-PoE

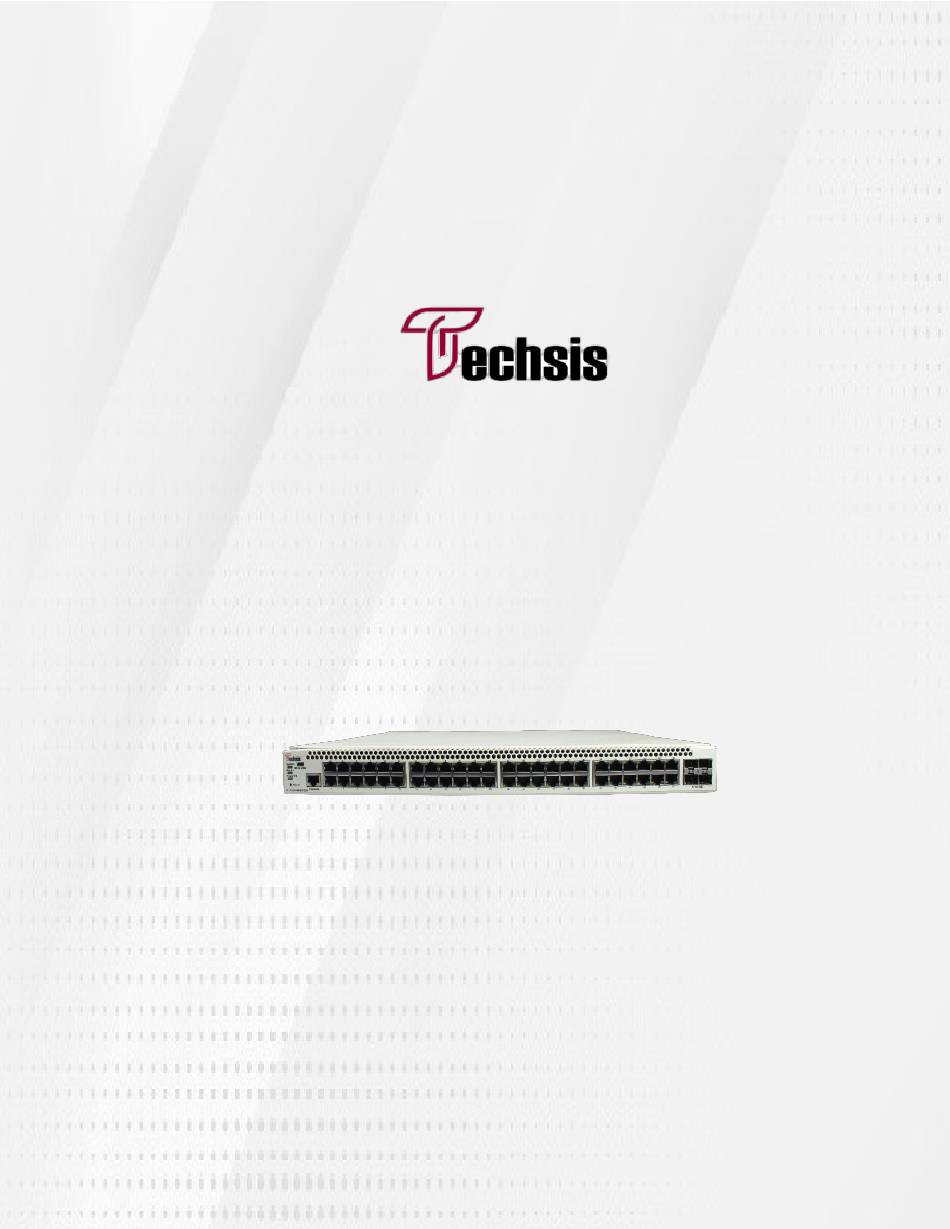

  • Page 1 User Manual SE-4048-PoE Version 1.0 May 2021...
  • Page 2 Introduction to the installation manual The Product User's Manual mainly introduces the software and hardware parameters, installation methods, and precautions during the installation process of the SE-4048-PoE switch. This manual includes the following sections: Chapter 1: Product introduction. Briefly describe the basic functions and features of the switch, detailed hardware and software specifications, and appearance information.

  • Page 3: Chapter 1 Product Introduction

    The SE-4048-PoE switch features 48 gigabit Ethernet RJ45 ports and 10 Gb SFP + ports, advanced security features and advanced quality of service (QoS), can be used as a core, distributed or access layer switch, has high port density, switch stack and manageability, and is an ideal choice for a variety of commercial network applications.
  • Page 4 SE-4048-PoE Software Features Protocol standard Basical Functions • IEEE 802.3: Ethernet media access • Support hardware watchdog, restore factory control (MAC) protocol Settings, system and port LED • IEEE 802.3i:10BASE-T Ethernet • Support global information, statistics, log • IEEE information 802.3u:100BASE-TX...
  • Page 5 SE-4048-PoE MAC address table Multicast • Follow the IEEE 802.1d standard • Support IGMP v1/v2 Snooping • Support MAC address automatic learning • Support fast leave mechanism and aging • Support for multicast VLAN • Support static, dynamic, filtering address •...

  • Page 6: Product Appearance

    SE-4048-PoE 1.4 Product appearance Front panel Contains indicator light, RJ45 port as shown below Indicator light The working information of the SE-4048-PoE indicator is as shown in the following table. Indicator light Indicator light normal status Abnormal and trouble shooting...
  • Page 7 Rear panel ❖ Includes: power outlet, power switch, ground terminal  SFP port The SE-4048-PoE provides four 10 Gigabit SFP optical module expansion slots for plugging into Gigabit SFP modules.  Console port The Console port is used to connect to the serial port of a computer or other terminal to manage or configure the switch.

  • Page 8: Chapter 2 Hardware Connection

    Connect the switch and the RJ45 port of the peer network device with a network cable. 2.2 Connecting SFP Ports The SFP port of the SE-4048-PoE supports only 10 Gigabit fiber modules. It is recommended to use standard SFP module products. The process of installing a fiber module on a switch is as follows: 1.

  • Page 9: Check Before Power-On

    SE-4048-PoE Note: It is not allowed to excessively bend the fiber, and its radius of curvature should be no less than 10 Ensure the cleanliness of the fiber end face; Please do not look directly into the fiber optic connector with your eyes, as this may cause eye damage.

  • Page 10: Chapter 3: Product Installation

    SE-4048-PoE Chapter 3: Product Installation 3.1 Installation Precautions Note: To avoid damage to the equipment and personal injury caused by improper use, please observe the following precautions. safety precautions ❖ power supply remains off during the installation process. Wear an ESD-preventive wrist strap and ensure that the ESD-preventive wrist strap is in good contact with the skin to avoid potential safety hazards.
  • Page 11 SE-4048-PoE elevation Products with this mark are only suitable for safe use in areas below 2000m above sea level. dustproof Dust falling on the surface of the switch can cause electrostatic adsorption and poor contact of the metal contacts. Although the device itself has made certain measures in anti-static, when the static electricity exceeds a certain intensity, it will still cause fatal damage to the electronic components on the internal circuit board.
  • Page 12 3.2 Product Installation 19inch standard rack mount The SE-4048-PoE is designed to fit the standard 19-inch rack and can be easily mounted to the rack. The specific installation steps are as follows: 1. Check the grounding and stability of the rack;...
  • Page 13 SE-4048-PoE bracket to the guide groove fixed at both ends of the rack with screws to ensure that the switch is installed on the rack stably and horizontal. Note: Good grounding of the rack is an important guarantee for anti-static, anti-leakage, lightning protection and anti-interference of the equipment.
  • Page 14 SE-4048-PoE Step 2: Change the computer IP to 192.168.254.X (2~254), and the Subnet mask is 255.255.255.0 Step3: Turn on the browser, input 192.168.254.1, and click Enter Step4: Enter the web manage UI, Input the Username and PW, both are admin and log in...

  • Page 15: Chapter 4: Packing List And Recommendations For Use

    SE-4048-PoE Chapter 4: packing list and recommendations for use 4.1Open the package and check the list below. Objects Quantity Remark Switch 1 pc Power cable 1 pc Support power to SW Hook 2 pcs To installation Warranty Card 1 pc...
