Summary of Contents for Replay SPEEDSTAR ES-5520-1

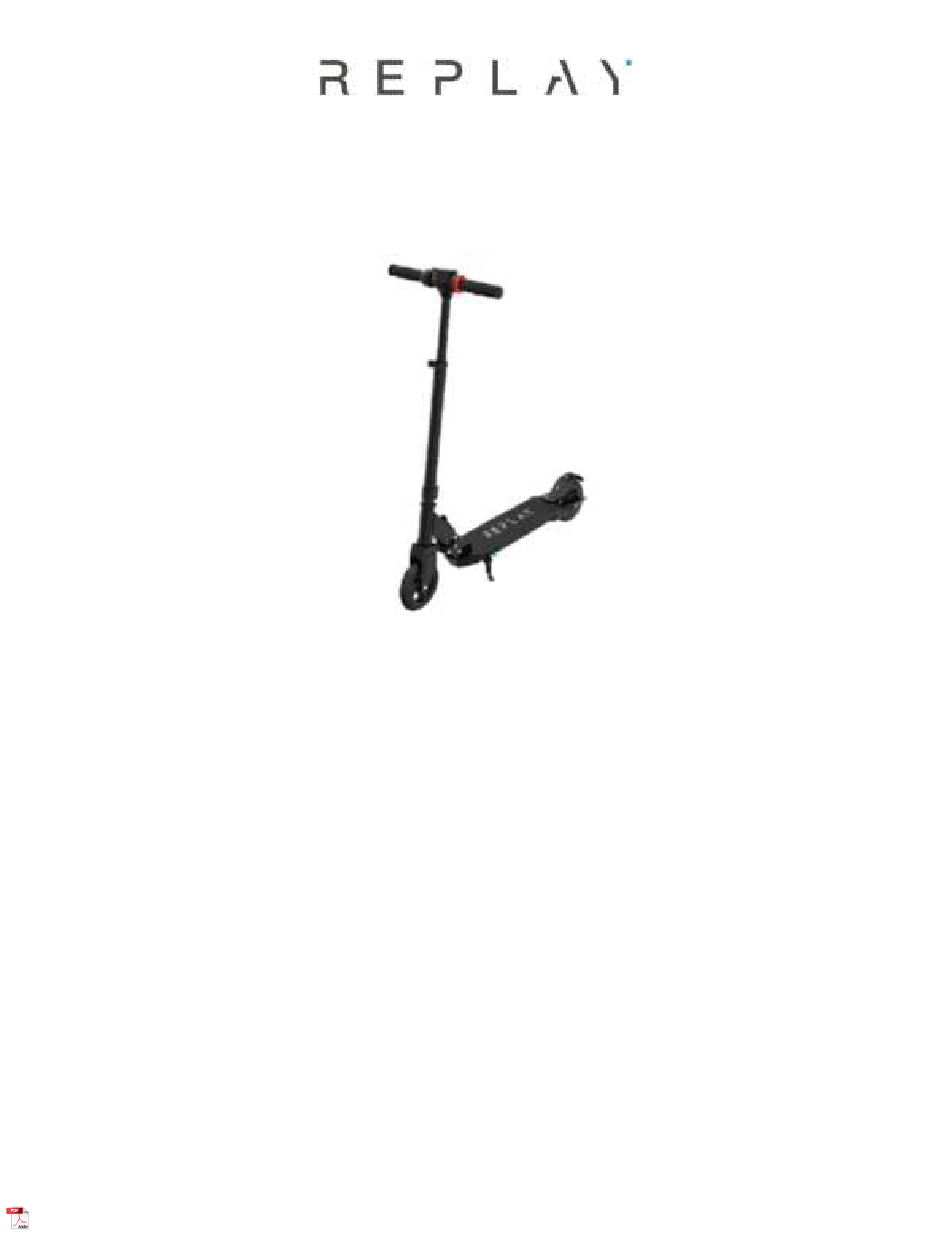

- Page 1 ES-5520-1 SPEEDSTAR Electronic Scooter Instruction Manual PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE...
- Page 2 HELMET SAVES LIVES! Always wear a properly fitted helmet certified by CPSC (Consumer Product Safety Commission) when you ride your scooter. Correct Fitting: Make sure your helmet covers your forehead. Incorrect Fitting: Forehead is exposed and vulnerable to serious injury.
- Page 3 WARNING PLEASE READ THE INSTRUCTION MANUAL THOROUGHLY. Thank you for purchasing the SPEEDSTAR Scooter. Failure to follow the basic instructions and safety precautions listed in the instruction manual can lead to damage to your device, other property damage, serious bodily injury and even death. Please retain this manual for future use and reference.
-
Page 4: Safety Instructions
Use caution when riding the scooter in cold temperatures (below 40 degrees F). Doing so may increase the risk of mechanical failures of the scooter, which may lead to damage to your device, other property damage, serious bodily injury and even death. -
Page 5: Getting Started
ability to use this scooter. Persons with head, back or neck ailments or prior surgeries to those areas of the body are not recommended to use this scooter and should consult a medical professional before using this scooter. Do not operate if you are pregnant, have a heart condition, or have both. ... -
Page 6: Description Of Parts
DESCRIPTION OF PARTS Electric Brake Steering Column LCD Display Release Lever Throttle Footpad Handlebar (L) Mechanical Brake Power Button Rear Hub Motor Handlebar (R) Kickstand Locking Clamp Charge Port... -
Page 7: Display And Controls
DISPLAY AND CONTROLS Electric Brake Reduces your speed by slowing down the motor LCD Display Shows current speed, and battery level Throttle Accelerates the scooter Handlebar (L) Left handle Power Button Press and hold 1 second to turn on/off the scooter Handlebar (R) Right handle INSTRUCTIONS FOR USE... - Page 8 Remove the charger prior to driving. The battery contains dangerous substances. DO NOT OPEN THE BATTERY. DO NOT INSERT ANYTHING INTO THE BATTERY. Only use the charger that was provided with the Scooter. DO NOT USE ANY OTHER CHARGERS. ...
-
Page 9: Attaching The Handlebars
OPENING THE KICKSTAND Locate the kickstand on the left side of the foot pad. Swivel it down completely so that it supports the weight of scooter while you continue to assemble it. ATTACHING THE HANDLEBARS Attach the handlebars by placing them into the appropriate positions an d twisting them in the correct direction. -
Page 10: Riding The Scooter
lit, indicating the device is powered on. Power Off: Press and hold the power button 2 seconds to turn off. RIDING THE SCOOTER Power on the scooter, you must first kick off the ground and then press the throttle for the motor to start. To slow down the scooter, press the brake. Note: If the handlebars do not attach flush to the frame, you may need to shift the ... -
Page 11: Safety Precautions
REPLAY is not liable for tickets or violations given to riders who do not follow local laws and regulations. -
Page 12: Weight And Speed Limitations
commercial applications, or for use on public roads or pathways. You are prohibited from using the Scooter on any roadway. Check with your local authorities to confirm where you can safely ride. Obey all laws that apply. Do not allow children, the elderly, or pregnant women to ride the Scooter. Do not drive the Scooter under the influence of drugs or alcohol. -
Page 13: Operating Range
OPERATING RANGE The scooter can travel a distance up to 5 miles on a fully charged battery in ideal conditions. The following are some of the major factors that will affect the operating range of your device. Terrain: Riding distance is highest when riding on a smooth, flat surface. Riding uphill and/or on rough terrain will reduce distance significantly. -
Page 14: Care And Maintenance
CARE & MAINTENANCE Do not expose the device to liquid, moisture, or humidity to avoid damage to the product's internal circuitry. Do not use abrasive cleaning solvents to clean the device. Do not expose the device to extremely high or low temperatures as this will ... -
Page 15: Limited Warranty
FCC INSTRUCTIONS Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product. NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 16 Manufacturer warranty only applies to products purchased through an authorized REPLAY retailer. Items purchased from private sellers, online auction sites, including eBay, liquidators, sold "as-is" or “final sale" or from clearance or going-out-of-business sales, are not covered by manufacturer warranty. The warranty period begins on date of purchase, not date of first use.
- Page 17 REPLAY or if our products are equipped with additional parts or accessories that are not approved for the REPLAY. Using any charger, other than a genuine REPLAY charger, or a charger for a different model, voids the warranty and is a serious fire hazard.
- Page 18 RMA number (Return Material Authorization) to send the product to REPLAY. If an RMA is issued, the package must be shipped within 14 days of the RMA issuance or the package will be refused and returned to sender. If, at the sole...
