Page 1

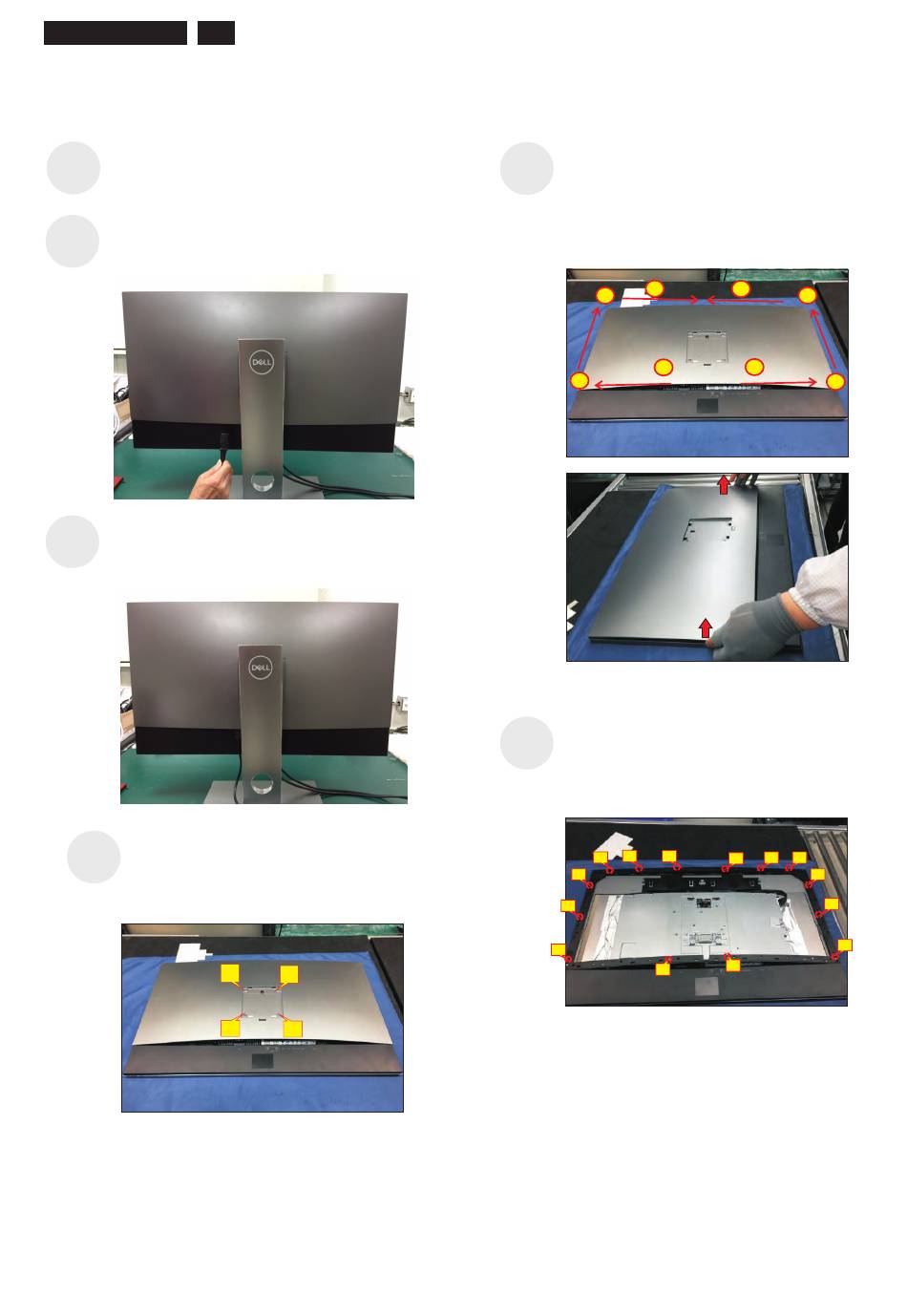

DELL UP3218K 1 Disassembly Procedures: Wedge your fingers between the rear cover and the middle bezel on the corners of the top side of the Turn off power monitor to release the rear cover, then use one hand to press the middle bezel, the other hand to pull up...
Page 2
DELL UP3218K Tear off three pieces of VBH tape on the specific Tear off 7 pieces of aluminum foil. Disconnect the position as the picture below shown. Disconnect the lamp cable from the connectors of the power board function key cable from the connector of the and panel module.
Page 3
DELL UP3218K Remove the middle iron bezel. Tear off the mylar tape Turn over the bracket chassis. Use a Philips-head for releasing the function key cable from the hooks of screwdriver to remove 4 screws for unlocking the interface board and LED driver board. Disconnect the middle iron bezel.
Page 4
DELL UP3218K Remove electrolyte capacitors (red mark) from printed circuit boards S1 -1 Cut the glue between bulk cap. and PCB with a knife S1 -2 Ensure cutting path within the glue, don’t touch bulk cap. or PCB S1 -3 Cut into the bottom of bulk cap. and pull it up carefully...
Page 5
DELL UP3218K S1 -4 Take out bulk cap. pin solder with soldering iron and absorber S1 -5 Lift the bulk cap. up and away from the PCB...
Page 6
DELL UP3218K . Product material information The following substances, preparations, or components should be disposed of or recovered separately from other WEEE in compliance with Article 4 of EU Council Directive 75/442/EEC. Capacitors / condensers (containing No used PCB/PCT) Mercury containing components...
