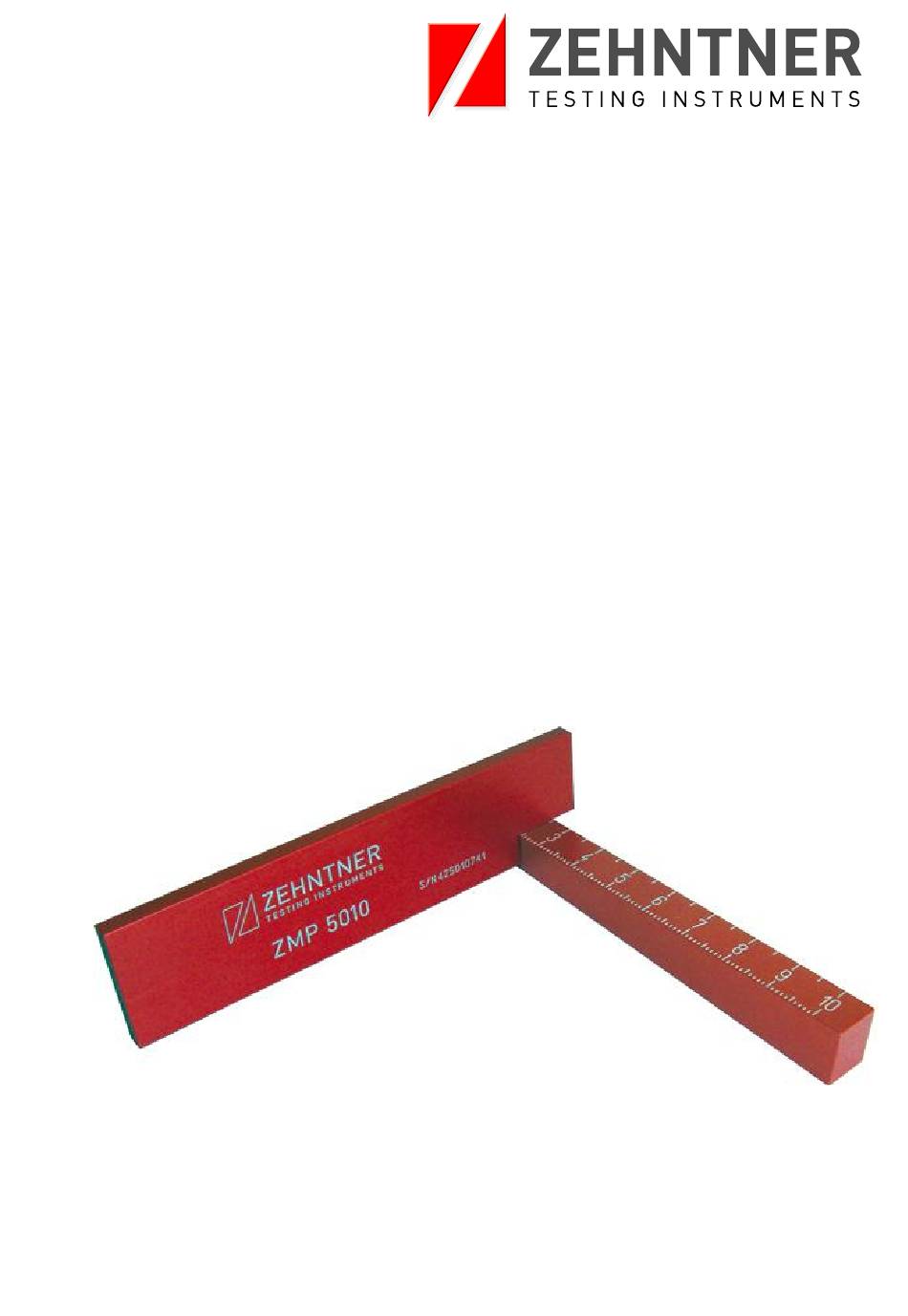

- Page 1 Zehntner GmbH Testing Instruments Gewerbestrasse 4 CH-4450 Sissach Switzerland Tel +41 (0)61 953 05 50 Fax +41 (0)61 953 05 51 zehntner@zehntner.com www.zehntner.com Instruction manual version 2.6 dated 18.06.2015 ZMP 5010 Marking-wedge Gauge last update: 18.06.2015 page 1...
-
Page 2: Table Of Contents
Exclusion of liability Illustrations, descriptions as well as the technical specifications conform to the instruction manual at hand at the time of publishing or printing. However, Zehntner GmbH Testing Instruments policy is one of continuous product improvement. All changes resulting from technical progress, modified construction or similar are reserved without obligation for Zehntner to update. -
Page 3: Description Of Device

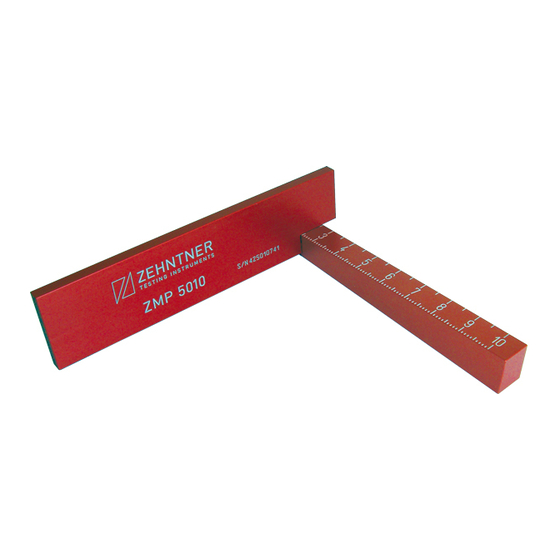

ZMP 5010 Instruction manual Genera Description of device Summary The ZMP 5010 Marking-wedge Gauge is for quick determination of dry film thickness of road markings and similar coatings. Application / application areas: For traffic authorities, road laboratories, manufacturers of road markings and •... -
Page 4: Delivery Of Device
Never leave the ZMP 5010 under direct sun exposure. Always store the ZMP 5010 in it’s carrying case. Zehntner GmbH Testing Instruments refuses all warranty and liability claims for damages caused by usage of the ZMP 5010 in combination with non-original accessories, or accessories from 3 party suppliers. -
Page 5: Standard Delivery
Marking-wedge Gauge certificate of manufacturer carrying case Zehntner GmbH Testing Instruments refuses all warranty and liability claims for damages caused by usage of the ZMP 5010 in combination with non-original accessories, or accessories from 3 party suppliers. last update: 18.06.2015... -
Page 6: Handling
Operate ZMP 5010 Instruction manual version 2.6 Handling Place the wedge beside the marking to be tested and the gauge at an angle of • 90° to the wedge vertically on the marking (see picture 1). Commence at the beginning of the wedge or, in any case, below the film •... -
Page 7: Technical Specification
2.6 ZMP 5010 Instruction manual Technical specification Technical specification Material: red, hard finish, solvent-resistant aluminium Test range: 0 mm – 10 mm (0” – 0.39”) Resolution: 0.1 mm (3.94 mil) Dimensions: length of the wedge: 220 mm (8.66”) length of the gauge: 200 mm (7.87”) Weight: 400 g (0.88 lbs) -
Page 8: Glossary
Description of device ......3 Safety notes ........3 Exclusion of liability ......2 Standard delivery ......5 Extent of delivery ....... 5 Technical specification ..... 7 Features ..........3 Transportation damage ....4 Handling ZMP 5010 ......6 page 8 last update: 18.06.2015...
