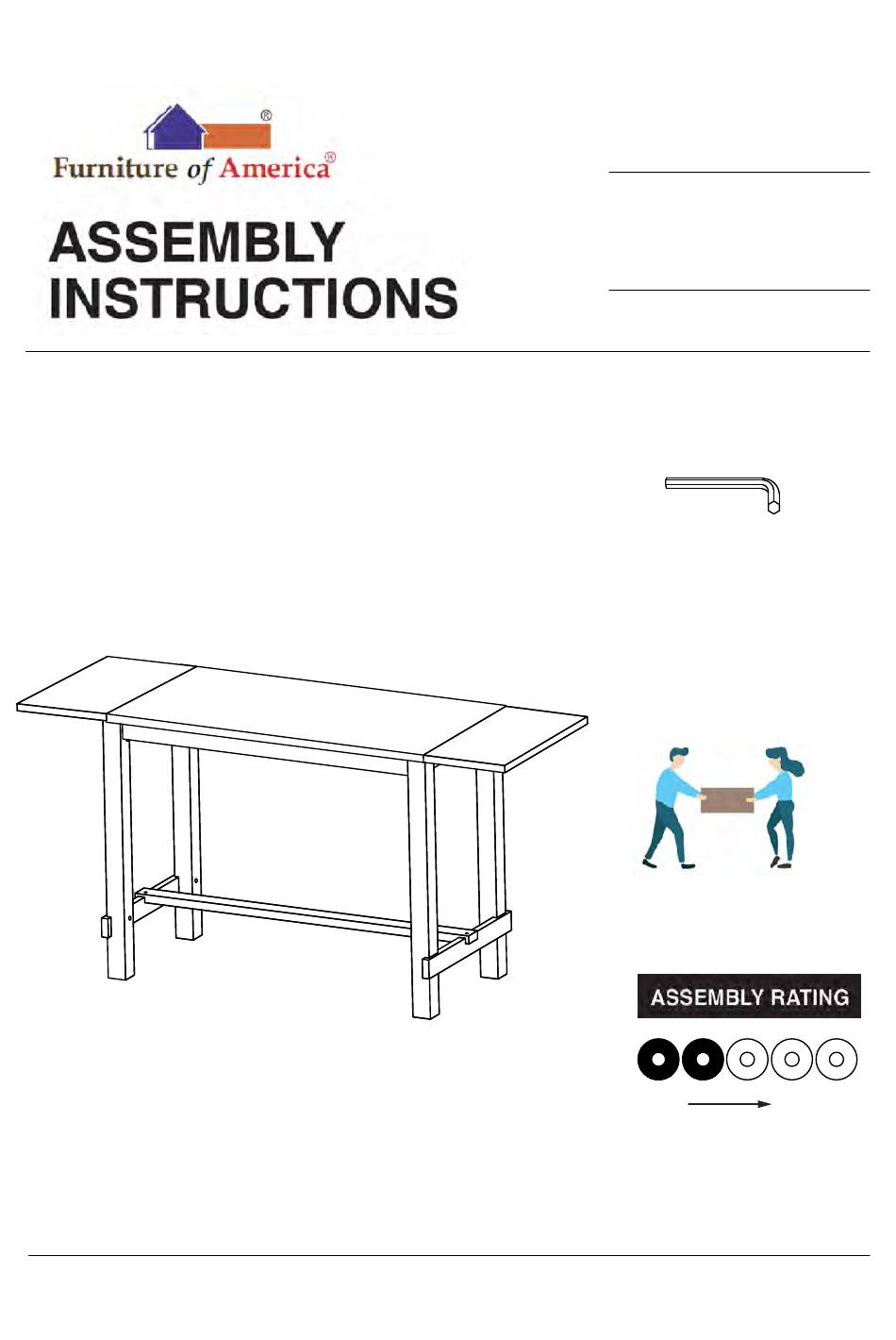

- Page 1 MODEL # CM3547-PT Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PT) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 8...
- Page 5 COUNTER HEIGHT TABLE WITH 2x 12'' DROP LEAF CM3547-PT #1 2pcs #2 2pcs #3 1pc Table Leg ❶ Table Leg ❷ Base Stretcher #4 1pcs #5 2pcs Table Top Side Stretcher #A 6pcs #B 8pcs #C 6pcs #D 8pcs #E 6pcs...
- Page 6 ASSEMBLY INSTRUCTIONS Align Table Leg (#1,2) to the Table Top (#4), secure by using bolts (#B) with washers (#D,F). ❷ Part #1 x2pcs Part #2 x2pcs Part #4 x1pc ❶ Hardware ❶ #B x8pcs Hardware #D x8pcs ❷ Hardware #F x8pcs Hardware # I x1pc Align Side Stretcher (#5) to the Table Leg...
- Page 7 ASSEMBLY INSTRUCTIONS Align Base Stretcher (#3) to the Side Stretcher (#5), secure by using bolts (#A) with washers (#C,E). Part #3 x1pc Hardware #A x2pcs Hardware #C x2pcs Hardware #E x2pcs Hardware #H x1pc Remove the adhesive backing of Felt Pad Hardware #J x4pcs (#J), affix it to the back of the table leaf...
- Page 8 ASSEMBLY INSTRUCTIONS 25 lbs 50 lbs (11 kgs) (23 kgs) 8 / 8...
