VERSION
# 20-09-28
1 / 8

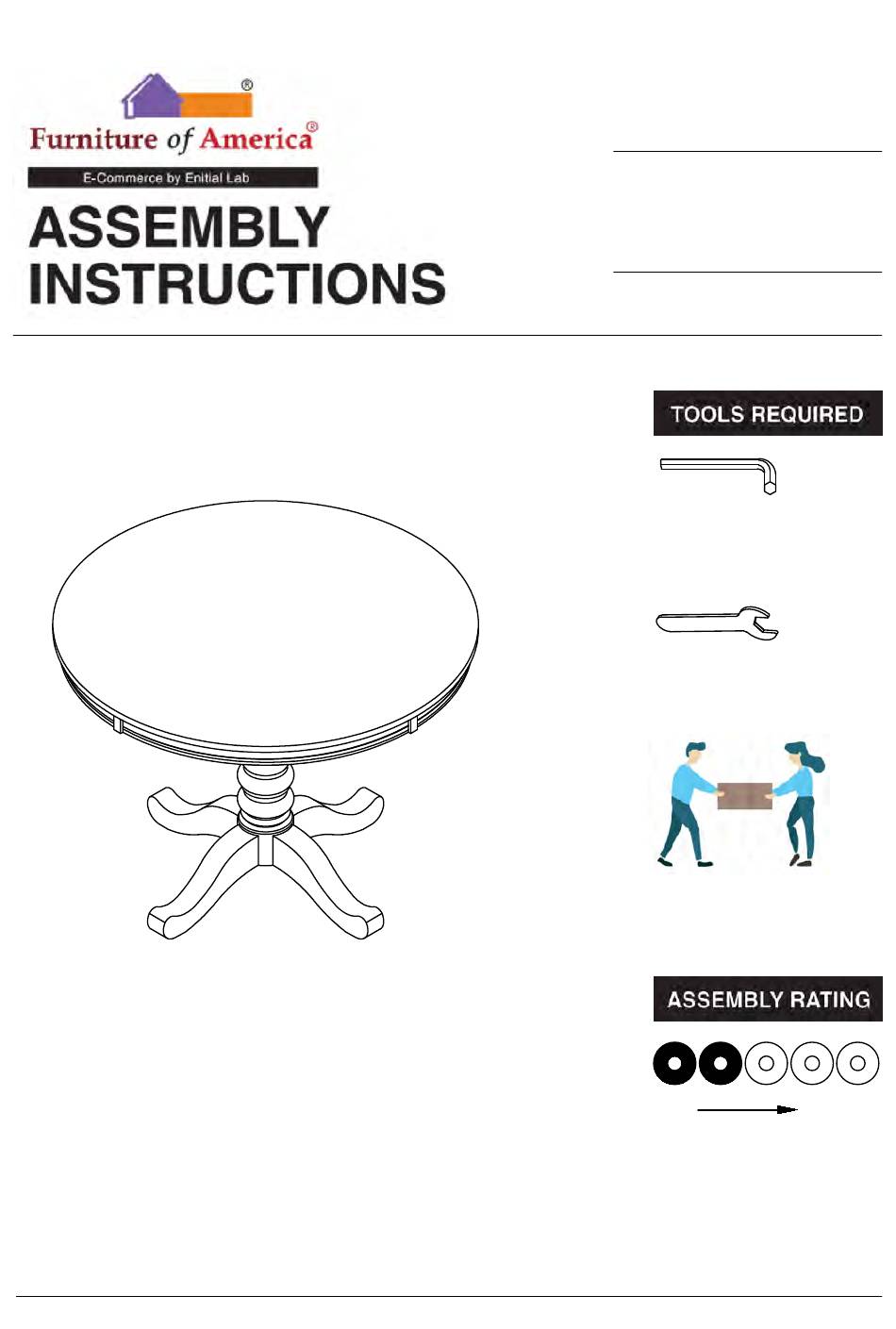

MODEL #
CM3546RT
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3546RT
Summary of Contents for Furniture of America CM3546RT
- Page 1 MODEL # CM3546RT Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...

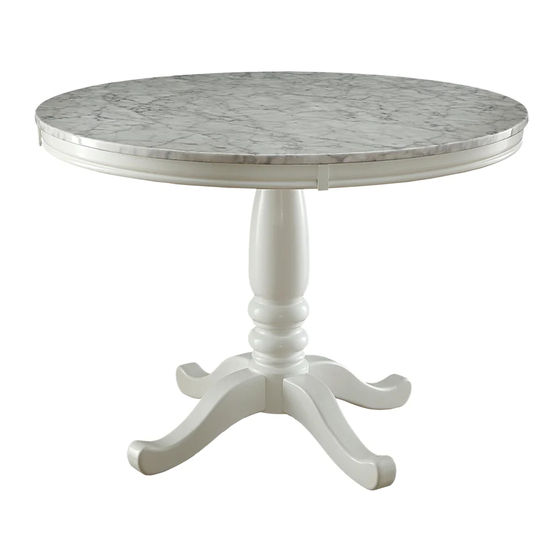

- Page 5 ROUND TABLE CM3546RT #1 1pc #2 1pc #3 1pc #4 4pcs Legs Support panel Pedestal Table Top #A 8pcs #B 12pcs #C 12pcs #D 4pcs Nut Ø5/16" Lock Washer Ø5/16" Flat Washer Ø5/16" Bolt Ø5/16" x 1-1/2" #F 1pc #E 1pc Allen Wrench Wrench Ø5/16"...
- Page 6 CM3546RT is packed in 2 cases Disignation Part Hardware Carton #Ax 8 pcs #Bx 12 pcs Table Top #C x 12 pcs CM3546 #D x 4 pc s RT-1 # E x 1 pc Support Panel # F x 1pc...
- Page 7 ASSEMBLY INSTRUCTIONS Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align support panel (#2) to the holes of the pedestal (#3), then secure with bolts (#A). Part Part Hardware Hardware Hardware Part Insert the legs (#4) through the holes of the pedestal (#3), then place the flat washer (#C) and Hardware lock washer (#B) onto the threaded bolts of the legs (#4) from the inside of the pedestal (#3).
- Page 8 ASSEMBLY INSTRUCTIONS Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align the base of the table to the holes of the table top (#1). Part Secure with bolts (#A). #A x4pcs #B x4pcs #C x4pcs 8 / 8...
