AT2P

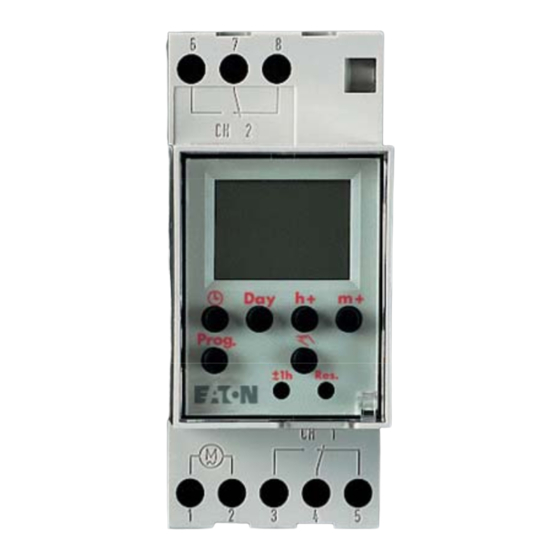

Digital Quartz Timer
Technical Data
Specifications
•
Direct mounting onto 35mm din rail.
•
Optional wall surface-mounting set for 2-3 module
spacing
•
BS5584
•
Fully programmable 2 channel 2 modules.
•
Occupying 2 x 18mm modules
Ordering Information
Ref.
Description
AT2P
Digital Quartz Timer Fully Programmable , 2 module, 2 channel
Eaton Electric Limited
Reddings Lane
Birmingham, B11 3EZ
United Kingdom
Tel: 08700 545 333
Fax: 08700 540 333
www.eatonelectrical.com
Details
Dimension (H x W x D) mm
Distributor cut-out mm
Weight g (approx.)
Switching capacity at
-ohmic load (VDE, IEC)
-inductive load cos φ0.6
-glow lamp load
Switching contacts
Running accuracy
Running reserve type
Running reserve
Shortest switching time
Programmable
Memory locations
Switching pre-selection
Hand switch
Switching state display
Block formation of weekdays
Summer/winter time switchover automatic/freely
Connection type
Ambient temperature
Led sealable
45 x 36 x 60
46 x 36
170
230 V AC
16A/250 V AC
2,5 A/250 V AC
1000 W
1 or 2 changeover
contacts
0
+ 2.5s/day at + 20
C
Lithium
150
1 minute
every minute
20/30
yes
Automatic-pre-selection
Fix ON
yes
fixed assignment
selectable
captive +/- screw
terminals
0
0
-25
C ... + 55
C
yes
2007 Eaton Electrical Limited
All rights reserved
May 2007
Advertisement
Related Manuals for Eaton AT2P
Summary of Contents for Eaton AT2P
- Page 1 Description AT2P Digital Quartz Timer Fully Programmable , 2 module, 2 channel Eaton Electric Limited Reddings Lane Birmingham, B11 3EZ United Kingdom 2007 Eaton Electrical Limited Tel: 08700 545 333 All rights reserved Fax: 08700 540 333 www.eatonelectrical.com May 2007...
- Page 2 Digital Quartz Timer Product Code: AT2P Safety instruction: • When operating the clock safety low voltage, only safety low voltage may be connected. • When operating the clock with function low voltage, mains voltage (230 ~) or function low voltage may be connected.
- Page 3 Digital Quartz Timer Product Code: AT2P 3. Control elements Start program input Hand switch Set time, Prog. End program input Select day(s) Enter pulse/ of the week cycle Res. Clear Delete switching time Reset Set hours, day, year Set minutes, month, year Summer time/winter time switch over 4.
- Page 4 Digital Quartz Timer Product Code: AT2P 5. Factory Settings cont. AM/PM switch-over Switch clock is in current operating mode 1. Press h and keep pressed 2. - Press Res once - all segments are displayed - after approx. 1 second the following appears: AM, 12.00 and 3 (Wednesday)
- Page 5 Digital Quartz Timer Product Code: AT2P 6.2 Calendar month and day— Select the Operating mode 6.2.1 AU = Automatic changeover 6.2 AU or 6.2.2 cHA or 6.2.3 no Prog. Press the key once 18:30 Res. Clear Press the +1h key 1 once, Prog.
- Page 6 Digital Quartz Timer Product Code: AT2P Press the key 1 once Prog. 18.30 Res. Clear Press the +1h key as often as Prog. necessary until cHA appears c HA date Res. Clear Press the Prog key once Prog. 19 97 date Res.
- Page 7 Digital Quartz Timer Product Code: AT2P Confirm with the Prog key. Prog. The start of summer time is displayed date 29.03. Res. Clear Prog. Set the individual summer time start: With the m key-month date 30.04. With the h key-day Res.
- Page 8 Digital Quartz Timer Product Code: AT2P 6.2.3 no = no changeover-only weekly time switch Press the key once. Prog. 18.30 Res. Clear Press the +1h as often as necessary Prog. until no appears. The time switch operators without a date date! Res.
- Page 9 Digital Quartz Timer Product Code: AT2P 7. Standard switching commands cont. Prog. Set the switching times: With the m key-minutes 18.40 With the h key-hours For weekday adjustment, see: Block formation of weekdays, Point 8. CH2: Res. Clear Set the switching state: Prog.
- Page 10 Digital Quartz Timer Product Code: AT2P 8. Fixed weekday block formation-only weekly time switch cont. Press the Day key once Prog. All 7 days of the week are activated 00.00 CH2: Res. Clear Prog. Activating/deactivating days of the week: Jog the Day key stepwise 00.00...
- Page 11 Digital Quartz Timer Product Code: AT2P 9. Read-change-delete- reset • You can read the program contents stepwise • You can change or overtype the program contents • You can delete the program contents • You can delete the date and time Read: Press the Prog key Step by step.
- Page 12 Digital Quartz Timer Product Code: AT2P 9. Read-change-delete- reset cont. Reset: Press the Reset key once The set date and time are reset. The factory setting date AU = automatic s/w time changeover is 00:00 active (31.12.1997, 00:00) 0 0:0 0.
