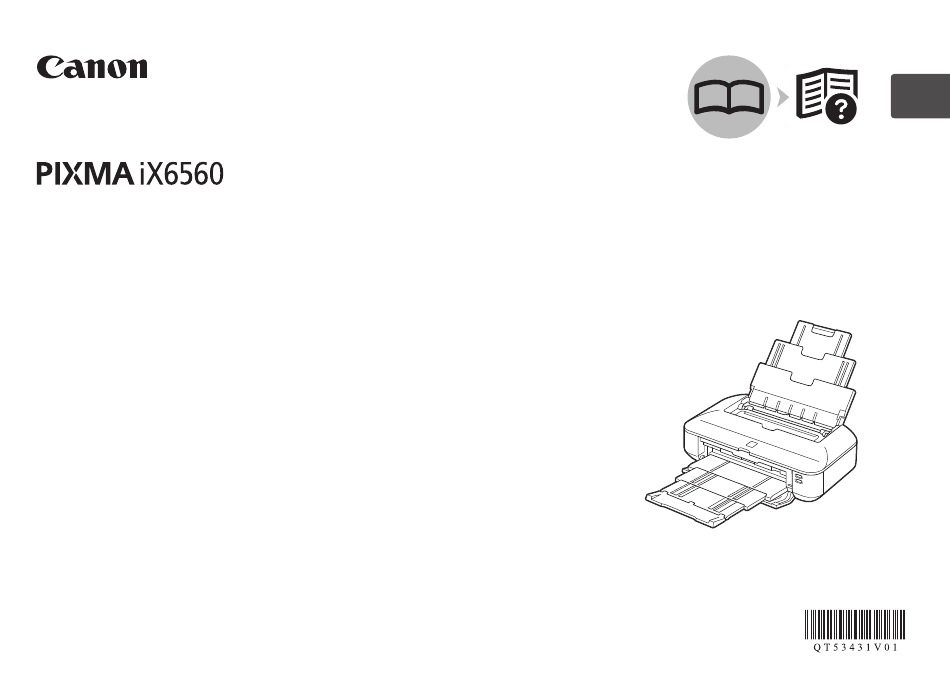

Canon PIXMA iX6560 Getting Started

Hide thumbs Also See for PIXMA iX6560:

Advertisement

Quick Links

Download this manual
Getting Started
入門指南
입문 가이드
คำแนะนำเริ ่ ม ต้ น
Make sure to read this manual before using the printer. Please keep it in hand for future reference.
確保在使用印表機之前閱讀本手冊。請妥善保管以便日後使用。
프린터를 사용하기 전에 이 설명서를 읽도록 하십시오. 나중에 참고할 수 있도록 이를 가까운 곳에 보관해 두십시오.
กรุ ณ าอ่ า นคู ่ ม ื อ นี ้ ก ่ อ นใช้ ง านเครื ่ อ งพิ ม พ์ และเก็ บ รั ก ษาคู ่ ม ื อ ไว้ เ พื ่ อ การอ้ า งอิ ง ในภายหน้ า
ENGLISH
繁體中文
한국어
ภาษาไทย

Advertisement

loading

Related Manuals for Canon PIXMA iX6560

Summary of Contents for Canon PIXMA iX6560

  • Page 1 ENGLISH 繁體中文 한국어 ภาษาไทย Getting Started 入門指南 입문 가이드 คำแนะนำเริ ่ ม ต้ น Make sure to read this manual before using the printer. Please keep it in hand for future reference. 確保在使用印表機之前閱讀本手冊。請妥善保管以便日後使用。 프린터를 사용하기 전에 이 설명서를 읽도록 하십시오. 나중에 참고할 수 있도록 이를 가까운 곳에 보관해 두십시오. กรุ...
  • Page 2 ■ เครื ่ อ งหมายที ่ ใ ช้ ใ นเอกสารนี ้ ■ Symbols Used in This ■ ■ 本文件中使用的符號 이 문서에서 사용되는 기호 Document Prohibited actions. การดำเนิ น การที ่ ถ ู ก ห้ า ม 禁止的操作。 금지된 작업입니다. ขั ้ น ตอนการใช้ น ี ้ ม ี ข ้ อ มู ล สำคั ญ รวมอยู ่ ด ้ ว ย Instructions including important 包含重要資訊的說明。...
  • Page 3 On-screen manuals can be viewed on a computer. They are included on the Setup CD-ROM and are installed during the software installation. Some parts of the manual may be displayed in English. For details on opening the on-screen manuals, refer to page 28. 可以在電腦上檢視電子手冊。它們包含在安裝光碟中，在軟體安裝過程中安裝。手冊部分內容可能以英文顯示。關於開啟電子手冊的詳細資訊，請參閱第28頁。...
  • Page 4 สารบั ญ ■ ■ Contents ■ ■ 目錄 목차 1 การจั ด เตรี ย ม P.3 1 Preparation P.3 1 準備工作 P.3 1 준비 P.3 2 Install the Print Head P.7 2 安裝列印頭 P.7 2 ติ ด ตั ้ ง หั ว พิ ม พ์ P.7 2 프린트...
  • Page 5 Remove all orange tape and protective materials from the inside and • Do not install the printer where an object may fall on it. In addition, do outside of the printer. not place any object on the top of the printer. It may fall into the printer when opening covers, resulting in malfunction.
  • Page 6 Make sure all the following items are supplied. Insert the power cord into the connector on the left side at the back of the printer and into the wall outlet firmly. 1. Print Head 5. Setup CD-ROM (containing the drivers, applications and on-screen manuals) 2.
  • Page 7 Press the ON button (A) to turn on the printer. Make sure that the lamp (B) of the ON button lights blue. • It takes about 5 seconds for the ON button to work after the power cord is plugged in. 按電源按鈕(A)開啟印表機。...
  • Page 8 When it is necessary to turn off the printer 需要關閉印表機電源時 프린터를 꺼야 하는 경우 เมื ่ อ จำเป็ น ต้ อ งปิ ด เครื ่ อ งพิ ม พ์ • The specification of the power cord differs for each country or region. • 每個國家或地區的電源線規格都有所不同。 • 전원 코드의 사양은 각 국가 또는 지역에 따라 다릅 니다.
  • Page 9 Open the Front Cover (A). Open the Top Cover (B). 開啟前蓋(A)。 開啟上蓋(B)。 앞면 커버(A)를 엽니다. 상단 커버(B)를 엽니다. เปิ ด ฝาครอบด้ า นหน้ า (A) เปิ ด ฝาครอบด้ า นบน (B)
  • Page 10 The Print Head Holder (C) moves to the installation position. Firmly lift the part (D) of the Print Head Lock Lever in the Print Head Holder until it stops. If the Print Head Holder does not move, make sure that the printer is turned on. For details, refer to •...
  • Page 11 Remove the Print Head from the silver package. Remove the orange protective cap. • Handle the Print Head carefully. Do not drop or apply excessive pressure to it. • Do not touch the inside (F) or metal parts (G) of the Print Head. The printer may not print properly if you touch them. •...
  • Page 12 Tilt the Print Head forward and set it in place as shown. Hold the Print Head Lock Lever firmly and lower it completely. • Do not knock the Print Head against the sides of the holder. • Once you have installed the Print Head, do not remove it unnecessarily.
  • Page 13 1. Remove the orange tape completely. 1. Hold the ink tank with the orange protective cap (A) pointing up. 2. Remove the protective film completely. 2. Hold the ink tank being careful not to cover the area (B) including the L-shape air hole.
  • Page 14 Hold the ink tank by its sides and slowly twist the orange protective cap 90 Tilt the ink tank, then insert it under the label and against the back end of the slot. degrees horizontally to remove it off. Make sure that the color of the label matches the ink tank. Do not push the sides of the ink tank.
  • Page 15 Press the PUSH mark on the ink tank firmly until it clicks. Install all the other ink tanks in the same way according to the color order indicated on the label. When the installation is completed properly, the Ink lamp lights red. Make sure all the Ink lamps light red.
  • Page 16 1. Close the Top Cover (E). 2. Wait for about 4 to 5 minutes until the lamp of the ON button (blue) (F) stops flashing and stays lit, then proceed to the next step. The printer may make some operating noises when preparing to print. This is normal operation. •...
  • Page 17 Extend the Paper Move the Paper Guides Load A4 or Letter-sized plain Slide the left and right Paper Guides against Support (A). (C) to both edges. paper in the center of the Rear both edges of the paper. Tray (D). Make sure that the Paper Make sure that the height of the paper stack does not Support (B) is open.
  • Page 18 Do not connect the USB cable yet. 請勿連接USB電纜線。 아직 USB 케이블을 연결하지 마십시오. อย่ า เชื ่ อ มต่ อ สายเคเบิ ล USB To use the printer by connecting it to a computer, software 要透過連接至電腦使用印表機，需要將包括驅動程式在內的軟體複 including the drivers needs to be copied (installed) to the 製(安裝)至電腦的硬碟。安裝過程大約需要20分鐘。(根據電腦環境...
  • Page 19 Easy-WebPrint EX Easy-WebPrint EX If the USB cable is connected before the software is installed Easy-WebPrint EX 如果在安裝軟體之前連接了USB電纜線 Easy-WebPrint EX 소프트웨어를 설치하기 전에 USB 케이블이 연결된 경우 หากเชื ่ อ มต่ อ สายเคเบิ ล USB ก่ อ นการติ ด ตั ้ ง ซอฟต์ แ วร์ For Windows 7 Easy-WebPrint EX is Web print software that is installed on the...
  • Page 20 Press the ON button (A) to TURN OFF THE 1. Make sure that the printer has turned off. For Windows PRINTER. 2. Turn on the computer. • If the program does not start automatically, double-click Operating noise may continue for up to 30 seconds until the 3.
  • Page 21 Windows 7/Windows Vista Click Run Msetup4.exe on the AutoPlay screen, then click Yes or Windows XP Continue on the User Account Control dialog box. If the User Account Control dialog box reappears in following steps, click Yes or Continue. 在自動播放(AutoPlay)螢幕上按一下執行Msetup4.exe(Run Msetup4.exe)， 然後在使用者帳戶控制(User Account Control)對話方塊上按一下是(Yes) 或繼續(Continue)。...
  • Page 22 Select your place of residence, then click Next. Select a country or region, then click Next. • If the Select Language screen appears, select a language, then click Next. 選擇居住地，然後按一下下一步(Next)。 選擇國家或地區，然後按一下下一步(Next)。 • 如果出現選擇語言(Select Language)螢幕，選擇一種語言，然後按一下下一步(Next)。 사용자의 거주지를 선택한 후 다음(Next)을 클릭합니다. 국가...
  • Page 23 Click Easy Install. Click Install. The drivers, application software, and on-screen manuals are installed. Follow any on-screen instructions to proceed with the software installation. • If you want to select particular items to install, click Custom Install. 按一下簡易安裝(Easy Install)。 按一下安裝(Install)。 將安裝驅動程式、應用程式軟體和電子手冊。...

  • Page 24: Usb連接埠

    USB Port USB連接埠 USB 포트 พอร์ ต USB When this screen is displayed, 1. Extend the Paper Output Tray (B). 2. Make sure that A4 or Letter-sized plain paper is loaded in the Rear Tray (C). 3. Click Execute. When the Printer Connection screen appears, connect the printer to the computer with a USB cable.
  • Page 25 When the Start Print Head Alignment screen appears, click Align Print Head. Click OK in the subsequent message. Print Head Alignment takes about 3 minutes to complete. Do not open the Top Cover (D) while printing. 開始列印頭校準(Start Print Head Alignment)螢幕出現時，按一下對齊列印頭(Align Print Head)。 在隨後的訊息中按一下確定(OK)。...
  • Page 26 When the pattern is printed, Print Head Alignment is complete. Remove the paper. In Windows, click Next on the Print Head Alignment screen. • If the Alarm lamp (orange) (E) flashes, press the RESUME/CANCEL button (E) on the printer to clear the error, then click Next. After the installation is complete, perform Print Head Alignment by referring to "When Printing Becomes Faint or Colors Are Incorrect"...
  • Page 27 If the Extended Survey Program screen appears If the serial number is not displayed on the registration screen, input the number found inside the printer. 如果註冊螢幕上未顯示序列號，請輸入從印表機內部找到的號碼。 如果出現Extended Survey Program螢幕 일련 번호가 등록 화면에 표시되지 않을 경우, 프린터 내부에 있는 번호를 입력합니다. Extended Survey Program 화면이...
  • Page 28 Solution Menu EX เริ ่ ม ต้ น สำหรั บ Macintosh Solution Menu EX เริ ่ ม เมื ่ อ คลิ ก OK ในไดอะล็ อ กบ็ อ กซ์ Canon Solution Menu EX นำ Setup CD-ROM ออกและเก็ บ ไว้ ใ นที ่ ป ลอดภั ย...
  • Page 29 Congratulations! Setup is complete. To learn more about the Solution Menu EX and Installing the XPS Printer Driver on-screen manual, proceed to page 28. To start In Windows 7 and Windows Vista SP1 or later, the XPS using the printer, proceed to page 30. Printer Driver can be installed additionally.
  • Page 30 Solution Menu EX Various application software are installed on the computer along with the drivers. You can print creative items by correcting/enhancing Solution Menu EX is a gateway to functions and information that allow you to make full photos using the application software. use of the printer! For example, For details on how to use the application •...
  • Page 31 เข้ า ไป Solution Template ได้ อ ย่ า งไร คลิ ก บริ ก ารเว็ บ Canon(Canon Web Service) จากนั ้ น คลิ ก ไอคอนนี ้ เ พื ่ อ เข้ า ไปที ่ เ ว็ บ ไซต์ ซึ ่ ง มี ว ั ต ถุ ท ำการพิ ม พ์...
  • Page 32 Load paper in the Rear Tray (A) in portrait orientation with the printing side facing up. Make sure that the Front Cover (B) is open. This section explains how to print images stored on the computer. • For details, refer to "4 Load Paper" on page 15. 將紙張列印面向上縱向載入後端托盤(A)。...
  • Page 33 케이션 소프트웨어"를 참조하십시오. เริ ่ ม ใช้ Solution Menu EX ได้ จ ากไอคอน Canon Solution Menu EX บน เดสก์ ท ็ อ ป เลื อ กโฟลเดอร์ ท ี ่ ม ี ร ู ป ภาพ จากนั ้ น เลื อ กรู ป ภาพที ่ ค ุ ณ...
  • Page 34 Click Layout/Print, then select a layout for the image. Click Print. For more If you are using Windows, printing will start. information, refer If you are using Macintosh, click Print on the Print dialog box to start printing. to the on-screen manual: Advanced Guide.

  • Page 35: Hi-Speed Usb

    Weight • Windows: Uninstall software bundled with the Canon inkjet printer before upgrading from Windows Vista to Approx. 7.6 kg (Approx. 16.7 lb) Windows 7, then, install the bundled software again. * With the Print Head and ink tanks installed.

  • Page 36: Table Of Contents

    Windows：從Windows Vista升級至Windows 7之前，請先解除安裝Canon IJ印表機綑綁的軟體，然後重新安裝 大約21.7(寬)×11.8(深)×6.3(高)in * 托紙架和出紙托盤收回的狀態下。 該綑綁軟體。 • Macintosh：必須將硬碟格式化為Mac OS Extended(Journaled)或Mac OS Extended。 重量 • Macintosh：從Mac OS X v.10.5或更低版本升級至Mac OS X v.10.6之後，安裝Canon IJ印表機綑綁軟體。 大約7.6kg(大約16.7lb) • 需要安裝Internet Explorer 7或更新版本(Windows)或Safari 4或更新版本(對於Mac OS X v.10.5或更新版本)才能 * 安裝了列印頭和墨水盒的狀態下。 安裝Easy-WebPrint EX。 列印頭/墨水 總共4608個噴嘴(PgBK 512個噴嘴、Y/DyeBK各512個噴嘴、C/M各1536個噴嘴) 規格如有變更，恕不另行通知。...
  • Page 37 Macintosh: 하드 디스크는 반드시 Mac OS Extended(Journaled) 또는 Mac OS Extended로 포맷되어야 합니다. 약 7.6kg(약 16.7lb) • Macintosh: Mac OS X v.10.5 이전 버전을 Mac OS X v.10.6으로 업그레이드한 후 Canon 잉크젯 프린터 번들 소 * 프린트 헤드 및 잉크 탱크가 설치된 상태입니다. 프트웨어를 설치하십시오.

  • Page 38: Intel處理器、Powerpc G5、Powerpc G4

    Windows: ลบการติ ด ตั ้ ง ซอฟต์ แ วร์ ท ี ่ จ ั ด มาให้ พ ร้ อ มกั บ เครื ่ อ งพิ ม พ์ inkjet Canon ก่ อ นการอั พ เกรดจาก Windows Vista เป็ น Windows 7...
  • Page 39 CANON HONGKONG CO.LTD. 19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, The following ink tanks are compatible with this printer. Kowloon, Hong Kong CANON KOREA BUSINESS SOLUTIONS INC. 以下墨水盒與印表機相容。 168-12 Samseong-Dong, Gangnam-gu, Seoul, Korea 다음의 잉크 탱크는 이 프린터와 호환됩니다.
