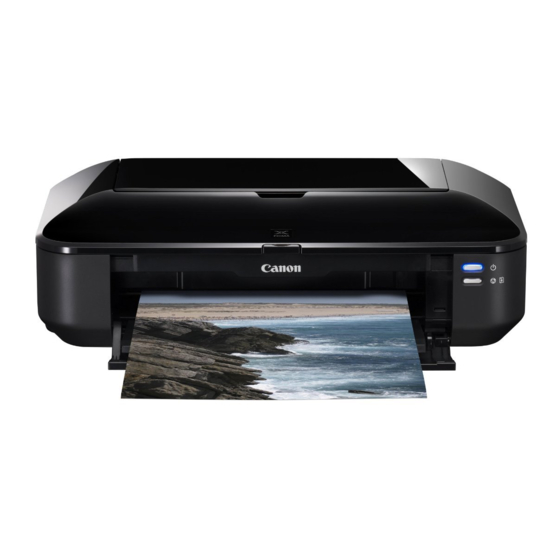

Canon PIXMA iX6520 Series Getting Started

Inkjet business printer
Hide thumbs

Advertisement

Quick Links

Canon Inkjet Business Printer
Impresora de inyección de tinta para empresas Canon

Getting Started

Read Me First

Guía de inicio
Léame en primer lugar
Make sure to read this manual before using the printer. Please keep it in hand for future reference.
Asegúrese de leer este manual antes de utilizar la impresora. Consérvelo a mano para utilizarlo como referencia en el futuro.
series
ENGLISH
ESPAÑOL

Advertisement

loading

  Also See for Canon PIXMA iX6520 Series

  Summary of Contents for Canon PIXMA iX6520 Series

  • Page 1: Getting Started

    Canon Inkjet Business Printer Impresora de inyección de tinta para empresas Canon series Getting Started Read Me First Guía de inicio Léame en primer lugar Make sure to read this manual before using the printer. Please keep it in hand for future reference.
  • Page 2 On-screen manuals can be viewed on a computer. They are included on the Setup CD-ROM and are installed during the software installation. Some parts of the manual may be displayed in English. For details on opening the on-screen manuals, refer to page 20. Los manuales en pantalla se pueden ver en un ordenador.
  • Page 3 ■ Contents ■ Symbols Used in This Document 1 Preparation P.2 2 Install the Print Head P.5 3 Install the Ink Tanks P.8 4 Load Paper P.11 5 Install the Software P.12 • In this guide, Windows 7 operating system is referred to as Windows 7 and Windows Vista 6 Application Software P.20 operating system as Windows Vista.
  • Page 4 • Do not install the printer where an object may fall on it. In addition, do not place any object on the top of the printer. It may fall into the printer when opening covers, resulting in malfunction. • No instale la impresora donde le pueda caer algún objeto. Además, no coloque ningún objeto encima de la impresora.
  • Page 5 Make sure all the following items are supplied. 1. Print Head 5. Setup CD-ROM (containing the drivers, applications and on-screen manuals) 2. Ink tanks (5: BK, M, C, PGBK, Y) 6. Other documents 3. Manuals 4. Power cord • A USB cable is necessary to connect the printer with your computer. Compruebe que no falta ninguno de los elementos siguientes.
  • Page 6 Press the ON button (A) to turn on the printer. • It takes about 5 seconds for the ON button to work after the power cord is plugged in. Pulse el botón ACTIVADO (ON) (A) para encender la impresora. • Una vez conectado el cable de corriente, el botón ACTIVADO (ON) tarda unos 5 segundos en ponerse en funcionamiento.
  • Page 7 Open the Front Cover (A). Abra la cubierta delantera (A). Open the Top Cover (B). The Print Head Holder (C) moves to the installation position. If the Print Head Holder does not move, make sure that the printer is turned on. For details, refer to Preparation”.
  • Page 8 Firmly lift the part (D) of the Print Head Lock Lever in the Print Head Holder until it stops. • Do not touch the inside of the Print Head Holder (E). The printer may not print properly if you touch it. Levante firmemente la parte (D) de la palanca de bloqueo del cabezal de impresión del soporte del cabezal de impresión hasta que se detenga.
  • Page 9 Tilt the Print Head forward and set it in place as shown. • Do not knock the Print Head against the sides of the holder. Incline el cabezal de impresión hacia adelante y sitúelo como se muestra. • No golpee el cabezal de impresión contra los laterales del soporte. Hold the Print Head Lock Lever firmly and lower it completely.
  • Page 10 1. Remove the orange tape completely. 2. Remove the protective film completely. • Handle the ink tanks carefully. Do not drop or apply excessive pressure to them. • Be sure to use the supplied ink tanks. • If the orange tape remains on the L-shape air hole, ink may splash or the printer may not print properly. •...
  • Page 11 Hold the ink tank by its sides and slowly twist the orange protective cap 90 degrees horizontally to remove it off. Do not push the sides of the ink tank. • Do not touch the inside (C) of the orange protective cap or the open ink port (D). The ink may stain your hands if you touch them.
  • Page 12 Install all the other ink tanks in the same way according to the color order indicated on the label. Make sure all the Ink lamps light red. • Once you have installed the ink tanks, do not remove them unnecessarily. •...
  • Page 13 Extend the Paper Support (A). Make sure that the Paper Support (B) is open. Despliegue el soporte del papel (A). Compruebe que el soporte del papel (B) está abierto. Move the Paper Guides Load A4 or Letter-sized plain (C) to both edges. paper in the center of the Rear Tray (D).
  • Page 14 Do not connect the USB cable yet. No conecte aún el cable USB. To use the printer by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk. The installation process takes about 20 minutes.
  • Page 15 If the USB cable is connected before the software is installed Si el cable USB está conectado antes de instalar el software For Windows 7 1. Remove the USB cable connected to your computer. 2. Proceed to For Windows Vista/Windows XP This dialog box may appear.
  • Page 16 1. Make sure that the printer has turned off. 2. Turn on the computer. 3. Insert the Setup CD-ROM into the CD-ROM drive. If you are using Windows, the setup program starts automatically. For Windows • If the program does not start automatically, double-click the CD-ROM icon in Computer or My Computer.
  • Page 17 Click Easy Install. The drivers, application software, and on-screen manuals are installed. • If you want to select particular items to install, click Custom Install. Haga clic en Instalación simple (Easy Install). Se instalarán los controladores, el software de aplicación y los manuales en pantalla. •...
  • Page 18 USB Port Puerto USB When the Printer Connection screen appears, connect the printer to the computer with a USB cable. After connecting the cable, TURN ON THE PRINTER. The USB Port is located on the right side at the back of the printer.
  • Page 19 When the Start Print Head Alignment screen appears, click Align Print Head. Click OK in the subsequent message. Print Head Alignment takes about 3 minutes to complete. Do not open the Top Cover (D) while printing. Cuando aparezca la pantalla Iniciar alineación de cabezales de impresión (Start Print Head Alignment), haga clic en Alinear cabezales de impresión (Align Print Head).
  • Page 20 If the serial number is not displayed on the registration screen, input the number found inside the printer. Si el número de serie no aparece en la pantalla de registro, introduzca el que viene en el interior de la impresora. •...
  • Page 21 For Windows Solution Menu EX starts. For Macintosh Solution Menu EX starts when clicking OK in the Canon Solution Menu EX dialog. Remove the Setup CD-ROM and keep it in a safe place. • The buttons displayed on Solution Menu EX may vary depending on the country or region of purchase.
  • Page 22 Para conocer todos los detalles sobre Solution Menu EX, consulte el manual en pantalla: Guía básica. How to access Solution Template Click Canon Web Service, then click this icon to access the website containing free printing materials exclusive for the printer. (Internet connection is required.)
  • Page 23 Use Easy-WebPrint EX to easily print web pages in Internet Explorer (Windows) or Safari (Macintosh). Some of its features include: • Printing a web page by reducing its size to fit the paper width automatically without cropping edges. • Printing only the pages you want by selecting them from preview. •...
  • Page 24 Para conocer todos los detalles, consulte “4 Carga del papel” en la página 11. Start Solution Menu EX from the Canon Solution Menu EX icon on the desktop (Windows) or on the Dock (Macintosh), click Photo Print, then click Photo Print (C).
  • Page 25 Click Select Paper, then select the Select a folder containing images, then select an image you want to print. Paper Size and Media Type settings that match the loaded paper. When an image is selected, the number of copies is set to “1”. Seleccione una carpeta que contenga Haga clic en Seleccionar papel imágenes y, a continuación seleccione...
  • Page 26 Windows: Operation can only be guaranteed on a PC with Windows 7, Windows Vista or Windows XP pre- installed. • Windows: Uninstall software bundled with the Canon inkjet printer before upgrading from Windows Vista to Windows 7, then, install the bundled software again. •...
  • Page 27 Windows: sólo se garantiza el funcionamiento en un PC con Windows 7, Windows Vista o Windows XP preinstalado. • Windows: desinstale primero el software incluido con la impresora de inyección de tinta Canon antes de actualizar de Windows Vista a Windows 7 y, a continuación, vuelva a instalar el software. •...
  • Page 28: Getting Help From Canon

    4548B001 CLI-226C 4547B001 PGI-225PGBK 4530B001 CLI-226Y 4549B001 Call 1-800-OK-CANON to locate a dealer near you, or visit the Canon online store at www.shop.usa.canon.com CANON U.S.A. INC. One Canon Plaza, Lake Success, NY 11042 U.S.A. www.usa.canon.com QT5-3425-V01 XXXXXXXX Ayuda de Canon Soporte técnico por correo electrónico —...
