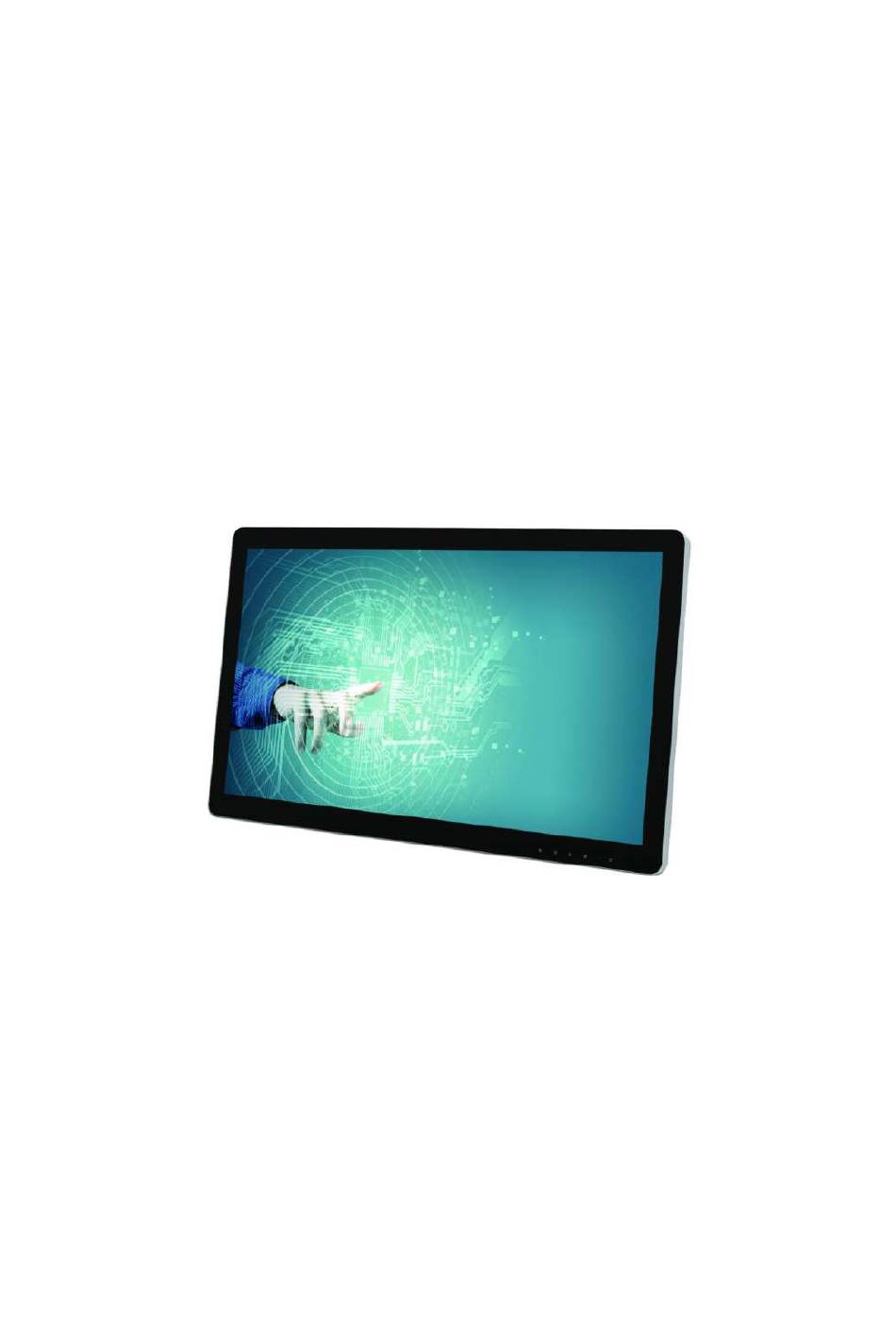

- Page 1 LEAD-PPC-2150-X/ LEAD-PPC-2360-X Panel PC 21.5"/ 23.6” Entry Level Panel PC User's Manual Version 1.0 Copyright © PORTWELL, Inc., 2021. All rights reserved. All other brand names are registered trademarks of their respective owners.
-
Page 2: Table Of Contents
Preface Table of Contents How to Use This Manual Chapter 1 System Overview ......................1 1.1 Introduction ......................1 1.2 Check List .......................2 1.3 Product Specification ....................3 1.4 Mechanical Dimension ..................4 1.5 Safety Instruction ....................6 1.5.1 Electrostatic Discharge (ESD) ..............7 1.5.2 Grounding Method ..................7 1.5.3 Instructions for the Lithium Battery ............8 1.5.4 FCC Statement ....................8 1.5.5 Electromagnetic Compatibility ..............8... -
Page 3: How To Use This Manual
The vendor may make supplement or change in the products described in this document at any time. Portwell, Inc. clearly informs the users that this manual only encloses a general description of technical processes and instructions which may not be applicable in every single case. - Page 4 Preface Revision History Revision Date Details of Change(s) V1.0 2021/8/17 Initial Release...
-
Page 5: Chapter 1 System Overview
® x5-E3930 processor (formerly Apollo Lake) mainly for semi-industrial applications. Portwell specially builds two sizes: 21.5”/ 23.6”, two volt of DC input: 12V/ 24V and also three OS: Win 10, Android, Linux Ubuntu for LEAD-PPC series product intend to fit various application in automation, digital signage, smart retail, kiosk and public infotainment. -
Page 6: Check List
Check List The LEAD-PPC-2150-X/ LEAD-PPC-2360-X Panel PC package covers the following items: Essential One LEAD-PPC series Panel PC Panel Size, spec Model name 21.5 inch, 12V input LEAD-PPC-2150-A 21.5 inch, 24V input LEAD-PPC-2150-B 23.6 inch, 12V input LEAD-PPC-2360-A 23.6 inch, 24V input... -
Page 7: Product Specification
Operating Humidity 0% ~ 95% -20°C ~ 60°C Storage Temperature Storage Humidity 0% ~ 95% LEAD-PPC-2150-X: 521.9(W) x 321.4(H) x 44.3(D) mm Dimensions LEAD-PPC-2360-X: 561.9(W) x 353.4(H) x 43(D) mm Mounting (mm) Standalone; VESA Mount 75 x 75 Certificate CE/ FCC Class B, VCCI Conformity... -
Page 8: Mechanical Dimension
1.4 Mechanical Dimension Front and side view of LEAD-PPC-2150-X Back view of LEAD-PPC-2150-X... - Page 9 Front and side view of LEAD-PPC-2360-X Back view of LEAD-PPC-2360-X...
-
Page 10: Safety Instruction
Make sure the unit has proper ventilation. All plugs on the connection cables must be screwed or locked to the housing. LEAD-PPC-2150-X/ LEAD-PPC-2360-X Panel PC is designed to be used on the desk or upright with the I/O interfaces downwards. -
Page 11: Electrostatic Discharge (Esd)
PORTWELL, Inc. Maintenance or repair on the open unit may only be operated by specialists or technicians qualified and authorized by PORTWELL, Inc. and familiar with the related hazards. When accessing internal components, users must switch off the unit and disconnect it from the power source. -
Page 12: Instructions For The Lithium Battery
1.5.3 Instructions for the Lithium Battery Caution: Please contact. PORTWELL, Inc directly. Prohibit replace by user Do not throw away used CMOS batteries to domestic waste. Throw away the battery according to the local regulations pertaining to the disposal of these special materials (e. -
Page 13: Chapter 2 System Installation
System Installation Chapter 2 System Installation This chapter provides you with instructions to set up your LEAD-PPC-2150-X/ LEAD-PPC-2360-X Series Panel PC. Definitions and locations of all the interfaces are described so that you can easily configure your system. 2.1 I/O Interfaces 2.1.1 Front View... -
Page 14: Rear View
The true flat touch screen surface is subject to burning and scaring from direct heat sources such as lighters or cigarettes. The front display is against water and dust (IP65). The touch screen built in LEAD-PPC-2150-X/ LEAD-PPC-2360-X can resist the following chemicals such as acetone, methylene chloride, methyl ethyl ketone, isopropyl alcohol, hexane, unleaded gas, diesel fuel, motor oil vinegar, cooking oil, saline water, and so on. -
Page 15: Vesa Mount
System Installation ® 2.1.3 VESA Mount The Panel PC can install with VESA 75x75 compliant adapter plates in order to be ® mounted on a wall. M4*10L screws must be used to fix the system onto the wall mount adapter plate. -
Page 16: Chapter 3 Bios Setup Information
BIOS Setup Information Chapter 3 BIOS Setup Information LEAD-PPC-2150-X/ LEAD-PPC-2360-X Panel PC adopts MEDB-1002 mother board. MEDB-1002 is equipped with the AMI BIOS stored in Flash ROM. These BIOS has a built-in Setup program that allows users to modify the basic system configuration easily. -
Page 17: Main
BIOS Setup Information 3.2 Main Use this menu for basic system configurations, such as time, date etc. BIOS Information, Memory Information These items show the firmware and memory specifications of your system. Read only. System Date The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. -
Page 18: Configuration
BIOS Setup Information 3.3 Configuration Use this menu to set up the items of special enhanced features. - Page 19 BIOS Setup Information CPU configuration CPU Configure the specific active core(s) and advanced processor management technologies. Active Processor Cores Number of cores to enable in each processor package. The choice: Disabled(Default). Enabled. Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vander pool Technology.
- Page 20 BIOS Setup Information Chipset Configuration Configuration Chipset feature. HD-Audio Support Enable or Disable the HD-Audio support. The choice: Disabled. Enabled(Default). 8254 Clock Gating Enable or Disable the 8254 Clock Gating The choice: Disabled(Default). Enabled.
- Page 21 BIOS Setup Information LAN Configuration Configuration on board LAN device. LAN Controller 1 Enable or Disable LAN Controller 1 (PCI Express Port 3). The choice: Disabled. Enabled(Default). LAN Controller 2 Enable or Disable LAN Controller 2 (PCI Express Port 4). The choice: Disabled.
- Page 22 BIOS Setup Information Graphic Configuration Configure Graphics Setting. DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory sized used by the Internal Graphic Device Choices: 64M(Default), 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M,416M, 448M, 480M, 512M. GOP Driver Enable GOP Driver will unload VBIOS;...
- Page 23 BIOS Setup Information PCI/PCIE Configuration PCI , PCI –X and PCI Express Setting.
- Page 24 PCI Express Configuration Port 6 Enable or Disable the PCI Express Port 6 in the Chipset. Choices: Enable, Disable(Default). Noticed: PCI Express Port 6 control the Wi-Fi/ Bluetooth function, if your LEAD-PPC-2150-X/ LEAD-PPC-2360-X equipped with Wi-Fi/ Bluetooth module, please enable PCI Express port 6.
- Page 25 BIOS Setup Information SATA Configuration SATA device Options setting. SATA Controller Enable or Disable the Chipset SATA controller. Choices: Disabled, Enabled(Default). SATA Speed Selection Select SATA interface speed. Choices: Auto. Serial-ATA Port 0 Enable or Disable Serial ATA Port 0. Choices: Disabled, Enabled(Default).
- Page 26 BIOS Setup Information USB Configuration USB Configuration Parameters. USB Port 0 Enable/Disable USB Port 0. Choices: Enable(Default), Disable. USB Port 1 Enable/Disable USB Port 1. Choices: Enable(Default), Disable. USB Port 2 Enable/Disable USB Port 2. Choices: Enable(Default), Disable. USB Port 3 Enable/Disable USB Port 3.
- Page 27 BIOS Setup Information USB Port 5 Enable/Disable USB Port 5. Choices: Enable(Default), Disable. USB 3.0 Port 1 Enable/Disable USB 3.0 Port 1: External USB 3.0 port. Choices: Enable(Default), Disable. USB 3.0 Port 2 Enable/Disable USB 3.0 Port 2: External USB 3.0 port. Choices: Enable(Default), Disable.
- Page 28 BIOS Setup Information Power Control Configuration System Power Control Configuration Parameters. Enable Hibernation Enable or disable System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. Choices: Disabled, Enabled(Default). ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.
- Page 29 BIOS Setup Information Super IO Configuration System Super IO Chip Parameters. Serial Port 1 Configuration Enable or Disable Serial Port 1(COM) IO=3F8H; IRQ=4. Choices: Disabled, Enabled(Default). UART mode Set Current UART mode RS232, RS485, RS422. Choices: RS232(Default), RS485, RS422. Serial Port 2 Configuration Enable or Disable Serial Port 2(COM) IO=2F8H;...
- Page 30 BIOS Setup Information UART mode Set Current UART mode RS232, RS485, RS422. Choices: RS232(Default), RS485, RS422. Serial Port 4 Configuration Enable or Disable Serial Port 4(COM) IO=3E8H; IRQ=11. Choices: Disabled, Enabled(Default). UART mode Set Current UART mode RS232, RS485, RS422. Choices: RS232(Default), RS485, RS422.
-
Page 31: Boot
BIOS Setup Information 3.4 Boot Use this menu to specify the priority of boot devices. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Choices: Default [2]. Bootup NumLock state Select the keyboard NumLock state. Choices: On(Default), Off. - Page 32 BIOS Setup Information CSM Support Enabled/Disabled CSM Support. Choices: Disabled, Enabled(Default). OS Selection OS Selection Choices: Default(Default), Others, Legacy system, Intel Linux. Full Screen Logo Enables or Disables Quiet Boot option and Full screen Logo. Choices: Disabled(Default), Enabled. Boot mode selection Select boot mode LEGACY/ UEFI Choices: LEGACY(Default)/ UEFI Boot Option #1...
-
Page 33: Save And Exit
BIOS Setup Information 3.5 Save and Exit Save Changes and Reset Reset the system after saving the changes. Pressing <Enter> on this item asks for confirmation: Save configuration and reset. - Page 34 BIOS Setup Information Discard Changes and Exit Reset system setup without saving any changes. Pressing <Enter> on this item asks for confirmation: Reset without saving. Restore Defaults Restore/Load Default values for all the setup options. Pressing <Enter> on this item asks for confirmation: Load Optimized Default.
-
Page 35: Chapter 4 Important Instructions
4.2 Exclusion of Accident Liability Obligation PORTWELL, Inc. shall be exempt from the statutory accident liability obligation if users fail to abide by the safety instructions. 4.3 Liability Limitations / Exemption from the Warranty Obligation In the event of damage to the system unit caused by failure to abide by the hints in this manual and on the unit (especially the safety instructions), PORTWELL, Inc. -
Page 36: Chapter 5 Frequent Asked Questions
Step1. Execute the “Update.zip” file to root of the bootable USB pen drive. You can get the “Update.efi” and “Readme.txt” two files. Step2. Insert your USB pen drive in USB port of the LEAD-PPC-2150-X/ LEAD-PPC-2360-X Panel PC and press the power button to power on. - Page 37 Frequent Asked Questions Step4. Boot to EFI-Shell mode by choosing below item. Step5. Type “map –r” command to show the mapping table and find the right location of removable USB pen driver. (in this case is the right location is “fs3”)
- Page 38 Frequent Asked Questions Step5. Type “fs3:” command to switch to the root of the USB pen drive. And type “dir” to find the directory of fs3. Step6. Type the ”update” command to start flash BIOS processes. Step7. Press “Ctrl+Alt+Del” to reboot when it finish all update process.
