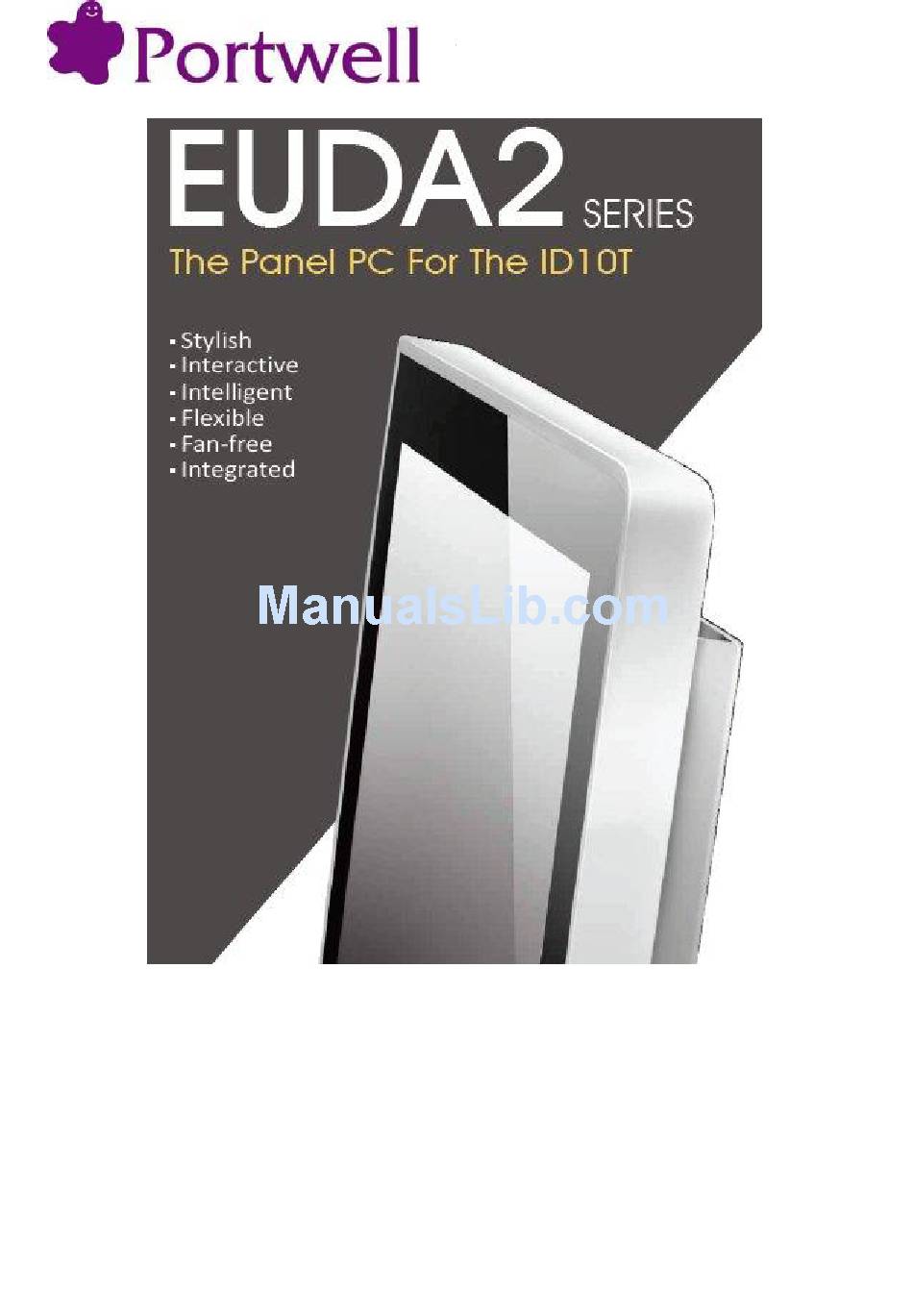

User's Manual
Version 2.1
Copyright © Portwell, Inc., 2014. All rights reserved.
All other brand names are registered trademarks of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EUDA 2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Portwell EUDA 2 Series

Summary of Contents for Portwell EUDA 2 Series

  • Page 1 User’s Manual Version 2.1 Copyright © Portwell, Inc., 2014. All rights reserved. All other brand names are registered trademarks of their respective owners.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ....................... 3 1.1 Symbols used in this manual ..................4 2. Important Instructions ....................5 2.1 Note on the Warranty ....................5 2.2 Exclusion of Accident Liability Obligation ..............5 2.3 Liability Limitation / Exemption from the Warranty Obligation ......... 5 3.
  • Page 3 Revision History Revision Date Description of Change(s) 2012/10/30 Initial Release 2013/02/05 Update EUDA2-S1821 information in the content 2014/08/08 Update chapters of driver installation guide & FAQ EUDA2 Series 12”/15”/18.5” Panel PC User’s Manual (ver2.1) 2...

  • Page 4: Introduction

    All rights reserved. None of this document shall be duplicated, stored in a retrieval system, or transmitted by all means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Portwell, Inc. No copyright or patent liability is assumed with respect to the use of the information included herein.

  • Page 5: Symbols Used In This Manual

    Portwell, Inc. does not accept any liability for any printing errors or other inaccuracies in the manual unless it can be proven that Portwell, Inc. is aware of such errors or inaccuracies or that Portwell, Inc. overlooks these as a result not due to gross negligence.

  • Page 6: Important Instructions

    2.2 Exclusion of Accident Liability Obligation Portwell, Inc. shall be exempt from the statutory accident liability obligation if users fail to abide by the safety instructions. 2.3 Liability Limitation / Exemption from the Warranty Obligation In the event of damage to the PPC unit caused by failure to abide by the hints in this manual and on the unit (especially the safety instructions), Portwell, Inc.

  • Page 7: Safety Instructions

    ◎When accessing to internal components, users must switch off the unit and disconnect it from the power source. ◎Only original accessories (or suggested optional parts) approved and supplied by Portwell, Inc. may be used. ◎Assumption of safe operation no longer possible must be taken, - if the unit has obvious damage or - if the unit no more functions.

  • Page 8: Grounding Methods

    1. Deliver printed circuit boards in electrostatic-safe containers such as cartons, boxes or anti-static bags. 2. Keep electrostatic-sensitive parts in their containers until they reach an electrostatic-free station. 3. Follow adequate grounding when a sensitive PCB, components, or assemblies are touched. 4.

  • Page 9: Scope Of Delivery

    Scope of Delivery 4. Scope of Delivery Panel PC system Panel 12” EUDA2-S1220 Panel 15” EUDA2-S1520 The label (product designation, P/N and serial number) is located on the rear side of the device. Panel 18.5” EUDA2-S1821 (wide screen 16:9) The label (product designation, P/N and serial number) is located on the rear side of the device.
  • Page 10 Optional accessories Power cord (US) Power cord (EU) AC/DC adapter (12V/60W) Power adaptor to 3 pin terminal block cable Selectable I/O combination for EUDA2-S1220 1x RS-232/422/485 and 1x Line-out 2x USB ports and 1x Line-out Selectable I/O combination for EUDA2-S1520 & EUDA2-S1821 1x RS-232/422/485, 2x USB ports and 1x Line-out 2x RS-232/422/485, 1x RS-232 EUDA2 Series 12”/15”/18.5”...

  • Page 11: Product Description

    Product Description 5. Product Description The EUDA2 Panel PC Series system, EUDA2-S1220/EUDA2-S1520/EUDA2-S1821, is a Human Machine Interface (HMI) system with integrated a projected capacitive multi-touch screen designed for harsh industrial applications. The rugged design with a brilliant mechanical firmness demonstrates the superior qualities of a Panel PC suitable for the operation in strict industrial environment.
  • Page 12 Outlook of the Operator Interface Computer EUDA2 Panel PC Series system is below. Fig 5-1: Top view of the EUDA2-S1220 Panel PC System (12”) Fig 5-2: Fig 5-4: Fig 5-3：Front view of the EUDA2-S1220 Panel PC System (12”) Right view Left view Fig 5-5: Bottom view of the EUDA2-S1220 Panel PC System (12”) Fig 5-6: Rear view of the EUDA2-S1220 Panel PC System (12”)
  • Page 13 Fig 5-7:Top view of the EUDA2-S1520 Panel PC System (15”) Fig 5-8: Fig 5-10: Fig 5-9: Front view of the EUDA2-S1520 Panel PC System (15”) Right view Left view Fig 5-11:Bottom view of the EUDA2-S1520 Panel PC System (15”) Fig 5-12: Rear view of the EUDA2-S1520 Panel PC System (15”) EUDA2 Series 12”/15”/18.5”...
  • Page 14 Fig 5-13:Top view of the EUDA2-S1821 Fig 5-14: Fig 5-16: Fig 5-15: Front view of the EUDA2-S1821 Right view Left view Fig 5-17:Bottom view of the EUDA2-S1821 Fig 5-18: Rear view of the EUDA2-S1821 EUDA2 Series 12”/15”/18.5” Panel PC User’s Manual (ver2.1) 13...

  • Page 15: Front Side View

    5.1 Front Side View Fig 5-19: Front view of the EUDA2-S1520 Fig 5-20: Front view of the EUDA2-S1821 True Flat touch window for the 12”/15”/18.5” 12”/15”/18.5” TFT-LCD display with Projected display Capacitive Multi-Touch Screen All versions are suitable for installation in an instrument panel or other cabinet. On the front side are located: ◎...

  • Page 16: Bottom View

    5.1.2 Front Panel Care and Cleaning Mild detergent and water, or isopropyl alcohol is recommended for cleaning. Use of solvents with strong acidity or alkalinity, which could react with the paint or printed color or plastic, should be avoided. The True Flat touch screen surface is subject to burning and scaring from direct heat sources such as lighters or cigarettes.

  • Page 17: Power, Control Indicators, Reset And Grounding

    5.3. Power, Control Indicators, Reset and Grounding 5.3.1 Power Connector The DC Power connector (refer to Fig.5-21/22/23, pos.8) provides the power connection of the Operator Interface Computer EUDA2 Panel PC Series system to the main power source via the DC power cable or the AC/DC adapter.
  • Page 18 Fig 5-25: I/O view of the EUDA2-S1520 Fig 5-26: I/O view of the EUDA2-S1821 2 x USB 1.1/2.0 (Expansion；Default) 1 x HDD LED 2 x RS-232/422/485(Expansion；Default) 1 x Power LED 1 x DVI-I port 1 x 3-pin Terminal block connector 2 x USB 1.1/2.0 ports 1 x System Power Switch 2 x Gigabit Ethernet ports...

  • Page 19: Top View

    5.4 Top View Fig 5-27:Top view of the EUDA2-S1220/EUDA2-S1520 Fig 5-28:Top view of the EUDA2-S1821 HDD Bracket & HDD Tray Screws that secure the cover on the top side Front panel with seal on the rear side Panel Mounting Slots with installed mounting clamp and screw The Operator Interface Computer EUDA2 Panel PC Series system, EUDA2-S1220/EUDA2-S1520/EUDA2-S1821, is configured with an internal 2.5"...

  • Page 20: Rear View

    5.6 Rear View Fig 5-31: Rear view of the EUDA2-S1220/EUDA2-S1520 Fig 5-32: Rear view of the EUDA2-S1821 I/O interface at the rear side IPC back Cover Septum assembly module Fins on back cover VESA® 75/100 compliant 5.7 Rear View The EUDA2 Panel PC Series system, can be connected to a DC power source via a 3 pin terminal block connector(female, included) and optionally to an AC power source via an AC/DC adapter (optional, not included).

  • Page 21: Accessing Internal Components

    Fig.5-32:External AC/DC 12V/60W adapter Fig.5-33:Power adaptor to 3 pin terminal block cable Electrical Specifications for the AC/DC Adapter AC Input DC Output 90-264V 12V DC 1.5A ；50-60Hz For connecting to the system and power refer to “Connecting to Power”. Cable Out: Non-Shielded, with one ferrite core bonded. 5.8.

  • Page 22: System Installation

    System Installation 6. System Installation For Technical Support for Portwell Panel-PC hardware, contact your local Portwell Distributors or Portwell’s Technical Support. For more information, please refer to the “Technical Support” section in this manual. 6.1 H/W Installation 6.1.1 Connector & Jumping Setting You may configure the EUDA2 Panel PC Series system, EUDA2-S1220/EUDA2-S1520/EUDA2-S1821, to match the needs of your application by setting Jumpers on main board.
  • Page 23 Figure 6-3: Top-side Jumper and Connector Locations (Daughter board) (default) Item Description Connector(Main board) Case Open Detect Connector (1*2 Pin wafer/2mm) Compact Flash Type II Connector LCD LVDS Back Light Adjust Connector (3*2 Pin /2.54mm) SATA Port 0 Connector (Single Right Angel) LPC Debug Card Connector (2*5Pin cut Pin 9 Header /2mm) GPIO Connector (2*5 Pin Header/2mm) Battery Connector...
  • Page 24 J1: Case Open Detect Connector (1*2 Pin wafer/2mm) PIN NO. DESCRIPTION Case Open sensor J2: Compact Flash Type II Connector J4: LCD LVDS Back Light Adjust Connector (3*2 Pin /2.54mm) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PWM Inverse DOWN J5: SATA Port 0 Connector (Single Right Angel) J6: LPC Debug Card Connector (2*5 Pin cut Pin 9 Header /2mm) J7: GPIO Connector (2*5 Pin Header/2mm) PIN NO.
  • Page 25 YBP1 YBM1 YBP2 YBM2 YBP3 YBM3 CLKBP CLKBM DDCPCLK DDCPDATA +LVDS +LVDS +LVDS J17: Touch Panel Connector (1*5 Pin Header/2.54mm) IN NO. DESCRIPTION Probe J18: USB Port 4 Connector (1*4 Pin Wafer/2mm) PIN NO. DESCRIPTION + 5V USB_D- USB_D+ J19: USB Port 4 Connector (1*4 Pin Wafer/2mm) PIN NO.
  • Page 26 PIN NO. DESCRIPTION Short Short +12V Low Active JP2: LCD Panel Voltage Setup PIN NO. DESCRIPTION Voltage Short +3.3V TFT LCD(Default) Short +5V TFT LCD +12V TFT LCD JP3: CMOS Setup PIN NO. DESCRIPTION Normal (Keep CMOS Setup) Clear CMOS Setup JP4: COM1 Pin 9 Function Setup PIN NO.
  • Page 27 Short LED LCD Short CCFL LCD Brightness Limit Short LED LCD Brightness Limit SW1: LCD Resolution Setup Figure 6-4: Diagram of adjusting to resolution 800 x 600 PIN NO. Resolution Port 800 x 600 (18bit) Single 1024 x768 (18bit) Single 1024 x768 (24bit) Single 1280 x 768 (18bit)
  • Page 28 J2 RS-232 Mode Setup PIN No. Signal Description PIN No. Signal Description Data Carrier Detect (DCD) Receive Data (RXD) Transmit Data (TXD) Data Terminal Ready (DTR) Data Set Ready (DSR) Request to Send (RTS) Clear to Send (CTS) Ring Indicator (RI) J2 RS-422 Mode Setup PIN No.
  • Page 29 6.1.3 Insert Memory module The EUDA2 Panel PC Series system, EUDA2-S1220/EUDA2-S1520/EUDA2-S1821, is fully integrated at the system assembly line before shipment. It’s not necessary for end users to do any assembly unless installing the optional HDD, RAM, CF and/or Power Input. Installation of these optional components is described below. 1.
  • Page 30 5. Finish installation and screw the upper 6. Inside view of installed HDD on PPC system cover on PPC back in Figure 6-8: Installation of HDD 6.1.5 Insert CF Card 1. Unscrew the side bracket of back cover 2. Remove the side bracket 3.

  • Page 31: Panel & Vesa Mounting

    AC/DC Power adaptor installation (Optional) 2. Connect 3-pin terminal block connector to PPC 1. Screw 3 pin terminal block cable to adaptor through AC in with adaptor Fig.6-11: AC/DC 12V/60W adapter supplied with the EUDA2-S1821 6.2 Panel & VESA Mounting 6.2.1 Panel Mounting (EUDA2-S1821 only) The 18.5”...

  • Page 32: Getting Started

    In order to ensure NEMA 4 front sealing against dust and water, mount the system on a non-textured surface. Before you install 18.5” EUDA2 Panel PC, EUDA2-S1821, into a panel or a sub-frame for industrial cabinet, verify the perfect condition of the seal at the rear of the front plate. The seal has to be in place without injury/defects and dirt.
  • Page 33 Fig. 6-14：Setup Program Initial Screen (Main) AMI BIOS, CPU, System Memory These items show the firmware and hardware specifications of your system. Read only. System Date The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Time The time format is <Hour>...
  • Page 34 PCI/PCIE Configuration PCI Latency Timer Select value in units of PCI clocks for PCI device latency timer register. The choice: 32 (Default), 64, 96, 128, 160, 192, 224, 248 VGA Palette Snoop VGA Palette Registers Snooping. The Choice：Enabled or Disabled (Default). PERR# Generation PERR# PCI Device to Generation PERR#；The Choice：Enabled or Disabled (Default).
  • Page 35 ACPI Sleep State Select for Advanced ACPI Configuration. This item specifies the power saving modes for ACPI function. If your operating system supports ACPI, you can choose to enter the Standby mode in S1 (POS) or S3 (STR) fashion through the setting of this field. The Choice: [S1 (POS)] The S1 sleep mode is a low power state.
  • Page 36 Fig. 6-18：Restore AC Power Loss SLP S4 Assertion Width Select a minimum assertion width of the SLP_S4# signal The Choice：1-2 Seconds (Default); 2-3 Seconds; 3-4 Seconds; 4-5 Seconds S5 RTC Wake Setting Wake system with Fixe System wakes on alarm event. When enabled System will wake on the hr:min:sec. specified. The Choice：Enabled or Disabled (Default) Wake up by ring Wake up by ring from S5.The Choice：Enabled or Disabled (Default)
  • Page 37 Fig. 6-19：CPU Configuration LAN Configuration LAN Wake Up This field specifies whether the system will be awakened from the S5 .power saving mode when activity or input signal of onboard LAN is detected. The choice: Enabled or Disabled (Default). Launch PXE OpROM Use this option to select Enabled or Disabled (Default) option for Legacy Network Devices.
  • Page 38 Chipset Configuration These items show the advanced specifications of your CPU. Read only. Fig. 6-21：Chipset Configuration Azalia Controller Azalia Controller: HD Audio (Default). Azalia PME Enable Power management capability of Audio Controller. The choice: Enabled, Disabled (Default). Azalia Vci Enable Azalia Supports 1 extended VC, which, When enabled, overrides ICH VCp settings.
  • Page 39 640 x 480 24Bit 800 x 600 24Bit 1024 x 768 24Bit 1280 x 1024 24Bit Note: The LVDS Panel Type setting in BIOS setup is invalid due to Hardware design. Please refer to fig.6-4 for different resolution setting by SW1 of board. Panel Scaling Select the LCD Panel Scaling option used by the Internal Graphic Device.
  • Page 40 Fig. 6-22：Integrated Video Configuration IDE Configuration It uses a separate sub menu to configure each hard disk drive. Launch Storage OpROM The choice: Disabled, Enabled (Default). SATA Controller(s) The choice: Disabled, Enabled (Default). Configure SATA as The choice: IDE Only (Default). Fig.
  • Page 41 USB Configuration Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. Disable option will keep USB devices available only for EFI application. The choice: Enabled or Disabled (Default). EHCI Hand-Off This is a workaround for OS without EHCI hand-off support. The EHCI ownership change should claim by EHCI driver.
  • Page 42 WDT Timer: WDT Timer; EHCI driver. The choice: Enabled or Disabled (Default). Serial Port (Selectable COM port mode through BIOS ) Enable (Default) or disable Serial Port (COM). Device Setting ：IO=3F8h；IRQ=4(Default)； Change Setting：Auto (Default)； Mode：Select for COM port (COM1 & COM2 only) mode RS-232 (Default), RS-422 or RS-485. Device Mode：Standard Serial Port Mode (Default) ;...
  • Page 43 6.4.4 Boot Setup Prompt Timeout Number of seconds to wait for setup activation key.65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the Keyboard NumLock state. The choice: On, Off (Default). Quiet Boot Use this option to select the screen display when the system boots. The choice: Disabled Normal POST messages displayed (Default).
  • Page 44 6.4.5 Security Use the Security option to set Administrator and user passwords. If only the administrator’s password is set, there will only be access to Setup and will only asked for when entering Setup. If only the user’s password is set, then this is power-on password and must be entered to boot or enter Setup. In setup the user will have Administrator Rights.
  • Page 45 Fig. 6-29：Save and Exit EUDA2 Series 12”/15”/18.5” Panel PC User’s Manual (ver2.1) 44...

  • Page 46: Driver Installation And Touch Usage Guide

    Driver Installation and Touch Usage Guide 7. Driver Installation and Touch Usage Guide 7.1 Driver Installation 7.1.1 Chipset Component Driver The chipset on the EUDA2 Panel PC Series system is an Intel new chipset that a few old operating systems might not be able to recognize.
  • Page 47 7.1.2 Intel® Integrated GMCH Graphics Driver Installation The Intel ® Atom™ Processor D2550 contains an integrated graphics core, the Intel ® GMA 3650 graphics controller. This combination makes EUDA2 Panel PC Series system an excellent piece of multimedia hardware, EUDA2-S1220/EUDA2-S1520/EUDA2-S1821 supports VGA, DP and also LVDS out put. The VGA port supports analog displays.
  • Page 48 Drivers Support Please find Intel® GMA 3650 driver in EUDA2&FUDA Panel PC Series Driver CD Win7 (32bit)-title. The driver supports Windows 7 only. 7.1.3 Intel Gigabit Ethernet Driver Installation Drivers Support Please find Intel 82574L Ethernet driver in EUDA2&FUDA Panel PC Series CD Win7 (32bit)-title. The driver supports Windows 7.
  • Page 49 LED Indicator The EUDA2 Panel PC Series system, EUDA2-S1220/EUDA2-S1520/EUDA2-S1821, provides two LED indicators to report Intel 82574L Gigabit Ethernet interface status. Please refer to the table below as a quick reference guide. Operation of Ethernet Port 82574L Color Name of LED Linked Active Status LED...
  • Page 50 7.1.4 Audio Controller Driver Installation Please find Realtek ALC886-GR Audio driver form EUDA2&FUDA Series Driver CD Win7 (32bit)-title. The driver supports Windows 7. EUDA2 Series 12”/15”/18.5” Panel PC User’s Manual (ver2.1) 49...

  • Page 51: Device Function Verification

    7.1.5 Touch Controller Driver Installation P-CAP is support by Windows 7 The P-CAP controller can be detected by Windows 7 without driver installation and calibration. You can use your finger to make sure touch point is exact as below. 7.2 Device Function Verification After all of driver installation, please make sure all of devices on the EUDA2 Panel PC Series system, EUDA2-S1220/EUDA2-S1520/EUDA2-S1821, are without yellow mark exclamation on device manager and test them according to relative testing tool.

  • Page 52: Windows 7 Gesture For Multi-Touch Demand

    7.3 Windows 7 gesture for multi-touch demand Windows Touch Pack for windows 7 For multi-touch application, please download Windows Touch Pack for windows 7 from the following link to learn more usage of multi-touch. http://www.microsoft.com/en-us/download/details.aspx?id=17368 EUDA2 Series 12”/15”/18.5” Panel PC User’s Manual (ver2.1) 51...
  • Page 53 EUDA2 Series 12”/15”/18.5” Panel PC User’s Manual (ver2.1) 52...

  • Page 54: Technical Data

    Technical Data 8. Technical Data 8.1 Product Specification Model Name EUDA2-S1220 EUDA2-S1520 EUDA2-S1821 Display LCD Size 12” (4:3) 15” (4:3) 18.5” (16:9) Resolution 800 X 600 1024 X 768 1366 X 768 Brightness 450 cd/m 400 cd/m 300 cd/m Contrast Ratio 700:1 700:1 1000:1...

  • Page 55: Mechanical Specification

    Power Power Supply DC 12 ~ 24V input (with 3 pin terminal block connector) Power Consumption 35W(12V); 36W(24V) 39.2W(12V); 40W(24V) 45.1W(12V); 44.6W(24V) (Max) Power Consumption 7.1W(12V); 7.9W(24V) 7.3W(12V); 7.9W(24V) 8.4W(12V); 7.7W(24V) (Min) Environmental 0 ~ 50 ℃；-20~60 ℃；(20~90%, non-condensing) OP /Storage Temp Vibration 1.0G (CF) and 0.5G (HDD) @ Power on testing &...

  • Page 56: Certifications And Standards

    8.3 Certifications and Standards Standards EN 55022/55024：2010 Class A EN 61000-3-2：2006+A2：2009 EN 61000-3-3：2008 AS/NZS CISPR 22：2009+A1:2010 FCC 47 CFR Part 15B, Class A, CISPR：2008 ANSI C63.4：2009, ICES-003 Issues 4:2004,Class A EUDA2 Series 12”/15”/18.5” Panel PC User’s Manual (ver2.1) 55...

  • Page 57: Rma (Return Material Authorization) Service

    2. Describe the behavior or reason of unit failure in order to return. Any returns for credit are subject to a restocking fee. 3. Upon confirmation of a hardware failure or valid cause for return, Portwell will provide a Return Merchandise Authorization (RMA).

  • Page 58: Faqs (Frequent Asked Questions)

    FAQs (Frequent Asked Questions) 10. FAQs (Frequent Asked Questions) Q1: What is the 64-bit Windows 7 support status? Answer: No graphics driver is available for 64-bit Windows 7 on Intel Atom Dual-Core D2550 platform. Q2: What is the Window 8 support status? Answer: No graphics driver is available for Windows 8 on Intel Atom Dual-Core D2550 platform.
  • Page 59 EUDA2 Series 12”/15”/18.5” Panel PC User’s Manual (ver2.1) 58...
