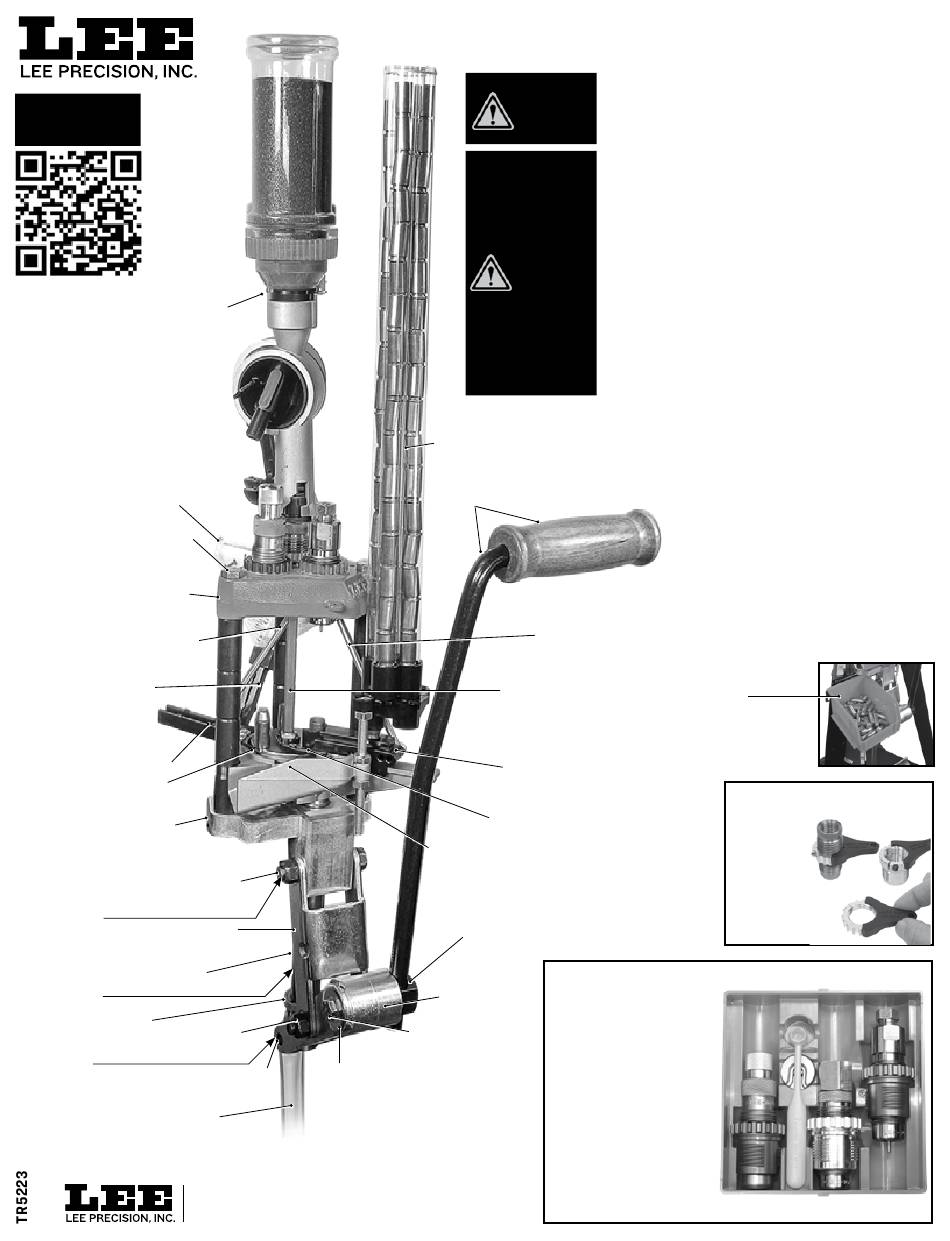

PRO 1000
HELP VIDEOS
Auto-Drum
powder measure
# 90811
FOLDING PRIMER TRAY (1) included
#90606 (2 pack)
5/16-18 x 1 ¼ BOLT
(qty. 3) #FT2886
TOOL HEAD
#TR5031
PRIMER FEED SPRING
# TR5386
PRIMER SLIDER TROUGH & PIN
#92021
PRIMER SLIDER
#BP5079
CASE RETAINER
#PR3691
BASE
# TR3642
LINK BOLT (qty. 2)
# TP2117
LUBRICATION POINT
CONNECTING LINK
#TP2129
RAM
LUBRICATION POINT
PRIMER OUTLET
LINK NUT
# TP3707
# FB1181
LUBRICATION POINT
DISPOSAL TUBE # BP3064
CAP # BP3127
LUBRICATION POINTS= use STP
LEE PRECISION, INC.
4275 Hwy. U · Hartford WI 53027
www.leeprecision.com
(qty. 2)
1 3/16" WASHER
RAM PIN
# OF3609
# OF3221
motor treatment or motor oil.
™
PRO 1000 KIT
I N S T R U C T I O N S
DANGER
CAUTION
Universal Case Feeder
# 90242
ROLLER HANDLE
#90746
CASE FEED SPRING
# PR2118
INDEX ROD
# TR5032
SLIDER BLOCK
#90497
CASE EJECTOR
#PR3691
SHELL PLATE CARRIER
# TR4415
LEVER CLAMP
# OF3662
TOGGLE
(qty. 2)
Kits include new Breech
# OF2853
Lock Die Set. Smart
5/16 –18 X 1 1/4 BOLT
Lock bushings utilize an
# FO2113
integrated o-ring to keep
dies firmly in place, yet
remain finger adjustable.
Color coded for easy
identification. The best
value for Lee Breech Lock
press owners.
Ammunition reloading can be dangerous if done im properly and
can result in serious injury or death.
· Reloading should not be attempted by persons not willing and
able to read and fol low instructions exactly.
· Children should not be permitted to reload ammunition without
strict parental supervision.
· Always wear safety glasses and hearing protection when
reloading and shooting.
· Ammunition loaded with these tools and data should only be
used in modern guns in good condition.
· We do not accept responsibility for ammunition loaded with
these tools or data as we have no control over the manufacture
and storage of components or the loading procedure and
techniques.
· Primers and gun powders, like gasoline and matches, can be
dangerous if improperly handled or misused.
Bin & Bracket
# 90687
Die wrench included
Works on
spline drive
breech lock
bushings
and lock
rings.
Breech Lock Bushing Die Set
See Pg 8
