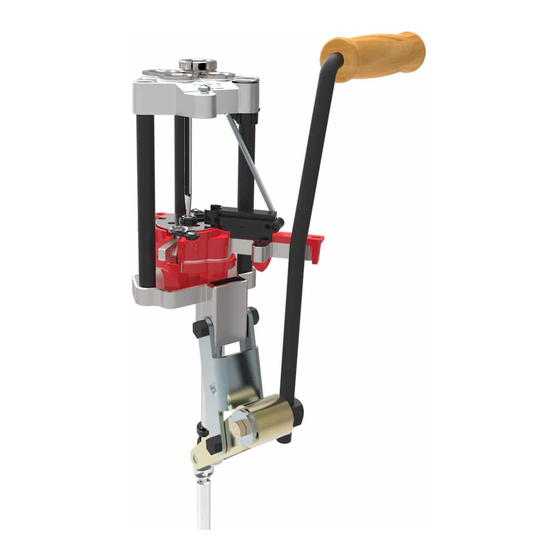

Auto Breech Lock Pro
Refer to safety guidelines and detailed steps in the instruction manual
FOLD
FOLD
2
Re-position handle, tighten securely with �" wrench.
3
Install spent primer tube.
PR2679
quick start guide
1
work bench edge
Press fits directly on LEE Steel
Base Block included with
Reloading Stand #
Bench Plate #
90251.
- OR -
Hold this card against work
bench edge, fold at dotted line,
drill three 17/64" (7mm) holes
in your work bench using this
card as a drill template.
www.leeprecision.com
or
90688
Verify the
handle
passes
completely
through lever
clamp.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lee Precision Auto Breech Lock Pro
Summary of Contents for Lee Precision Auto Breech Lock Pro
- Page 1 Auto Breech Lock Pro quick start guide Refer to safety guidelines and detailed steps in the instruction manual Press fits directly on LEE Steel Base Block included with Reloading Stand # 90688 Bench Plate # 90251. - OR - Hold this card against work bench edge, fold at dotted line, drill three 17/64”...
- Page 2 INDEX ROD INDEX ROD CASE CASE EJECTOR EJECTOR Loosen and remove spline drive breech lock bushing to access index rod. Remove index rod and case ejector. Raise carrier to the mid-stroke With the carrier near position, install shell plate, the bottom of the stroke (handle up), install index lightly tighten clockwise with ¼”...
