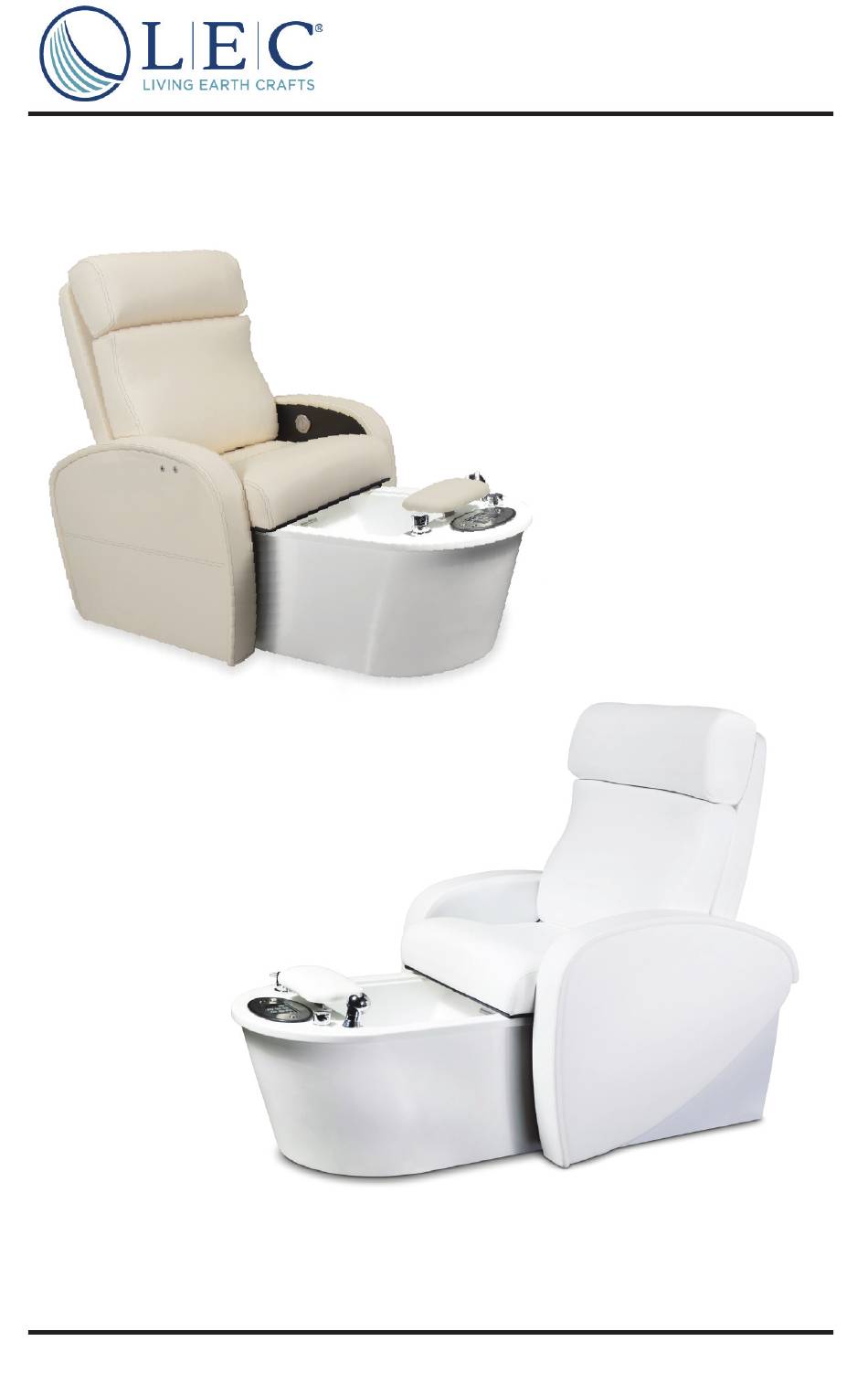

- Page 1 USER MANUAL Contour & Contour LX Pedicure Chairs Contour Contour LX 1-400-0009 • Rev G • 8/28/22 *shown with optional accessories and/or finishes © Living Earth Crafts 2020, All Rights Reserved...
- Page 2 Legal Notice The information provided in this document is intended for informational purposes only and is subject to change without notice. The information provided in this docu- ment should not be construed as a commitment by Living Earth Crafts®. Living Earth Crafts® assumes no responsibility for the ©...
-
Page 3: Table Of Contents
The Contour is designed for licensed therapists and technicians and is intended to be used in a professional spa, salon, or similar commercial environment. While no special training is needed to operate the product, for safety reasons it is important that the instructions contained in this manual are reviewed in detail before the first use. -
Page 4: Section 1: Safety Information
SECTION 1: SAFETY INFORMATION Safety Symbols Indicates an imminently hazardous situation which could result in serious Familiarize yourself with the following or fatal injury. Safety & Warning symbols. They are designed to prevent damage and injury to you, your clients, and your new Earthlite product. - Page 5 SECTION 1: SAFETY INFORMATION • DO NOT reach for any electrical object that has fallen into the water. Unplug immediately. • DO NOT drop or insert anything into jet opening. • DO NOT operate without the complete jet assembly installed or without water filled 1 inch above jets. •...
-
Page 6: Section 2: Product Overview
SECTION 2 : PRODUCT OVERVIEW Pillow Backrest Cushion Back Tilt Control Side Tray Receivers Tub Basin Armrest Door Shroud Light Sprayer/Fill Drain Handle Footrest Control Panel Water Fill Valve *Chair shown with optional finishes... -
Page 7: Product Specifications
SECTION 2 : PRODUCT OVERVIEW Product Specifications Overall Width 32.5” (78.7 cm) Shroud Width 22” (55.8 cm) Shroud Height 15” (38.1 cm) Length (armrest doors open) 73” (185.4 cm) Length (armrest doors closed) 57” (144.8 cm) Armrest Door Height 29.25” (74.3 cm) Seat Height 21”... - Page 8 SECTION 3: OPERATING INSTRUCTIONS Control Panel Operation Your Contour control panel is connected and ready for use. See below for descriptions of each button functionality. For the top row of buttons, push and hold the button until the chair movement stops - this means you have reached the memory position. For the lower set of buttons, push and hold until the desired position is reached.
-
Page 9: Jets & Lights
SECTION 3: OPERATING INSTRUCTIONS Jet System The pipeless “magneti c” system is standard in your pedicure unit. Aft er the basin is fi lled to the proper level, turn jet on by pressing the chrome butt on next to the watever valve marked “JET”. -
Page 10: Water Fill Valve, Drain & Discharge Pump
SECTION 3: OPERATING INSTRUCTIONS Water Fill Valve The water fi ll valve is OFF when pointi ng DOWN. Water dispenses when you pull the valve UP. Hot water is dispensed when the valve is turned to the RIGHT. Cold water is dispensed when the valve is turned to the LEFT. -
Page 11: Side Trays
SECTION 3: OPERATING INSTRUCTIONS Side Trays (Optional) Side trays are a convenient way to offer manicure services in your pedicure chair. Each tray has 2 posts that fit into receivers on the armrest door. See below for installation and storage. Installation Side Tray Receivers... -
Page 12: Relaxor
SECTION 3: OPERATING INSTRUCTIONS Relaxor® Heat & Massage (Optional) The following diagrams illustrate the ease-of-use and functionality that the Relaxor® system provides to you and your clients. RISK OF ELECTRIC SHOCK Keep hand control and all electrical components away from water. Power Lower Back Heat - High Lower Back Heat - Low... -
Page 13: Section 4: Care & Maintenance
SECTION 4: CARE & MAINTENANCE Cleaning & Ongoing Maintenance The following procedures are important guidelines that will help in keep your product clean and trouble free for years. It is extremely important to clean and disinfect every pedicure chair after each pedicure and after the last pedicure of the day. -
Page 14: Tub Cleaning Guide
SECTION 4: CARE & MAINTENANCE Tub Cleaning Guide YOU ARE REQUIRED TO CHECK WITH YOUR STATE BOARD FOR MANDATORY CLEANING AND DISINFECTING REQUIREMENTS AND PROCEDURES The removable wet-end assembly MUST be placed onto the motor housing in the correct position of the jet may be damaged. The wet end housing must fit in the proper groove onto the motor housing. -
Page 15: Troubleshooting
SECTION 4: CARE & MAINTENANCE Troubleshooting This helpful troubleshooting guide will provide you with information about how to recognize a problem with your product, determine possible causes, and find a solution. In the event your specific situation is not covered in this guide, please contact Living Earth Crafts so our technical support department can assist you. -
Page 16: Warranty Information
SECTION 4: CARE & MAINTENANCE Warranty Information Living Earth Crafts (LEC) offers an industry best warranty on all pedicure units. • Motors and controls, actuators, foam and upholstery are warranted for two (2) years, including parts and labor unless otherwise noted. -
Page 17: Electrical Specifications
Total Consumption 11.7 Amps Max 6.1 Amps Max - All Options Consumption - 7.7 Amps Max 4 Amps Max Standard Contour Consumption - Additional 4 Amps (Max) Additional 2.2 Amps (Max) Relaxor Discharge Pump Specification Motor Design Single-phase synchronous motor... -
Page 18: Faqs
Does the Contour have GFI/GFCI built in? There are no GFI/GFCIs built in to the system - we require a GFCI protected grounded circuit to... -
Page 20: Contact Us
Contact Us Living Earth Crafts Hours of operation: 990 Joshua Way Monday - Friday Vista, CA. 92081 8:00 a.m. to 5 p.m. PST (800) 358-8292 (760) 597-2155 Int’l Saturday - Sunday (866) 449-8872 fax Closed info@livingearthcrafts.com Visit us online at: livingearthcrafts.com Follow us on Join us on Follow us on...
